502

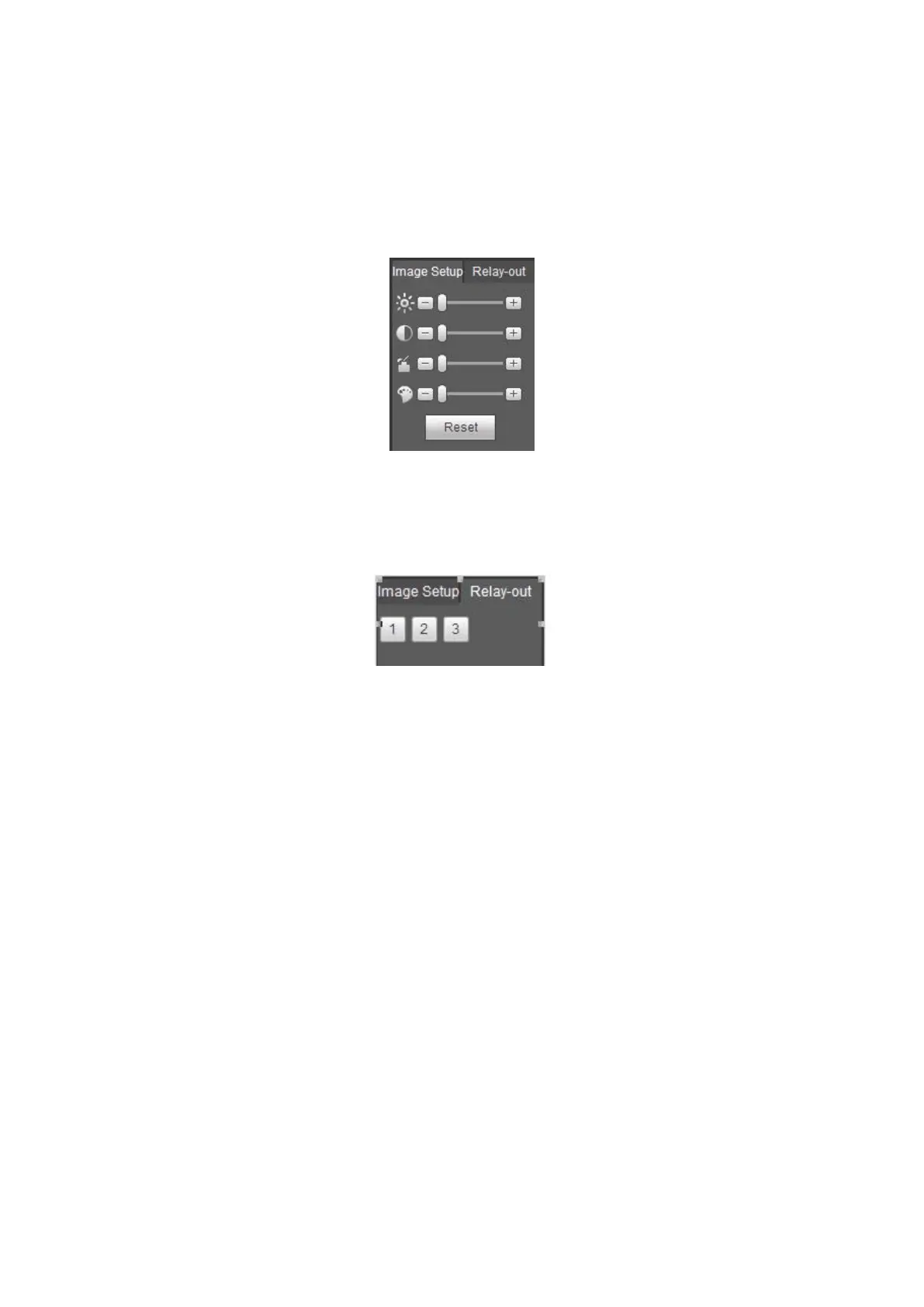

Select one monitor channel video and then click Image button in section 8, the interface is
shown as Figure 5- 19.
5.8.1 Image
Here you can adjust its brightness, contrast, hue and saturation. (Current channel border
becomes green).
Or you can click Reset button to restore system default setup.
Figure 5- 19
5.8.2 Relay output
Here you can enable or disable the alarm signal of the corresponding port. See Figure
5- 20.
Figure 5- 20
5.9 WAN Login
In WAN mode, after you logged in, the interface is shown as below. See Figure 5- 21.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua XVR5108HS and is the answer not in the manual?

Dahua XVR5108HS Specifications

General IconGeneral
Video CompressionH.265+/H.265/H.264+/H.264
Video Output1 HDMI, 1 VGA
USB Interface2 USB 2.0
Power Supply12V DC/2A
Video Channels8 channels
HDD CapacityUp to 6TB
Operating Temperature-10°C to +55°C (+14°F to +131°F)
Audio Input/Output1/1 RCA
Internal HDD1 SATA interface, up to 6TB
Max IP Camera Input12 channels
Recording Resolution1080P/720P
HDMI Output1
VGA Output1
Operating Humidity10%–90% (RH), non-condensing
IP Video Input8+4 channels
