205
uncompressed high definition
video and multiple-channel data
to the HDMI port of the display
device.
6
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and
etc.
7
Network port
100M Ethernet port
8
A
RS485 RS-485
communication port
RS485_A port. It is the cable A.
You can connect to the control
devices such as speed dome
PTZ.
B
RS485_B.It is the cable B. You
can connect to the control devices
such as speed dome PTZ.
9
Power input port
Input 12V DC.
10
Power on-off button
Power on/off button.
11
GND
Ground end
2.2.9 HCVR5104H-V2/HCVR5108H-V2/HCVR5116H-V2 Series

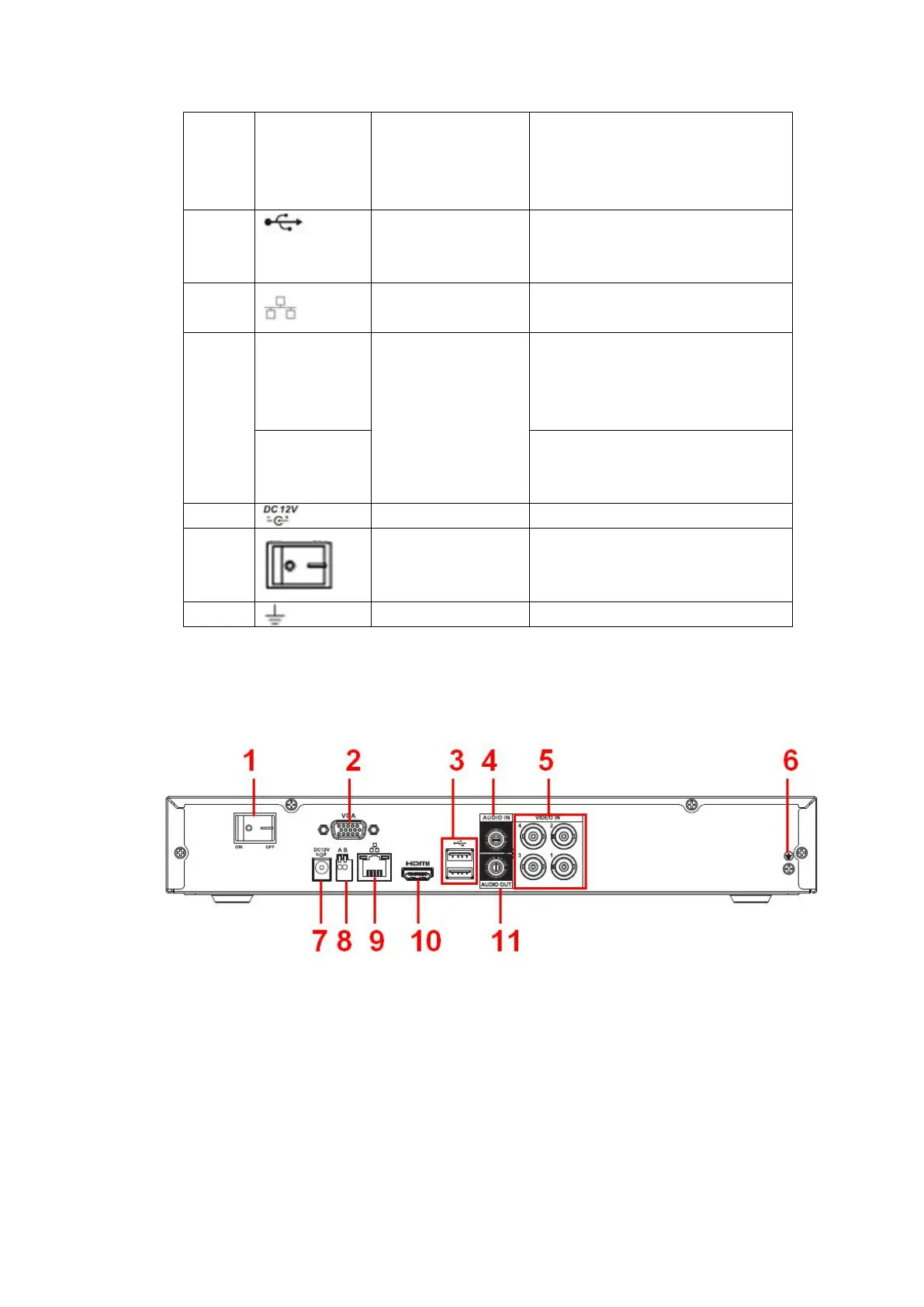

The HCVR5104H-V2 series rear panel is shown as below. See Figure 2- 23.
Figure 2- 23
The HCVR5108H-V2 series rear panel is shown as below. See Figure 2- 24.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua XVR5108HS and is the answer not in the manual?

Dahua XVR5108HS Specifications

General IconGeneral
Video CompressionH.265+/H.265/H.264+/H.264
Video Output1 HDMI, 1 VGA
USB Interface2 USB 2.0
Power Supply12V DC/2A
Video Channels8 channels
HDD CapacityUp to 6TB
Operating Temperature-10°C to +55°C (+14°F to +131°F)
Audio Input/Output1/1 RCA
Internal HDD1 SATA interface, up to 6TB
Max IP Camera Input12 channels
Recording Resolution1080P/720P
HDMI Output1
VGA Output1
Operating Humidity10%–90% (RH), non-condensing
IP Video Input8+4 channels
