2.3.4 Mini 1U Series

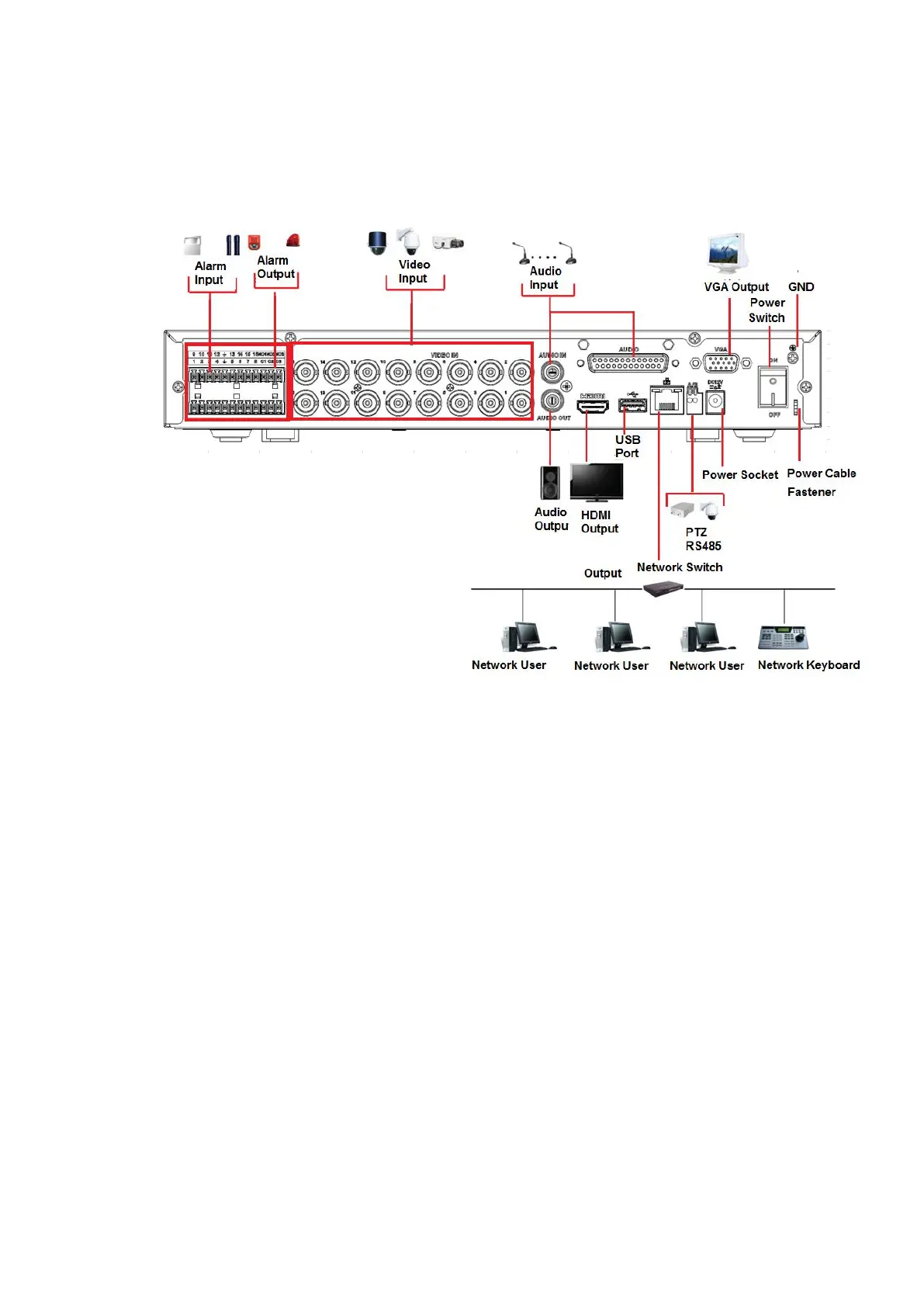

Please refer to Figure 2- 95 for connection sample.
The following figure is based on HCVR4116HE-S3/HCVR5116HE-S3/HCVR7116HE-S3
/XVR4116HE/XVR5116HE/XVR7116HE series.
Figure 2- 95
2.3.5 1U Series
Please refer to the following figure for detailed information. See Figure 2- 96.
The following interface is based on the HCVR4216A-S3/HCVR5216A-S3/
HCVR7216A-S3/XVR4216A/XVR5216A/XVR7216A series product.
