Dahua XVR5108HS User Manual

244
SN
Icon
Name
Note
14
VIDEO
OUT
Video output
port
Connect to output devices such as TV.
2.2.31 HCVR52XXL-V2/ HCVR54XXL-V2/HCVR44L-S2 Series

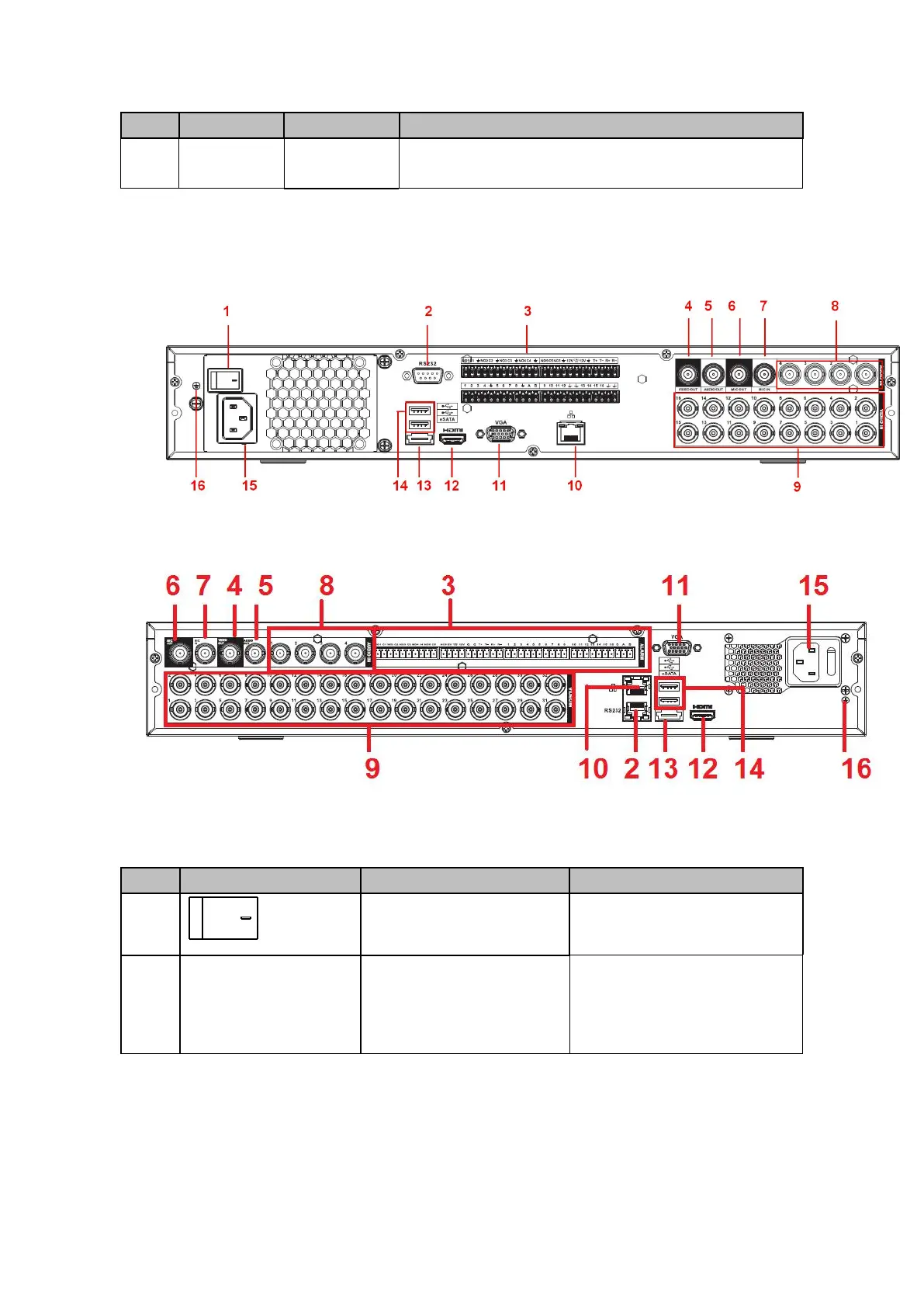

This series products’ rear panel is shown as below. See Figure 2- 77.
The following figure is based on the HCVR5416L-V2 series product.
Figure 2- 77
The HCVR4432L-S2 rear panel is shown as below. See Figure 2- 78.
Figure 2- 78
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Power switch
Power on/off button.
2
RS-232
RS-232 debug COM.
It is for general COM debug to
configure IP address or
transfer transparent COM
data.

Dahua XVR5108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Video Output	1 HDMI, 1 VGA
USB Interface	2 USB 2.0
Power Supply	12V DC/2A
Video Channels	8 channels
HDD Capacity	Up to 6TB
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Audio Input/Output	1/1 RCA
Internal HDD	1 SATA interface, up to 6TB
Max IP Camera Input	12 channels
Recording Resolution	1080P/720P
HDMI Output	1
VGA Output	1
Operating Humidity	10%–90% (RH), non-condensing
IP Video Input	8+4 channels
