Dahua XVR5108HS User Manual

500
Installation modes
Icon
Note
6 de-warp windows+1 panorama
stretching
1 360° panorama view+8 de-warp
windows
（Wall mount）
360°panorama original view
Panorama stretching
1 panorama unfolding view+3 de-warp
windows
1 panorama unfolding view +4 de warp
windows
1 panorama unfolding view +8 de warp
windows

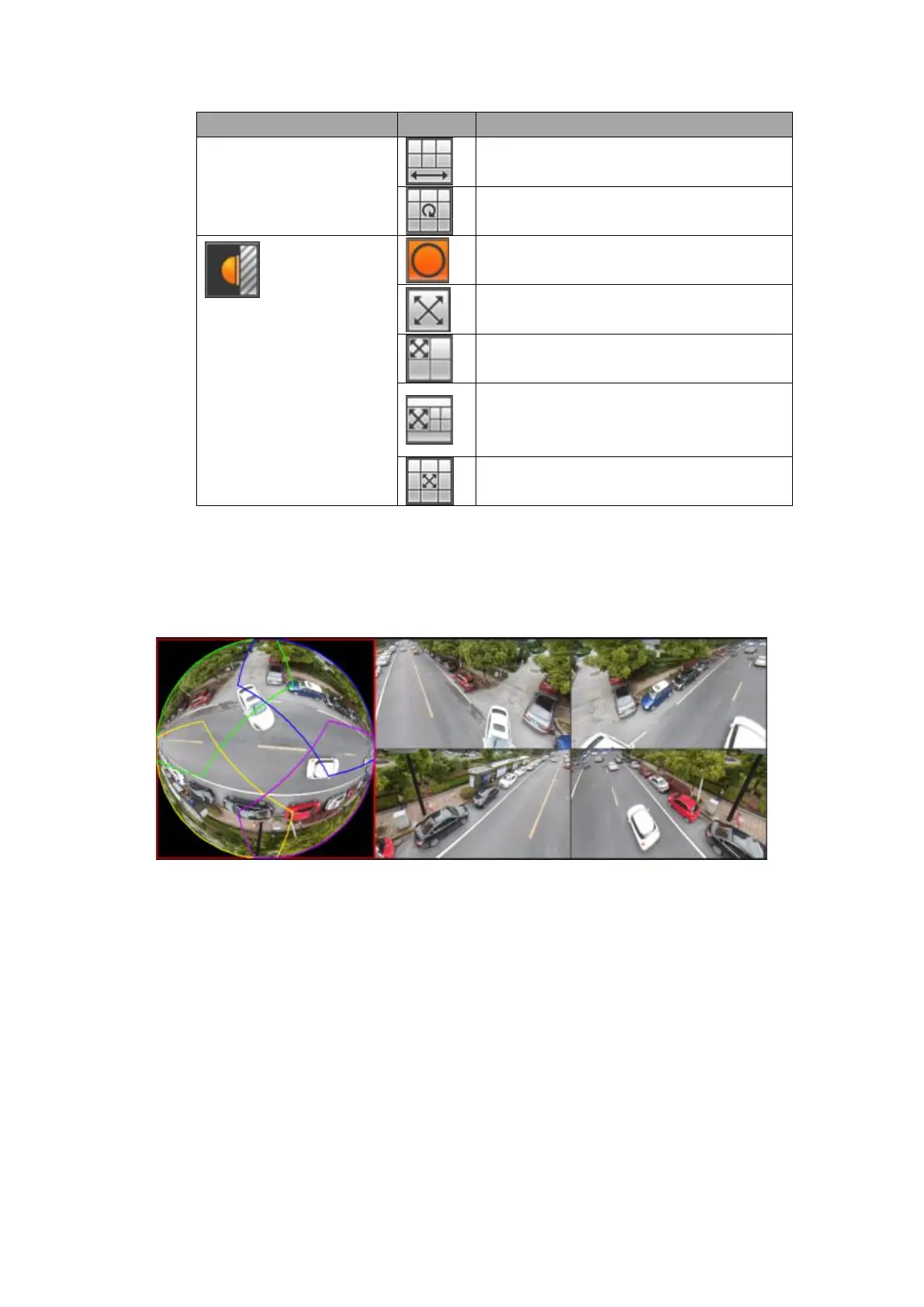

In Figure 5- 17, there are one ceiling mount 360 ° panorama view + four de-warp
windows.
You can adjust the color pane on the left pane or use your mouse to change the
position of the small images on the right pane to realize fish eye de-warp. Please use
mouse to zoom in/out, move, rotate and etc to adjust.
Figure 5- 17
5.7 PTZ
Before PTZ operation, please make sure you have properly set PTZ protocol. (Please
refer to chapter 5.10.5.5).
There are eight direction keys. In the middle of the eight direction keys, there is a 3D
intelligent positioning key.
Click 3D intelligent positioning key, system goes back to the single screen mode. Drag the
mouse in the screen to adjust section size. It can realize PTZ automatically.
Please refer to the following sheet for PTZ setup information.

Dahua XVR5108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Video Output	1 HDMI, 1 VGA
USB Interface	2 USB 2.0
Power Supply	12V DC/2A
Video Channels	8 channels
HDD Capacity	Up to 6TB
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Audio Input/Output	1/1 RCA
Internal HDD	1 SATA interface, up to 6TB
Max IP Camera Input	12 channels
Recording Resolution	1080P/720P
HDMI Output	1
VGA Output	1
Operating Humidity	10%–90% (RH), non-condensing
IP Video Input	8+4 channels
