Dahua XVR5108HS User Manual

209
Figure 2- 29

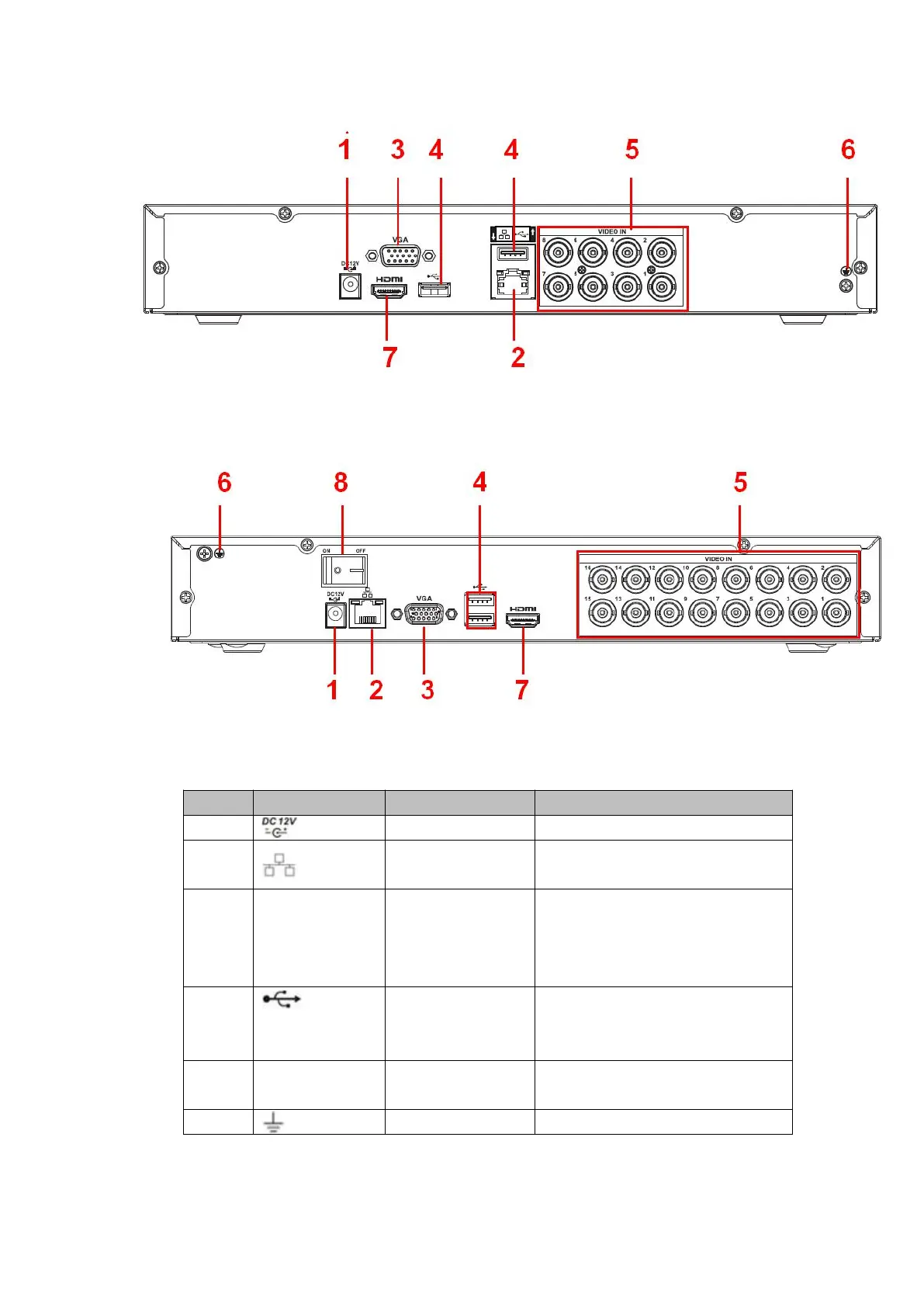

The HCVR5116HC-V2 series rear panel is shown as below. See Figure 2- 30.
Figure 2- 30
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Power input port
Input 12V DC.
2
Network port
100M Ethernet port
3
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect
to the monitor to view ananlog
video output.
4
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and
etc.
5
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
6
GND
Ground end

Dahua XVR5108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Video Output	1 HDMI, 1 VGA
USB Interface	2 USB 2.0
Power Supply	12V DC/2A
Video Channels	8 channels
HDD Capacity	Up to 6TB
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Audio Input/Output	1/1 RCA
Internal HDD	1 SATA interface, up to 6TB
Max IP Camera Input	12 channels
Recording Resolution	1080P/720P
HDMI Output	1
VGA Output	1
Operating Humidity	10%–90% (RH), non-condensing
IP Video Input	8+4 channels
