Dahua XVR5108HS User Manual

225

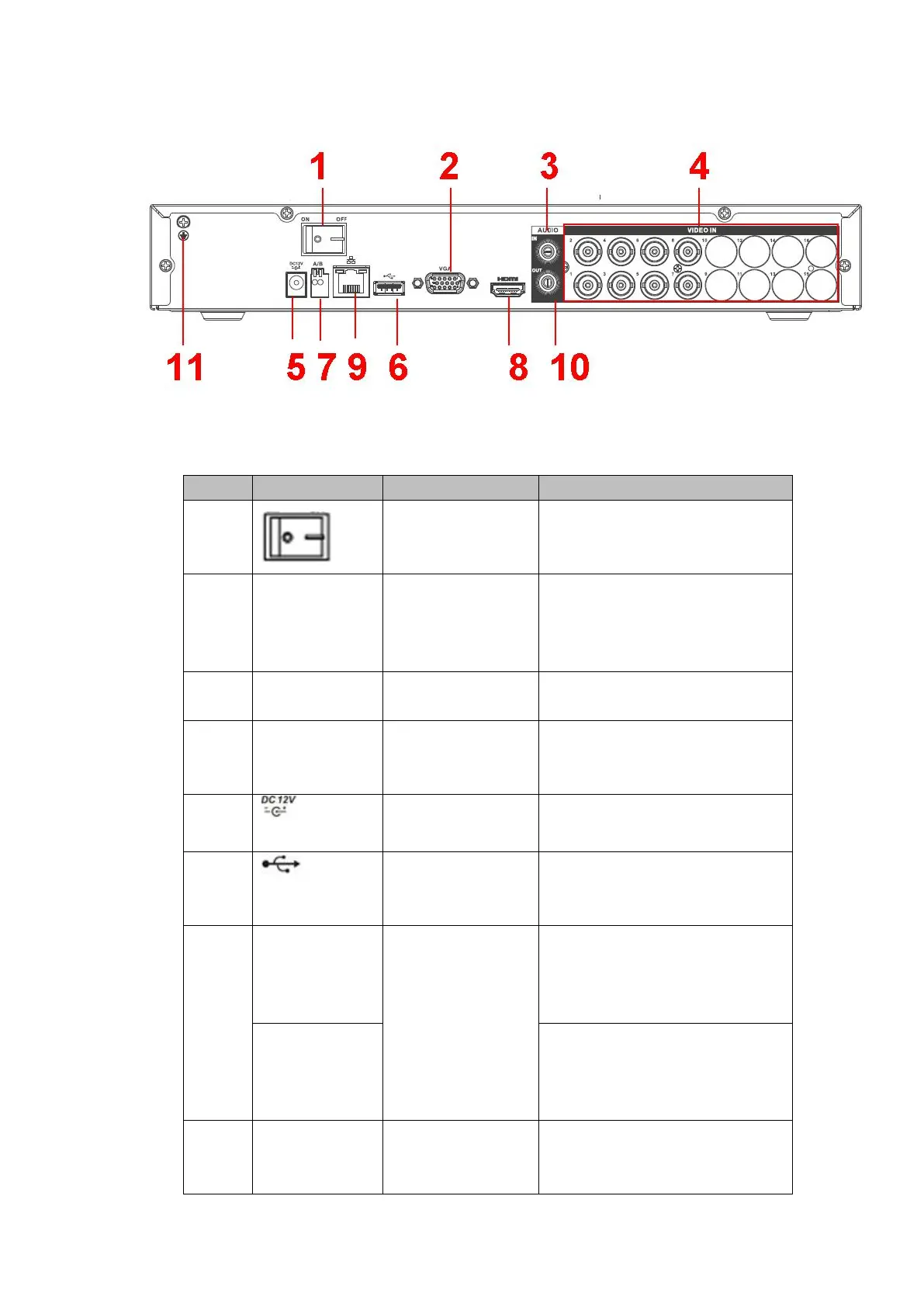

The HCVR7108H-S2 series rear panel is shown as below. See Figure 2- 52.
Figure 2- 52
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Power on-off
button
Power on/off button.
2
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can
connect to the monitor to view
ananlog video output.
3
AUDIO IN
Audio input port
Connect to audio input device
such as speaker.
4
VIDEO IN
Video input port
Connect to analog camera,
video input signal.
5
Power input port
Input 12V DC.
6
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and
etc.
7
A
RS485（RS-485）
communication
port
RS485_A port. It is the cable A.
You can connect to the control
devices such as speed dome
PTZ.
B
RS485_B.It is the cable B. You
can connect to the control
devices such as speed dome
PTZ.
8
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition

Dahua XVR5108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Video Output	1 HDMI, 1 VGA
USB Interface	2 USB 2.0
Power Supply	12V DC/2A
Video Channels	8 channels
HDD Capacity	Up to 6TB
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Audio Input/Output	1/1 RCA
Internal HDD	1 SATA interface, up to 6TB
Max IP Camera Input	12 channels
Recording Resolution	1080P/720P
HDMI Output	1
VGA Output	1
Operating Humidity	10%–90% (RH), non-condensing
IP Video Input	8+4 channels
