Dahua XVR5108HS User Manual

232
The following figure is based on the HCVR2116HS-S3/HCVR4116HS-S3/5116HS-S3
/XVR2116HS/XVR4116HS/XVR5116HS series product.

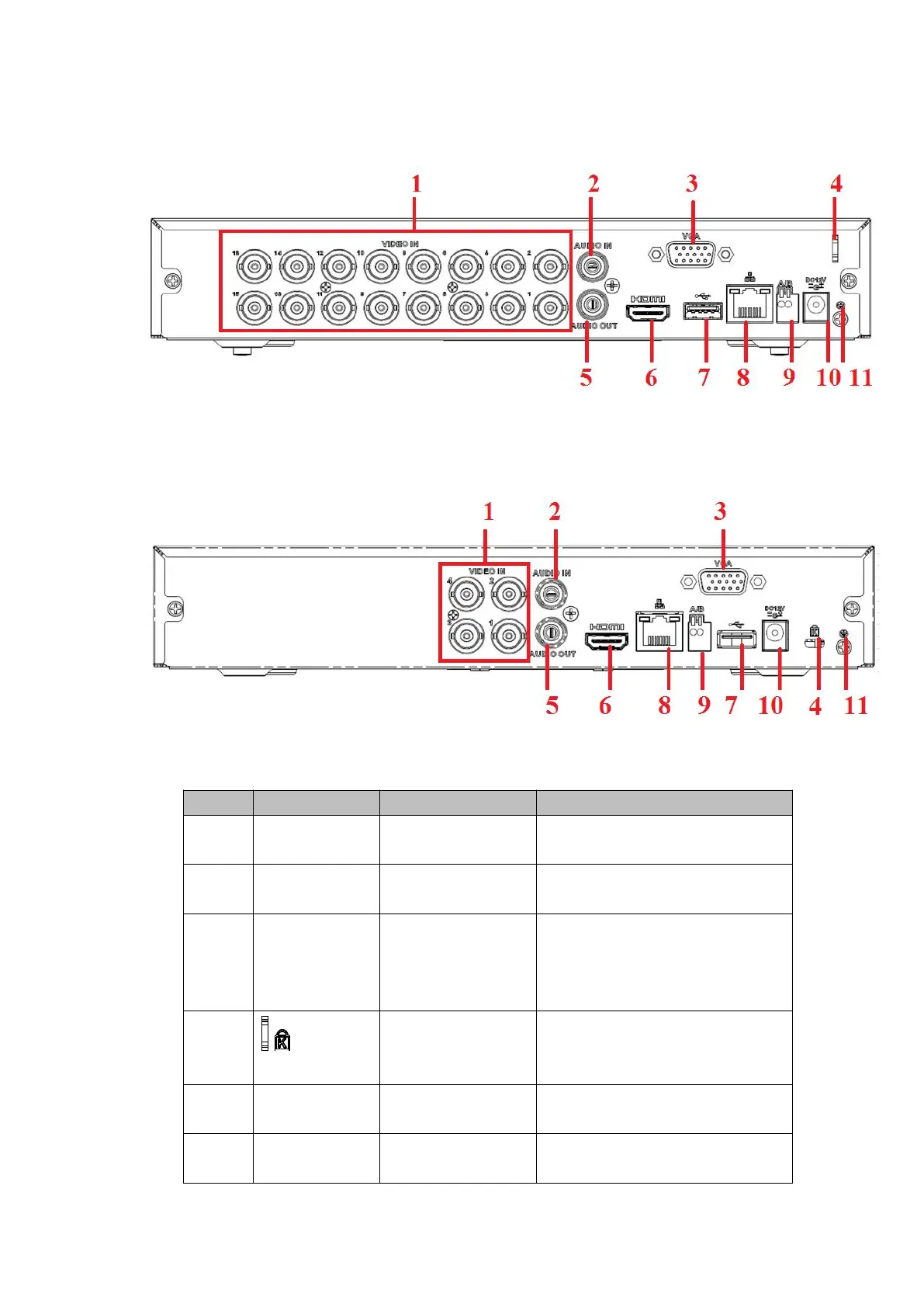

Figure 2- 60
The HCVR7104HS-S3/XVR7104HS/XVR41XXHS-S2/XVR51XXHS-S2 series rear panel
is shown as below. See Figure 2- 61.
Figure 2- 61
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
2
AUDIO IN
Audio input port
Connect to audio input device
such as speaker.
3
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect
to the monitor to view analog
video output.
4
/
Power cable
fastener
Use clamp to secure the power
cable on the device in case there
is any loss.
5
AUDIO OUT
Audio output port
Connect to video output device
such as sound box.
6
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits

Dahua XVR5108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Video Output	1 HDMI, 1 VGA
USB Interface	2 USB 2.0
Power Supply	12V DC/2A
Video Channels	8 channels
HDD Capacity	Up to 6TB
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Audio Input/Output	1/1 RCA
Internal HDD	1 SATA interface, up to 6TB
Max IP Camera Input	12 channels
Recording Resolution	1080P/720P
HDMI Output	1
VGA Output	1
Operating Humidity	10%–90% (RH), non-condensing
IP Video Input	8+4 channels
