Dahua XVR5108HS User Manual

311
already added to the device, you can see there is a small icon “*” after the SN in case
there is repeatedly add operation.

Add: Click it to connect to the selected device and add it to the Added device list.
Support Batch add.
 Edit: Click button or double click a device in the list, you can change channel
setup.
 Delete: Please select one device in the Added device list and then click to
remove.

Export: Export the added device list to the USB device. Refer to chapter 4.1.4.4.6
Export for detailed information.

Import: Click to add several devices at the same time. Refer to chapter 4.1.4.4.7
Import for detailed information.

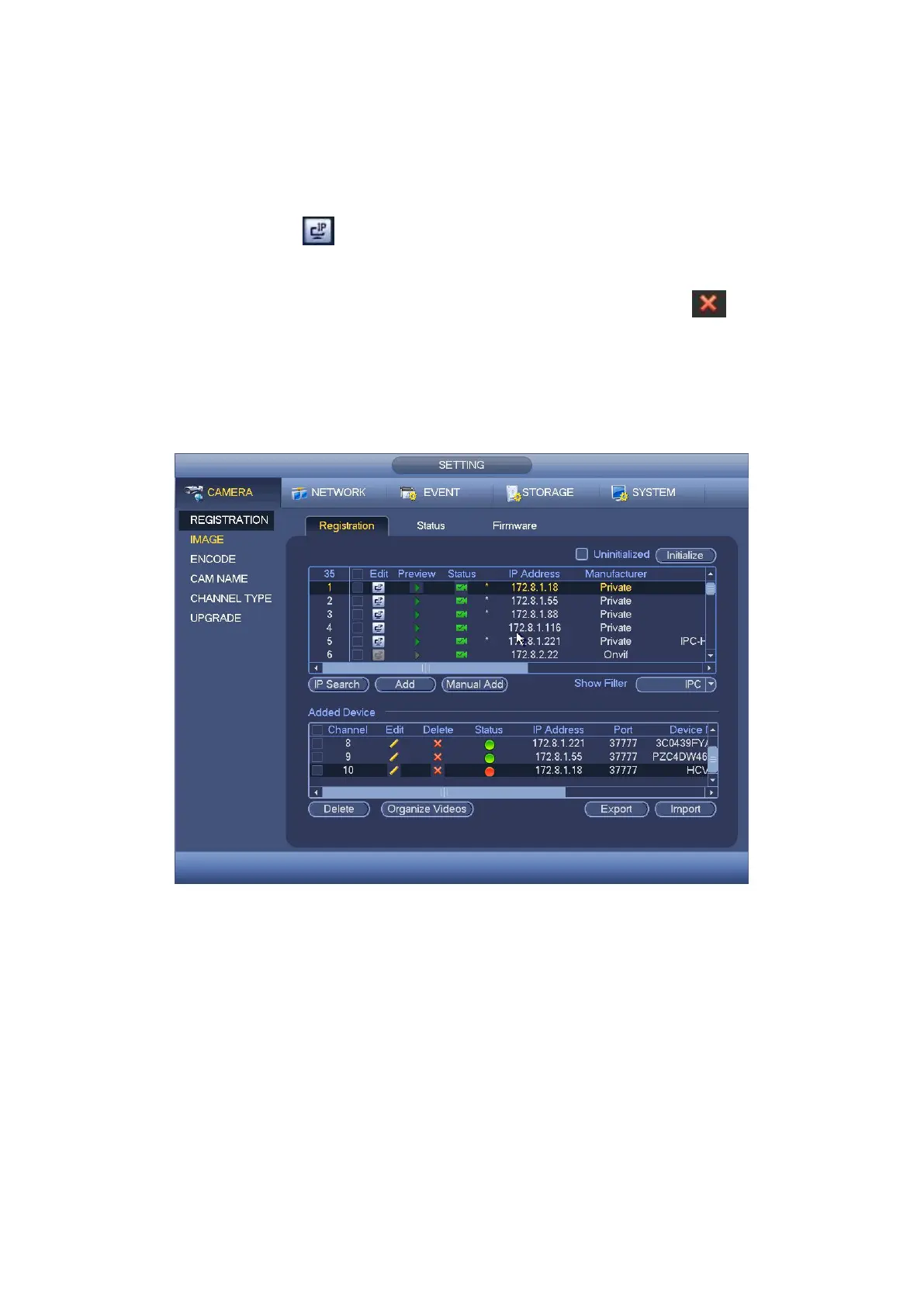

Figure 4- 21
4.1.4.4.1Initialize Camera
The initialize function in registration interface is to change connected camera login
password and IP address.
Steps:
Step 1 From main menu->Setting->Camera->Registration.
Enter Registration interface. See Figure 2- 34.
Step 2 Click IP search and check the Uninitialized box.
Device displays uninitialized camera.

Dahua XVR5108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Video Output	1 HDMI, 1 VGA
USB Interface	2 USB 2.0
Power Supply	12V DC/2A
Video Channels	8 channels
HDD Capacity	Up to 6TB
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Audio Input/Output	1/1 RCA
Internal HDD	1 SATA interface, up to 6TB
Max IP Camera Input	12 channels
Recording Resolution	1080P/720P
HDMI Output	1
VGA Output	1
Operating Humidity	10%–90% (RH), non-condensing
IP Video Input	8+4 channels
Multi-channel Playback	Up to 8 channels
