Dahua XVR5108HS User Manual

318

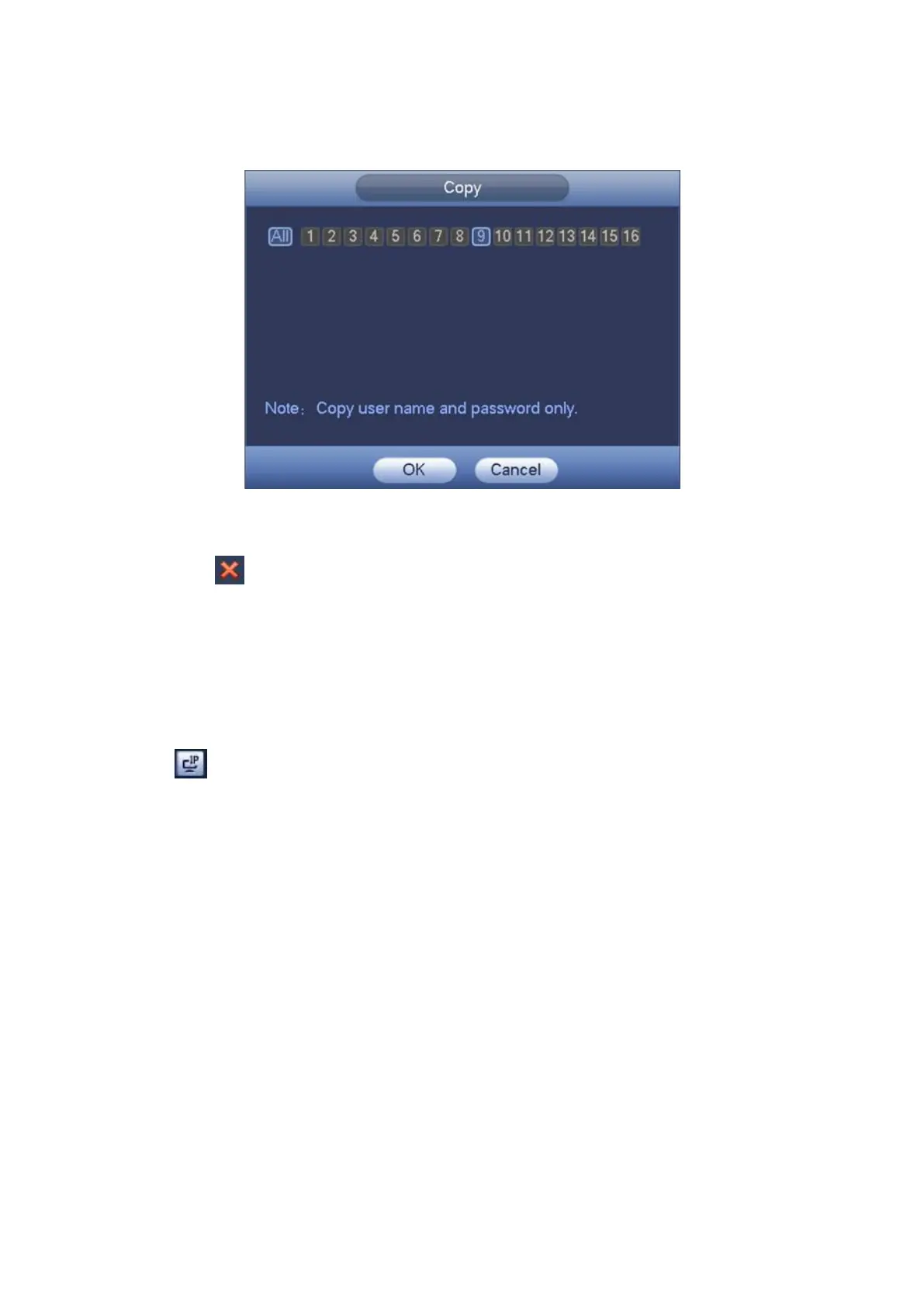

◇ Click Copy, device pops up the following dialogue box. It is to copy the user name
and password to the selected channel(s). See Figure 4- 30.
Figure 4- 30
 Click to disocnnected the camera and remove it from the added list.

Select one or several device(s) in the added list, click Delete button to delete. Check
the box before the channel number to select all channels at the same time.
4.1.4.4.5Change IP
It is to change camera IP address. Support change one by one or batch add.

Change One by One
Click , you can change the information such as IP address, subnet mask, and default
gateway, user name, password of the checked device. See Figure 4- 31. Click Add button
and then click OK, you can add current device to the list,

Dahua XVR5108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Video Output	1 HDMI, 1 VGA
USB Interface	2 USB 2.0
Power Supply	12V DC/2A
Video Channels	8 channels
HDD Capacity	Up to 6TB
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Audio Input/Output	1/1 RCA
Internal HDD	1 SATA interface, up to 6TB
Max IP Camera Input	12 channels
Recording Resolution	1080P/720P
HDMI Output	1
VGA Output	1
Operating Humidity	10%–90% (RH), non-condensing
IP Video Input	8+4 channels
Multi-channel Playback	Up to 8 channels
