Dahua XVR5108HS User Manual

362

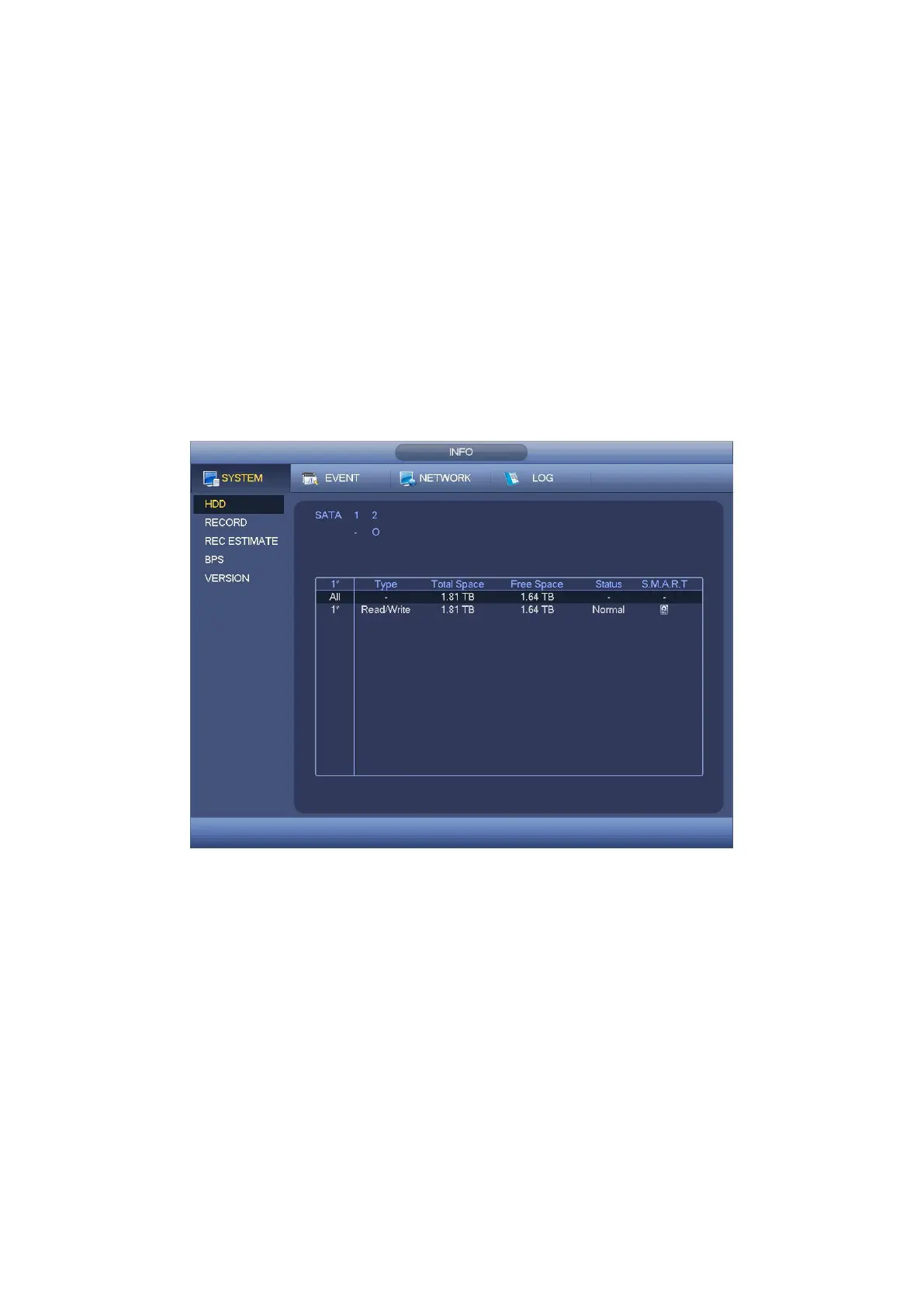

Figure 4- 84.

SATA: 1-2 here means system max supports 2 HDDS. ○ means current HDD is
normal. X means there is error. - means there is no HDD. If disk is damaged, system
shows as “?”. Please remove the broken hard disk before you add a new one.
 SN: You can view the HDD amount the device connected to. ﹡ means the second
HDD is current working HDD.

Type: The corresponding HDD properties.
 Total space: The HDD total capacity.
 Free space: The HDD free capacity.

Status: HDD can work properly or not.
 SMART: Display HDD information. See Figure 4- 85.
Figure 4- 84
Double click one HDD information; you can see the HDD SMART information. . See
Figure 4- 85.

Dahua XVR5108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Video Output	1 HDMI, 1 VGA
USB Interface	2 USB 2.0
Power Supply	12V DC/2A
Video Channels	8 channels
HDD Capacity	Up to 6TB
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Audio Input/Output	1/1 RCA
Internal HDD	1 SATA interface, up to 6TB
Max IP Camera Input	12 channels
Recording Resolution	1080P/720P
HDMI Output	1
VGA Output	1
Operating Humidity	10%–90% (RH), non-condensing
IP Video Input	8+4 channels
