Dahua XVR5108HS User Manual

451

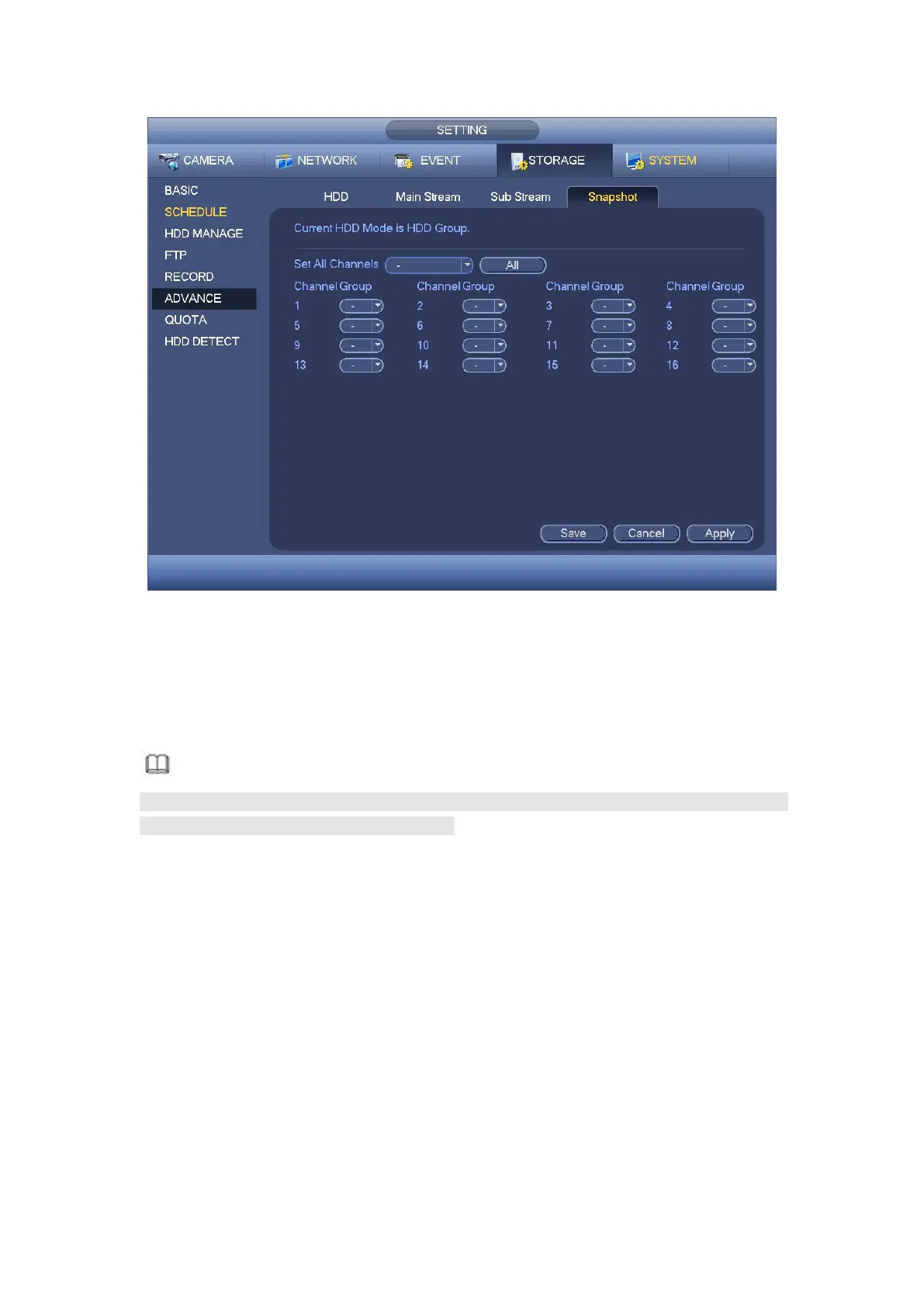

Figure 4- 188
Step 5 Click Apply or Save to complete setup.
4.9.4.5 Record
4.9.4.5.1Record Control
Note
You need to have proper rights to implement the following operations. Please make
sure the HDD has been properly installed.
There are three ways for you to go to manual record menu.

Right click mouse and then select Manual->Record.

In the main menu, from Setting->Storage->Record.

In live viewing mode, click record button in the front panel or record button in the
remote control.
System supports main stream and sub stream. There are three statuses:
schedule/manual/stop. See Figure 4- 189. Please highlight icon “ ○ ” to select
corresponding channel.

Manual: The highest priority. After manual setup, all selected channels will begin
ordinary recording.

Schedule: Channel records as you have set in recording setup (Main
Menu->Setting->System->>Schedule)

Stop: Current channel stops recording.

Dahua XVR5108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Video Output	1 HDMI, 1 VGA
USB Interface	2 USB 2.0
Power Supply	12V DC/2A
Video Channels	8 channels
HDD Capacity	Up to 6TB
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Audio Input/Output	1/1 RCA
Internal HDD	1 SATA interface, up to 6TB
Max IP Camera Input	12 channels
Recording Resolution	1080P/720P
HDMI Output	1
VGA Output	1
Operating Humidity	10%–90% (RH), non-condensing
IP Video Input	8+4 channels
