Dahua XVR5108HS User Manual

515
Parameter
Function
Audio source
Please select from the dropdown list. There are two options: Normal/HDCVI.
In the normal mode, the audio signal comes from the Audio In. In the HDCVI
mode, the audio signal comes from the coaxial cable of the camera.
Watermark
enable
This function allows you to verify the video is tampered or not.
Here you can select watermark bit stream, watermark mode and watermark
character. Default character is DigitalCCTV. The max length is 85-digit. The
character can only include number, character and underline.
5.10.1.3.2 Snapshot

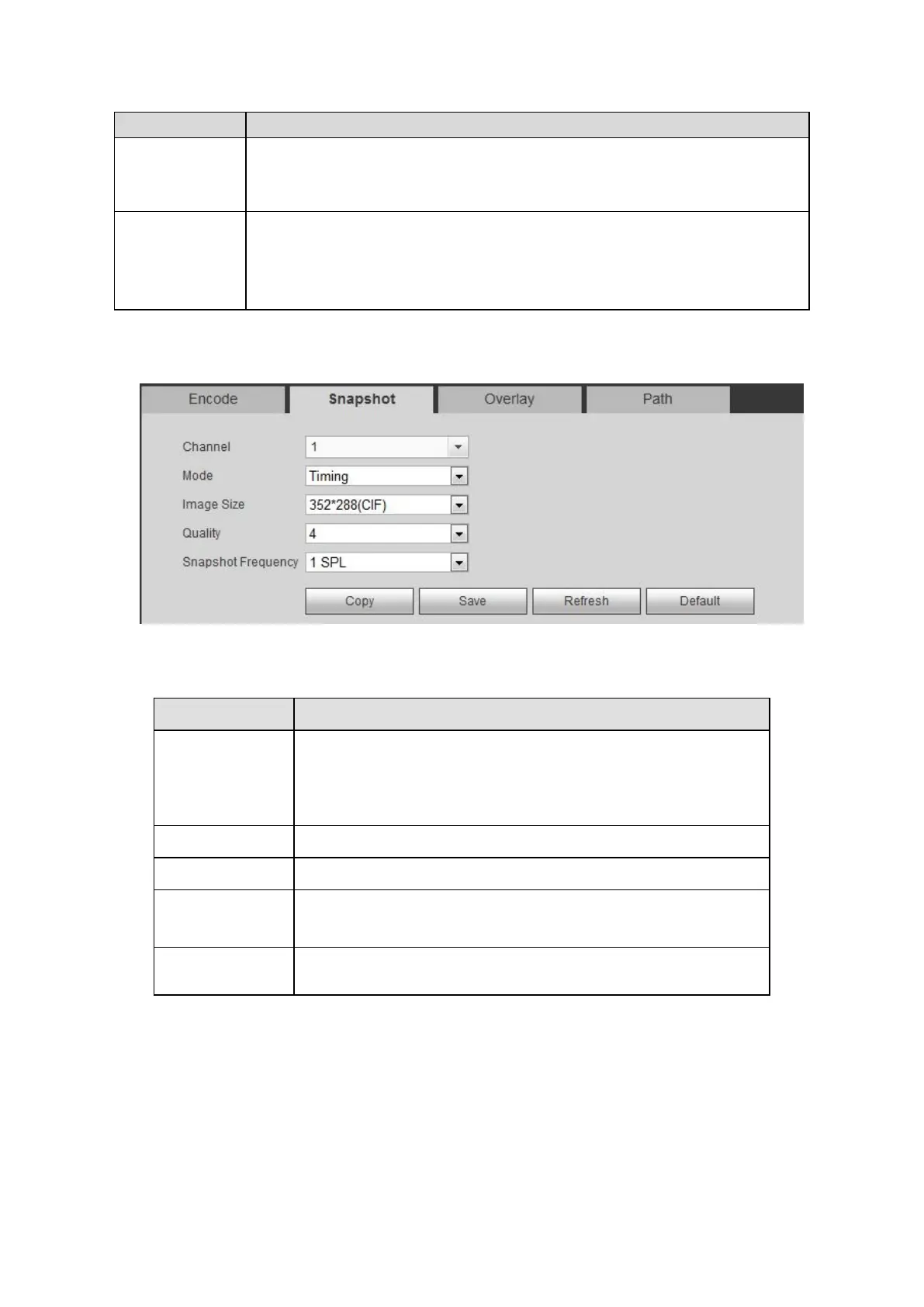

The snapshot interface is shown as in Figure 5- 34.
Figure 5- 34
Please refer to the following sheet for detailed information.
Parameter
Function
Snapshot type
There are two modes: Timing (schedule) and Trigger.

Regular snapshot is valid during the specified period you
set.

Trigger snapshot only is valid when motion detect alarm,
tampering alarm or local activation alarm occurs.
Image size
It is the same with the resolution of the main stream.
Quality
It is to set the image quality. There are six levels.
Interval
It is to set snapshot frequency. The value ranges from 1s to 7s.
Or you can set customized value. The max setup is
3600s/picture.
Copy
Click it; you can copy current channel setup to other channel(s).
5.10.1.3.3 Video Overlay
The video overlay interface is shown as in Figure 5- 35.

Dahua XVR5108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Video Output	1 HDMI, 1 VGA
USB Interface	2 USB 2.0
Power Supply	12V DC/2A
Video Channels	8 channels
HDD Capacity	Up to 6TB
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Audio Input/Output	1/1 RCA
Internal HDD	1 SATA interface, up to 6TB
Max IP Camera Input	12 channels
Recording Resolution	1080P/720P
HDMI Output	1
VGA Output	1
Operating Humidity	10%–90% (RH), non-condensing
IP Video Input	8+4 channels
