Dahua XVR5108HS User Manual

518
matter what analog signal (CVBS, CVI, AHD or other analog HD signal) connected;
the XVR can automatically recognize the signal and display the proper image. There
is no need to set manually.

If the auto recognition error occurred, XVR series product supports manual setup too.
The manual setup featuring high recognition speed and usually there is no error. For
example, you can set channel 1 to connect to CVI camera, channel 2 to connect to
AHD camera, channel 3 to connect to CVBS camera.

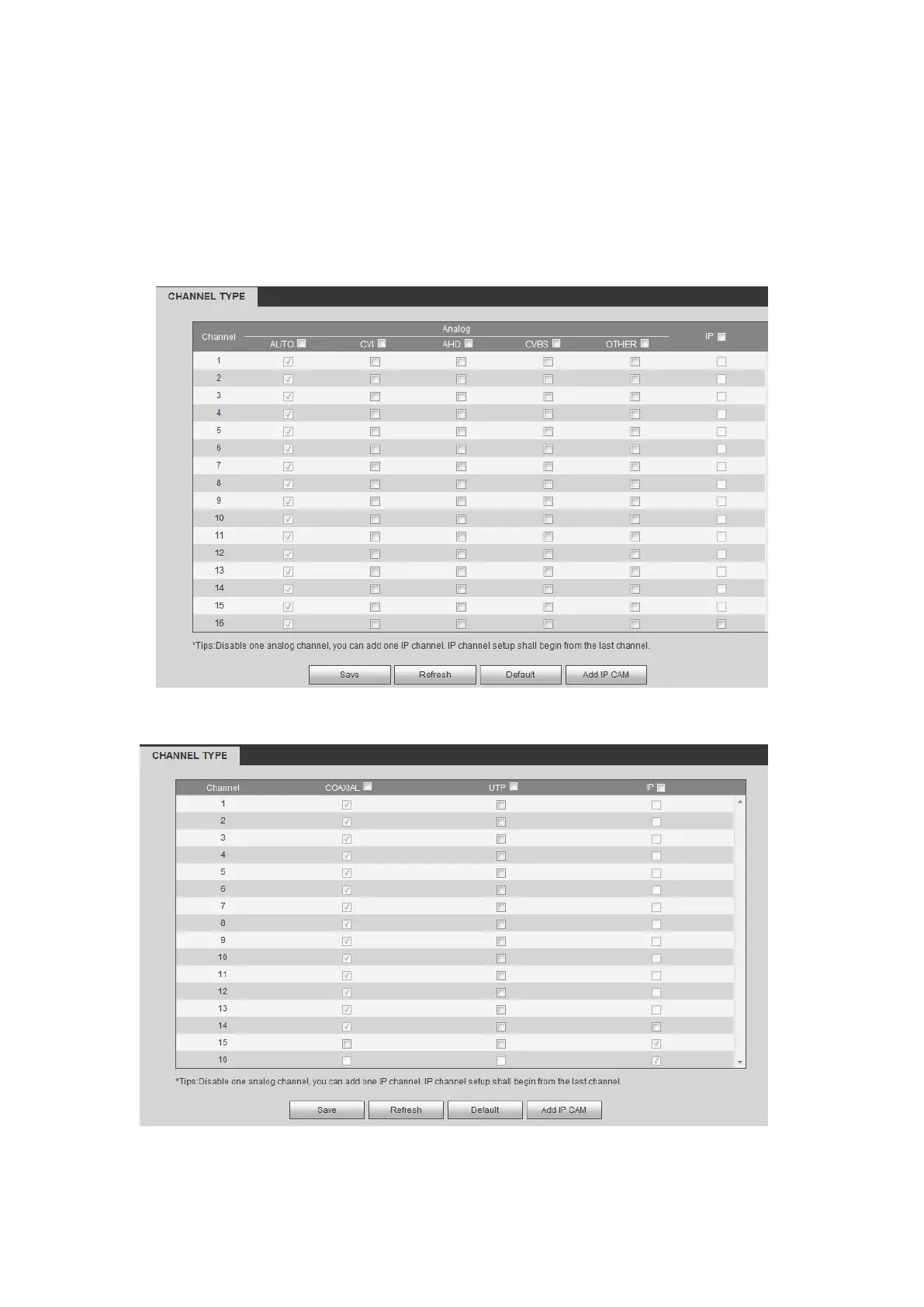

Figure 5- 38
Figure 5- 39

Dahua XVR5108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Video Output	1 HDMI, 1 VGA
USB Interface	2 USB 2.0
Power Supply	12V DC/2A
Video Channels	8 channels
HDD Capacity	Up to 6TB
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Audio Input/Output	1/1 RCA
Internal HDD	1 SATA interface, up to 6TB
Max IP Camera Input	12 channels
Recording Resolution	1080P/720P
HDMI Output	1
VGA Output	1
Operating Humidity	10%–90% (RH), non-condensing
IP Video Input	8+4 channels
