Dahua XVR5108HS User Manual

573

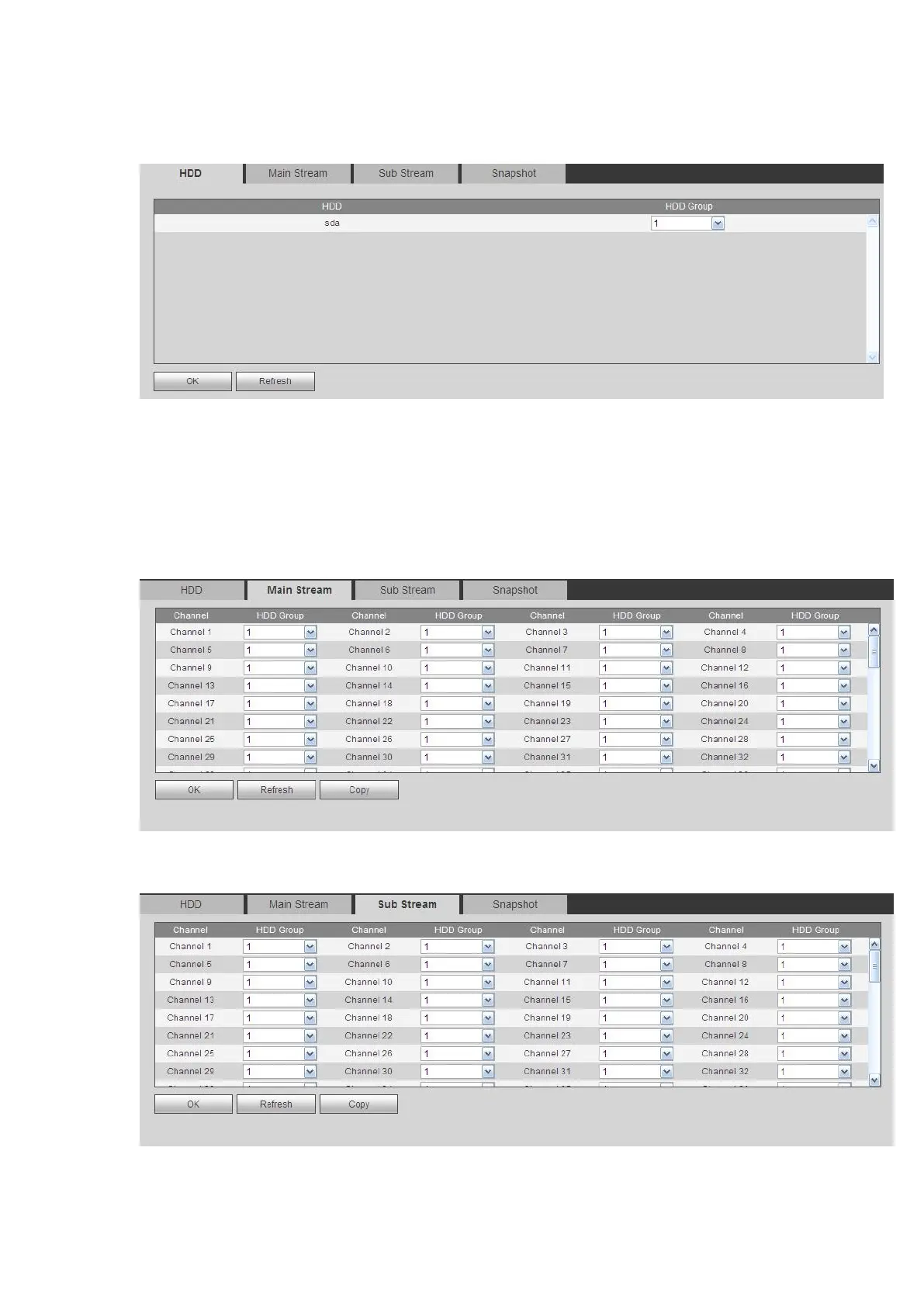

Step 1 From main menu->Setup->Storage->Advanced->HDD.
Enter HDD interface. See Figure 5- 108.
Figure 5- 108
Step 2 Set a HDD group for current HDD.
Click OK. Device begins reboot.
Step 3 After set HDD group, click main stream/sub stream/snapshot tab to save main
stream, sub stream, snapshot image to different HDD group. See Figure 5- 109,
Figure 5- 110, Figure 5- 111
Figure 5- 109
Figure 5- 110

Dahua XVR5108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Video Output	1 HDMI, 1 VGA
USB Interface	2 USB 2.0
Power Supply	12V DC/2A
Video Channels	8 channels
HDD Capacity	Up to 6TB
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Audio Input/Output	1/1 RCA
Internal HDD	1 SATA interface, up to 6TB
Max IP Camera Input	12 channels
Recording Resolution	1080P/720P
HDMI Output	1
VGA Output	1
Operating Humidity	10%–90% (RH), non-condensing
IP Video Input	8+4 channels
