Dahua XVR5108HS User Manual

595

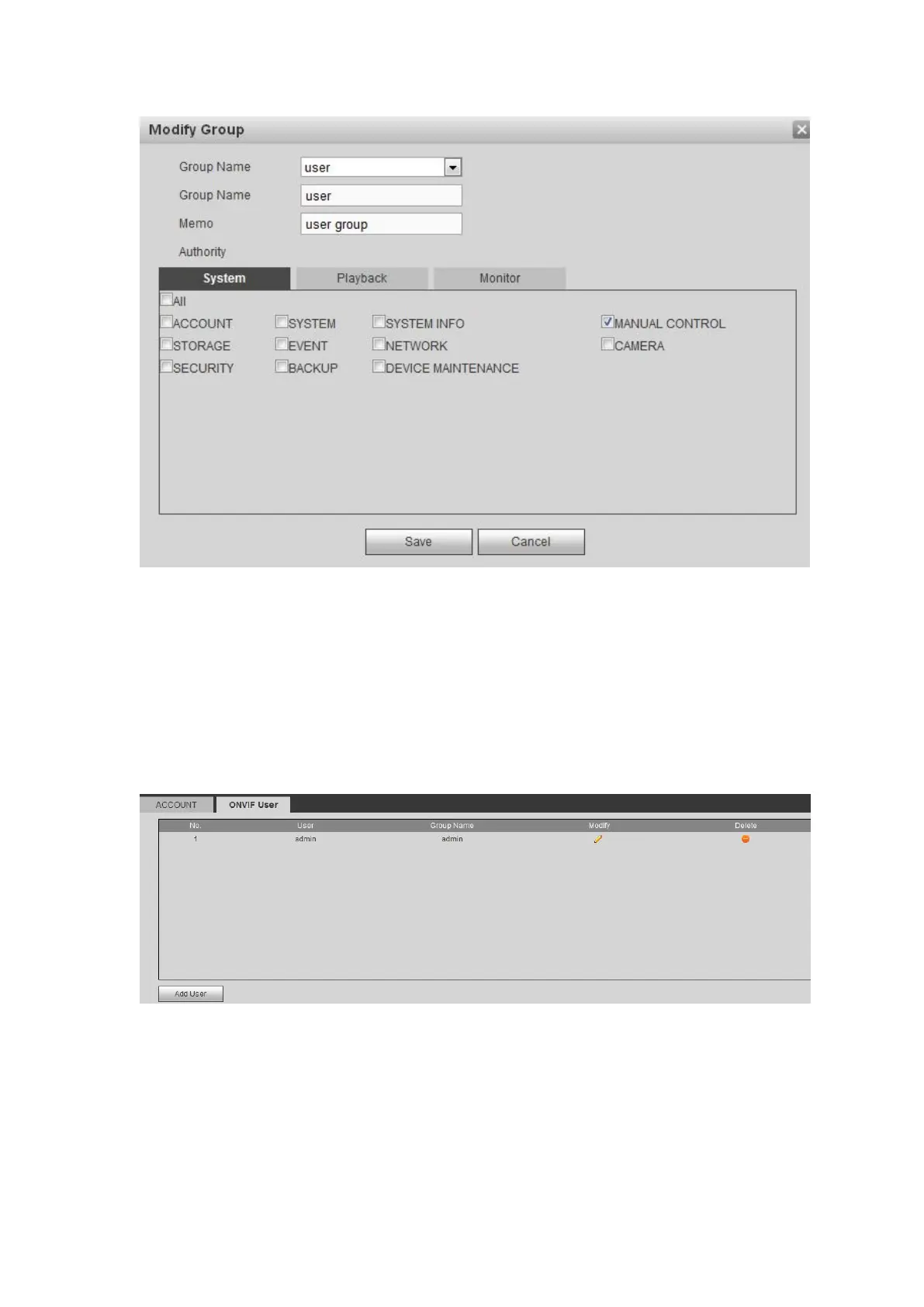

Figure 5- 141
Step 2 Change corresponding information and then click Save button.
5.10.5.9.3 ONVIF User
When the camera from the third party is connected with the DVR via the ONVIF user,
please use the verified ONVIF account to connect to the DVR.
Step 1 From main menu->Setting->System->Account->ONVIF User.
Enter ONVIF user interface. See Figure 5- 142.
Figure 5- 142
Step 2 Click Add user button.
Enter add user interface. See Figure 5- 143.

Dahua XVR5108HS Specifications

General

Video Compression	H.265+/H.265/H.264+/H.264
Video Output	1 HDMI, 1 VGA
USB Interface	2 USB 2.0
Power Supply	12V DC/2A
Video Channels	8 channels
HDD Capacity	Up to 6TB
Operating Temperature	-10°C to +55°C (+14°F to +131°F)
Audio Input/Output	1/1 RCA
Internal HDD	1 SATA interface, up to 6TB
Max IP Camera Input	12 channels
Recording Resolution	1080P/720P
HDMI Output	1
VGA Output	1
Operating Humidity	10%–90% (RH), non-condensing
IP Video Input	8+4 channels
