Names and Functions
Basic Screen
• Basic screen are two types of Standard display screen and Detailed display screen.
The Standard display screen is set by default.
•
To switch to the Detailed display, select the “Detailed” in the Main Menu. (Refer to
page56.)
• The contents on the screen vary with the operation mode of the connecting model.
(The following display will appear when the air conditioner is in Automatic operation.)
Standard display screen
Auto
This function not available

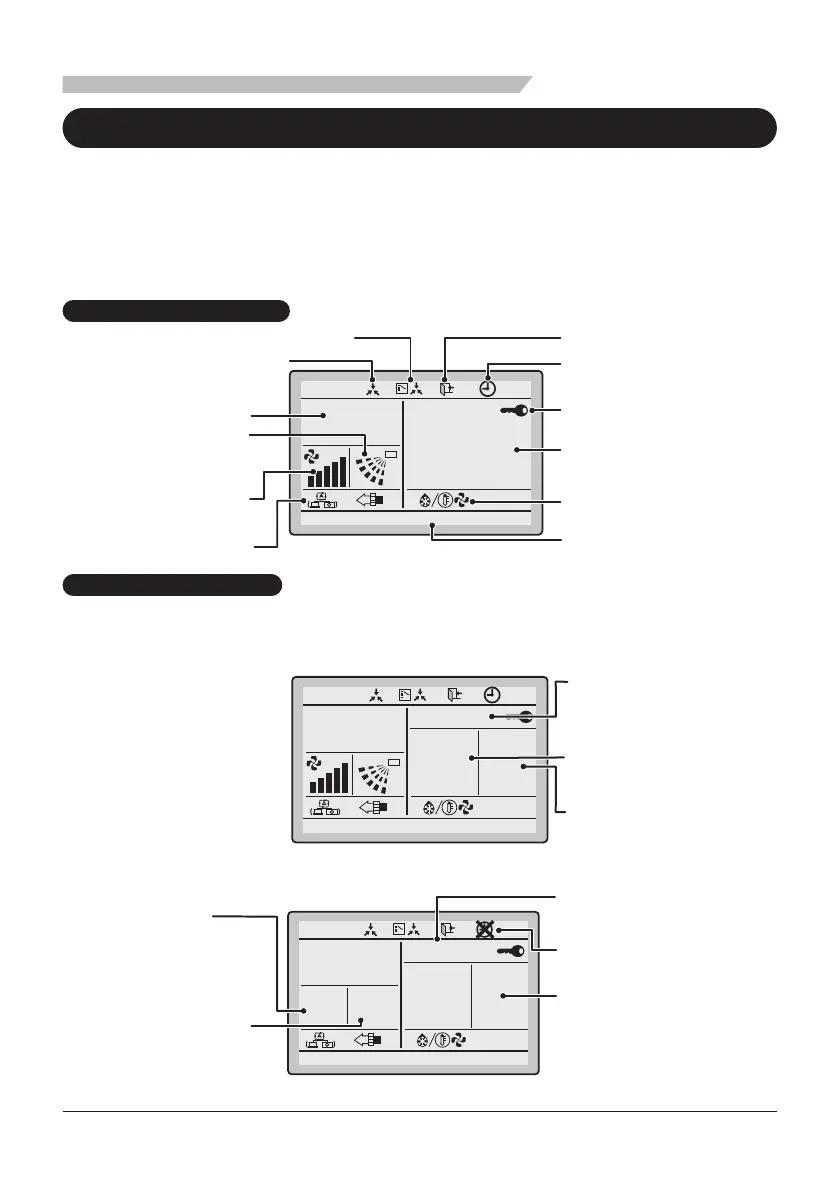

<Standard display example>
1. Operation mode
12.Setback
8. Key Locked
6. Message
9. Timer Enabled
Set to
Cool
Heat
28°C
20°C
7. Ventilation/Air purifying
10.Centralized Control
11.Changeover Under Control
4.Set/Setback
Temperature display
5.Defrost/Hot start
2. Airflow Rate (Airflow
level/Fan Speed)
3.Airflow Direction
(Displayed only when the air
conditioner is in operation.)
Detailed display screen
 The clock, and selectable display items appear on the detailed
display screen in addition to the items appearing on the standard
display screen.
Room
20°C
Auto
Cool
Heat
35 °C
10 °C
Setback
Fr i
11
:
03
14. Selectable Display Item
(with room
temperature selected)
13. Clock (12/24 hour
s
time display)
<Detailed display example 1>
4. Set/Setback
Temperature display
Auto
--
:
--
Cool
Heat
28 °C
20 °C
Set to
<Detailed display example 2>
2. Airflow Rate
(Airflow level/Fan
Speed) is not appear
(No airflow rate
control function)
13. Clock
(No clock setting)
3.Airflow Direction
is not appear
(No airflow direction
function)
15. Timer Disabled/
Reset Clock
14. Selectable Display
Item
(No selectable display
item selected)
