• Control systems
• intelligent Touch Manager • ED721208
K1R
1~200-240V
DEC102A51
CD
D1~4
K1R
D2
CD
D1
DEC102A51 DEC102A51
D4
CD
D3
K4R
1~200-240V
K3R
K3R
K5R
K2R
K5R
K1R
Q1M
S1S
Q1M
S3S
S2S
1~200-240V
Q1M
S2S
Q1M
K2R
K5R
K1R K5R
K4R
S1S
K5R
S3S
K2R
K1R
1~200-240V 1~200-240V
Operation output
It is possible to select continuous 1 output (4 points) or instantaneous 2 output (ON/OFF pair-2 points).
Forswitching,referto2.InitialSetting➃
•WiringatContinuousOutput(Upto4facilityequipmentscanbeconnected.)
•WiringatInstantaneousOutput(Upto2facilityequipmentscanbeconnected.)
Outputwiringforfacilityequipment1

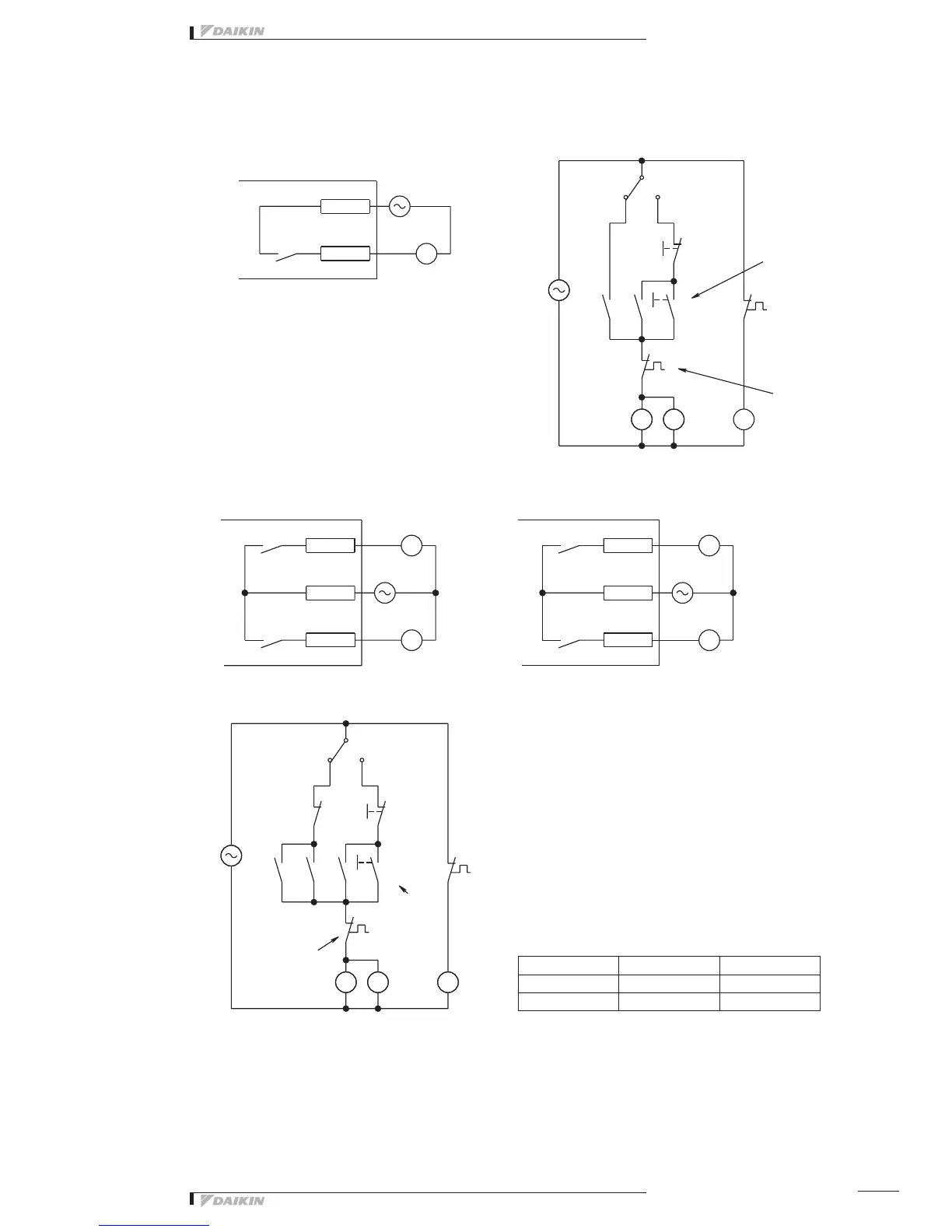

Facility Equipment Operation Circuit Example
Outputwiringforfacilityequipment2
(Termal size: M3.5)
Facility equipment
protecting service
Output SPEC: No-voltage “a” contact
Voltage SPEC Maximum Current Minimum Current
200-240V 1.5A (Resistive Load) 10mA
DC5~24V 2A (Resistive Load) 10mA
Local
operation
Facility
equipment
protecting
device
Local
stop
LOCALREMOTE
(Termal size: M3.5)
Stop
command
Stop
command
Operation
command
Operation
command
Facility Equipment Operation Circuit Example
Facility equipment
protecting service
Local
operation
Facility
equipment
protecting
device
Local
stop
Operation
command
(Terminal size: M3.5)
LOCALREMOTE
