• Control systems
• Centralised control systems • wiring details

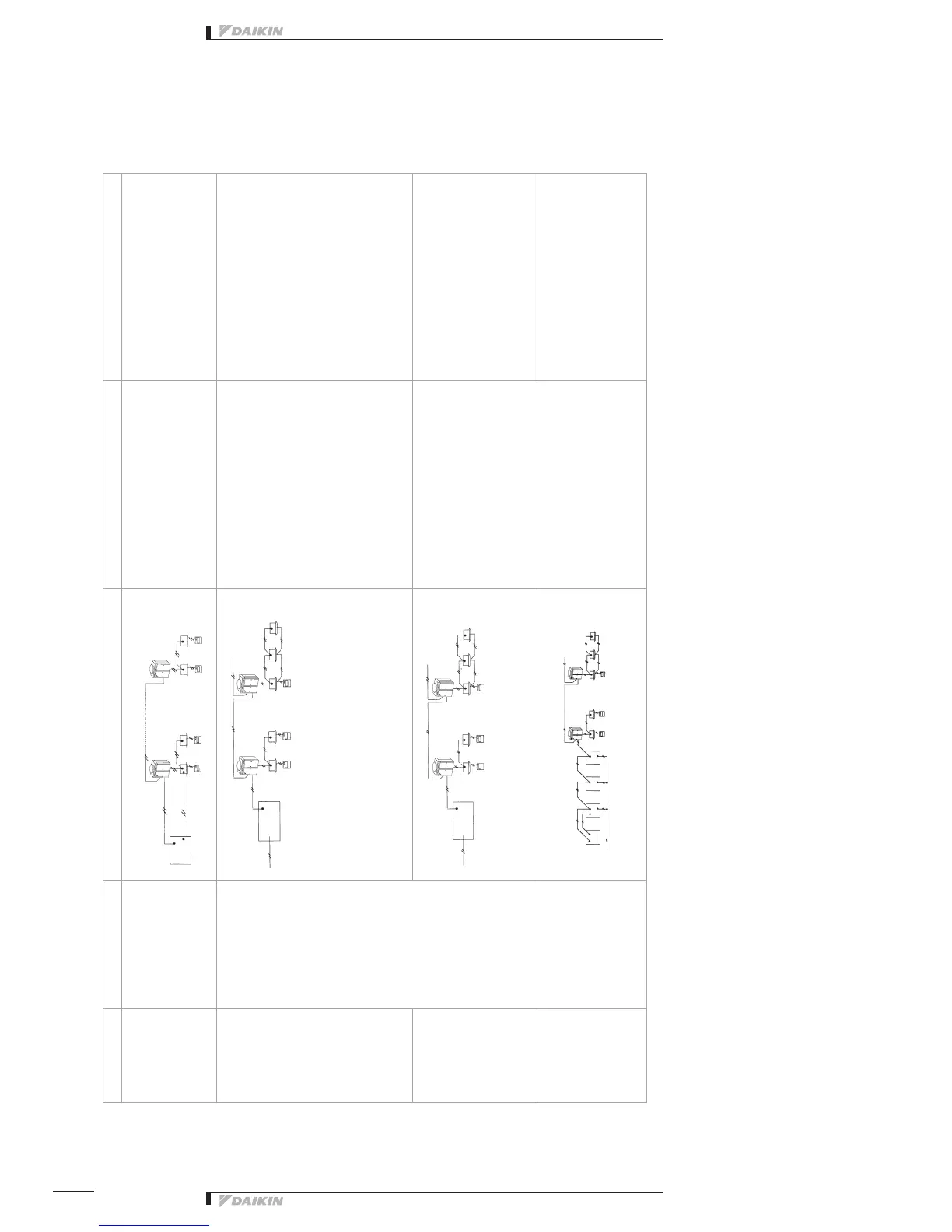

Survey of various control systems
For more effective localized environmental control Daikin offers various control systems such as single or double remote control or
centralized control. This enables the construction of a variety of operational control systems which can be adapted for various uses from
remote control to building automation (BA).
Control Method Objective / use System outline Function Standard number of units DST301B51 Schedule timer
To carry out weekly schedule operation by 1-minute units
• ON/OFF time can be set by units of day,
hour and minute; ON/OFF pattern can be set by time zone of twice per day in accordance with application.
Simultaneously controls 64 groups with one schedule timer. Max. 128 units
Centralised remote control DCS302B51
To control all indoor units from one place
• Double central control function • Function of liquid crystal remote
control can be controlled individually for each zone of the indoor unit.
• Individual/ unified operation • Up to 8 patterns can be set for operation
controlled by programmed time when used in combination with schedule timer.
• Temperature setting for each zone • Control operation for each room
during centralized control
• Remote control operation rejected command • Sequential start function
Controls up to 64 groups with one centralised remote control. Max. 128 units
Unified ON/OFF control DCS301B51
• Double central control function • Indoor unit ON/OFF control • Individual/unified operation • Remote control operation rejected
command. (Centralised remote control given priority when used in combination with centralised remote control.)
• Sequential start function
Controls up to 16 groups of indoor units with one unified ON/OFF control. Max. 128 units
Schedule timer Centralised remote control Unified ON/ OFF control
• Respective functions of schedule timer,
centralised remote control and unified ON/OFF control are possible.
• (Control mode of centralised remote
control is given priority for operation of remote control for indoor unit.)
• Sequential start function.
Controls up to 64 groups of indoor units with 1 schedule, timer, 2 centralised remote controls and 8 unified ON/OFF controls.
Max.lengthoftransmissionwiringforcentralisedcontrol:1km Max.lengthoftransmissionwiringforcentralisedcontrol:1km Max.lengthoftransmissionwiringforcentralisedcontrol:1km
Up to 128 indoor units can be controlled Up to 64 units by individual control
Up to 16 units by individual control
Up to 128 units by individual control
Single phase, 220 ~ 240V power supply
Combinationofupto8unied ON/OFF controls possible
Centralised remote control
Schedule timer
Up to 16 groups (128 units) can be controlled by group control
Up to 64 groups (128 units) can be controlled by group control
Up to 64 groups (128 units) can be controlled by group control
(Powersupplyfor
schedule timer)
Remote control
Remote control
Remote controlRemote control
Remote control
Remote control
Centralised remote control UniedON/OFF control
Single phase, 220 ~ 240V power supply Single phase, 220 ~ 240V power supply
Schedule timer
