33
• Control systems
• Centralised control systems • wiring details

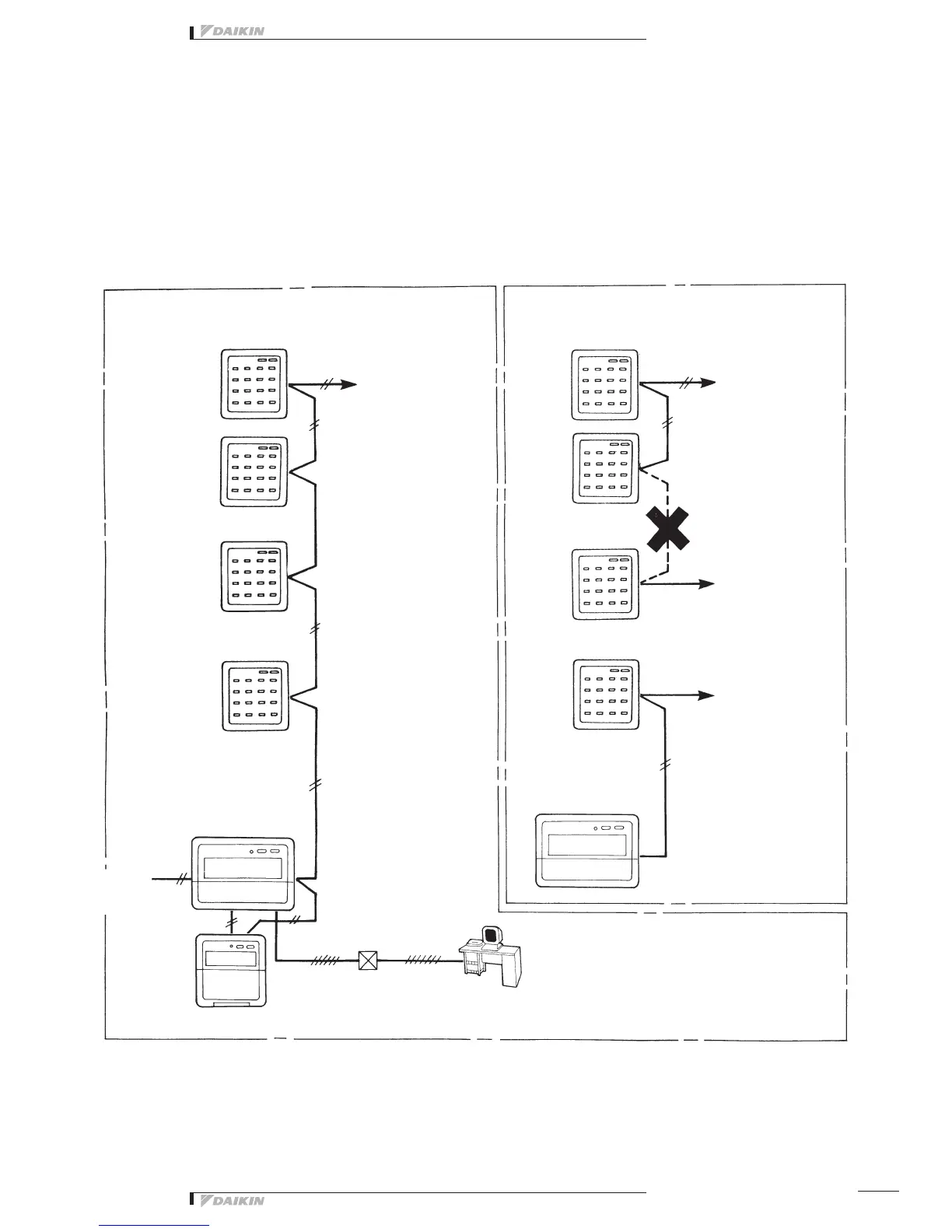

Wiring example of centralised control systems
• Be sure to connect the wiring of the central controller to (A) or (B).
(Connect to (B), if it is possible.)
• Be sure to limit the number of indoor units within the limitation for each system.
• Never connect the wire between the controllers, that are connected to different circuits.
• In order to prevent the connection of 3 wires on the same terminal, connect to the terminal unit of (A) or (B), or use the relay terminal
(local supply).
4 • When all centralised control systems are located at one place.
UniedOn/OffControl
(DCS301B51)
Up to 4 control can be
connected
UniedOn/OffControl
(DCS301B51)
Up to 4 controllers can be
connected
Uniedadapterforcomputerisedcontrol
(DCS302A52)
(6) (Max 7)
Thescheduletimer,unied
adapterforcomputerisedcontrol
etc. can be connected to the
same as in pattern 1.
Never connect the wire
between the contollers,
which are connected to
differentcircuits.
Schedule timer (DST301B51)
Possibletoset8differentpatternsofweeklyschedulebyoneunit.
Possible to interlink with building management system
(Host computer monitor panel.)
Centralised remote control
(DCS302B51)
Centralised remote control
(DCS302B51)
Forced
shut-down
input
Pattern 1 Pattern 2
3 • When all centralised control systems are located at
several places.
or
or
or
or
