• Control systems
• Individual control systems • ARC*/BRC*
BRC1E52A/B - Wired remote control

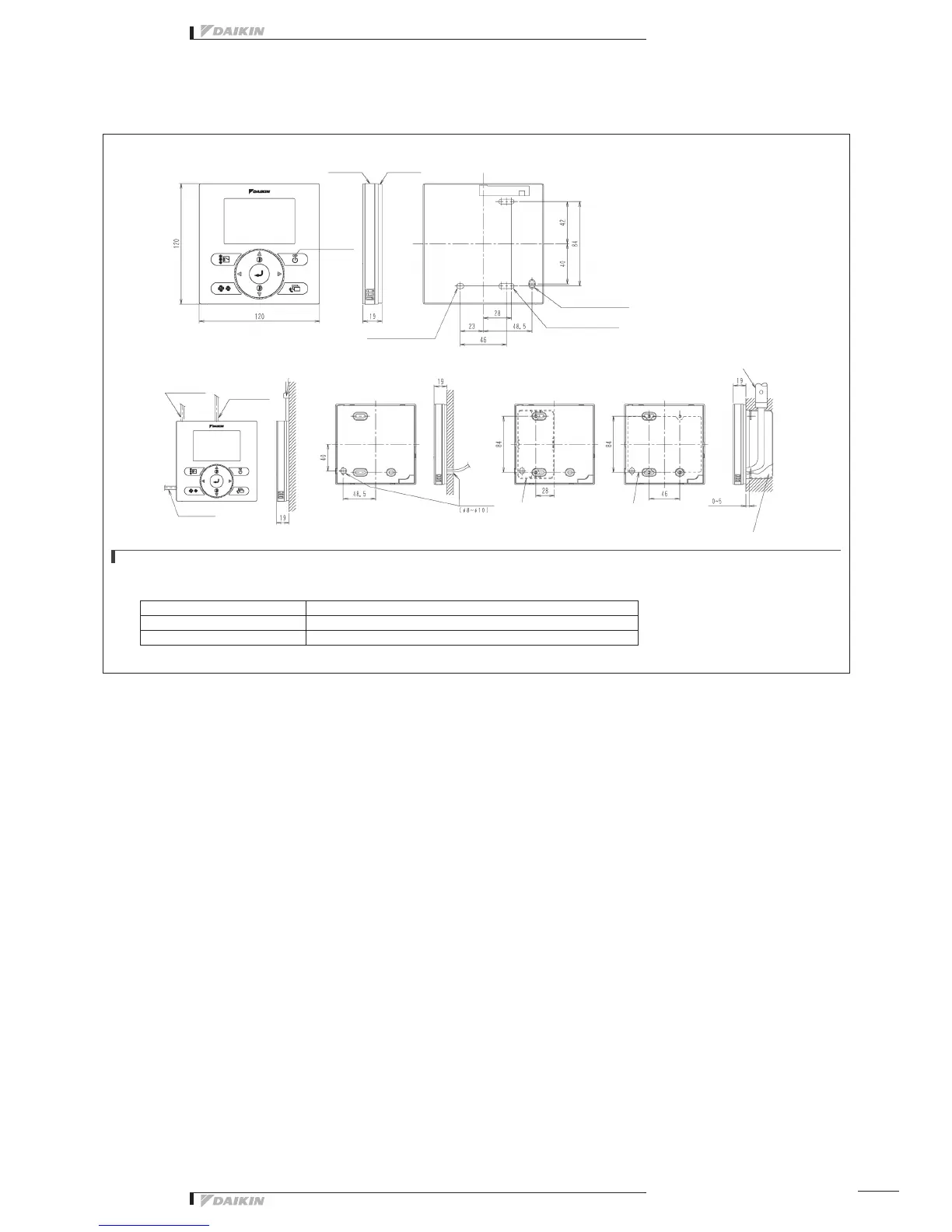

Dimensional drawing
3D064037
BRC1E52A7
BRC1E52B7
• remote control dimensions
• Installation method
B) Embedded Cord
NOTES
1. Remotecontrolcordandstaplearenotattached,theyareeldsuppliedparts.
 Specicationsofcord
Type Vinyl cord with sheath or cable (insulated thickness: 1mm or more)
Size 0.75~1.25mm
2
Total length 500m
2. Iftheholesizeistoolargeorthelocationisnotproper,theholemaycomeoutfromtheremotecontrol.
C) Embedded Cord ( Use Switch Box )A) Exposed Cord
Upper outlet
Upper center
outlet
Leftoutlet
Lower case portion
Lower case portion
Note 2
through hole
5x15 oblong hole
Lower case
Operation
lamp
(green)
Upper case
5x7 oblong hole
Code outlet hole
Switchboxforoneswitchex.
KJB111A (optional accessory)
Switchboxfortwoswitchex.
KJB211A (optional accessory)
(Between remote
control and control
box)
Condit
Switch box
[Field supplied part]
