• Control systems
• Individual control systems • ARC*/BRC*
BRC1D52 - Wired remote control

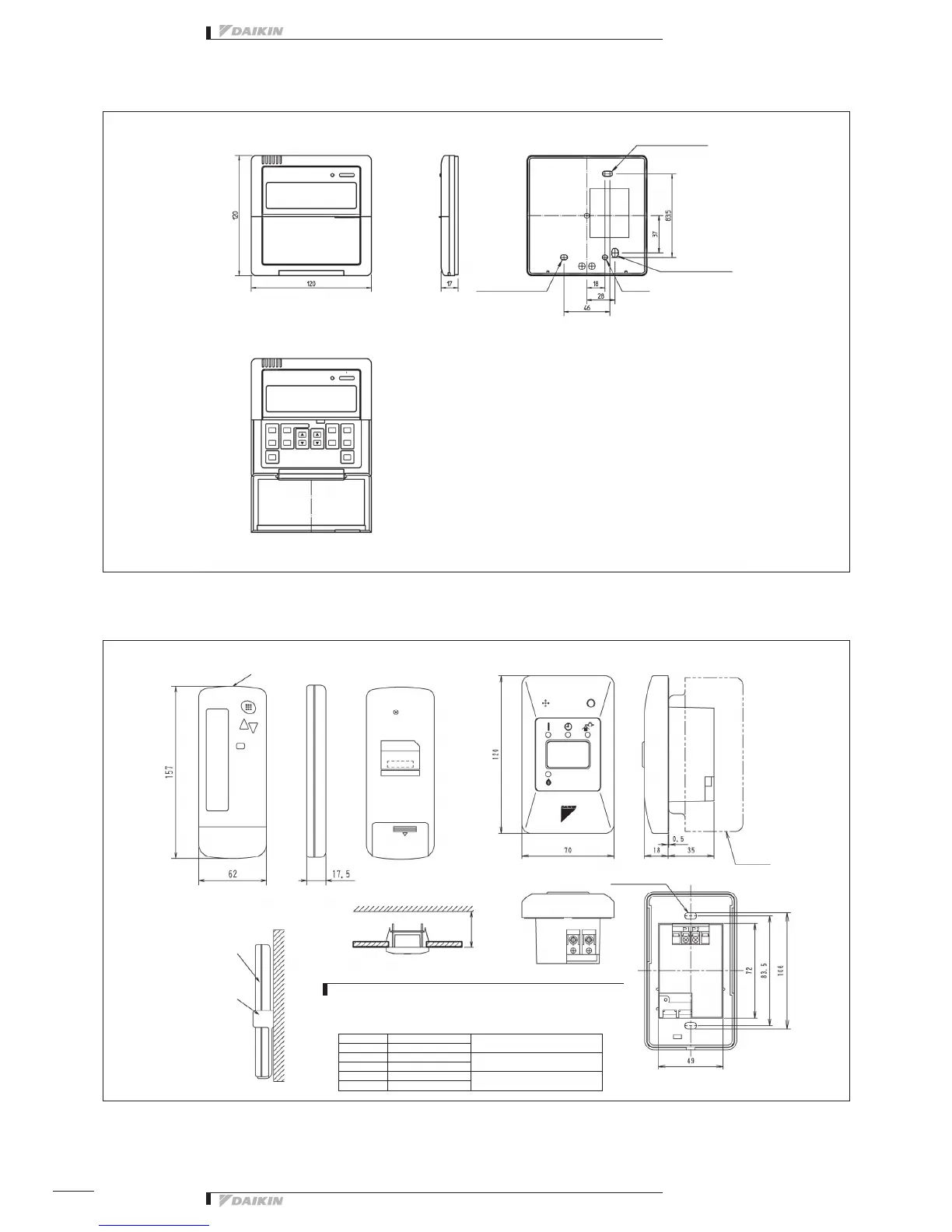

Dimensional drawing
BRC4C61,62,65 - Infrared remote control
Dimensional drawing
3D007898B
(Unit: mm)
(Unit: mm)
3TW23651-2
Cover closed
Cover open
• REMOTE CONTROL DIMENSIONS • RECEIVER DETAIL
• REMOTE CONTROL HOLDER
INSTALLATION PROCEDURE
(INSTALLATION TO WALL SURFACE)
Liquid crystal remote control
(wireless)
Remote control holder
•Servicespaceforceilinginstallation
more
than 90
(service space)
(Ceiling opening)
(Ceiling opening)
Transmitting part
5 x 7 (Round end slit) Hole Ø5
6.5 x 9 (Round end slit)
5 x 10 (Round end slit)
3D007898B
NOTE
1. Donotinstallmorethan3receiversinthevincityofoneanother.
2. With4ormoreunits,thereisalwaysthepossibilityofmalfunction
BRC4C62 Heat pump
FXDQ-M9, FXDQ-PB/NB, FXLQ,
FXNQ
BRC4C64 Cooling only
BRC4C61 Heat pump
FXKQ
BRC4C63 Cooling only
BRC4C65 Heat pump
FXSQ, FXMQ-P, FXMQ-MA
BRC4C66 Cooling only
2 - 5x9 Slot
Switch box
(Field supplied parts)
