152 Removal Procedure
Step Procedure Points
6
7

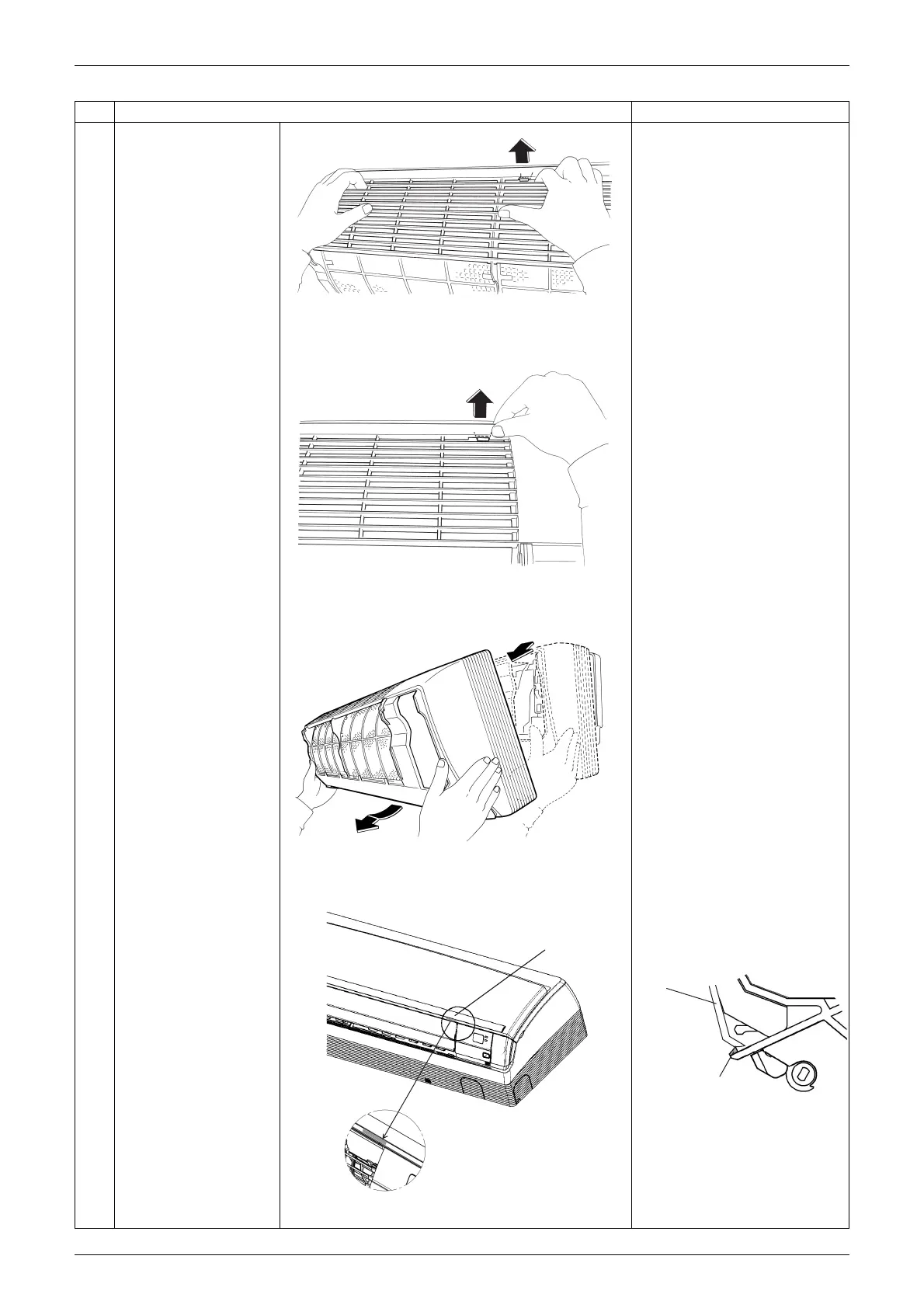

Put your fingers into the
front grille and lift the
grille up to unfasten the
center hook.
Unfasten the right hook
also by putting your
fingers into the grille
and lifting it.
8
Remove the front grille
by tilting the upper part
to the front (a) and
lifting and pulling the
lower part toward
yourself (b).
Caution on Mounting

When mounting the front
grille, make sure that the
hooks are fastened as they
were.

When mounting the front
grille, be sure not to get it
stuck on the spacer of the
drain pan.
b
a
(R4325)
(R4326)
(R4327)
Spacer
(R4856)
Front grille
Spacer
Section View
(R4590)
