R60DSG Si01-501
226 Removal Procedure
5.4 Removal of the Reactor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
Removing the electrical box.

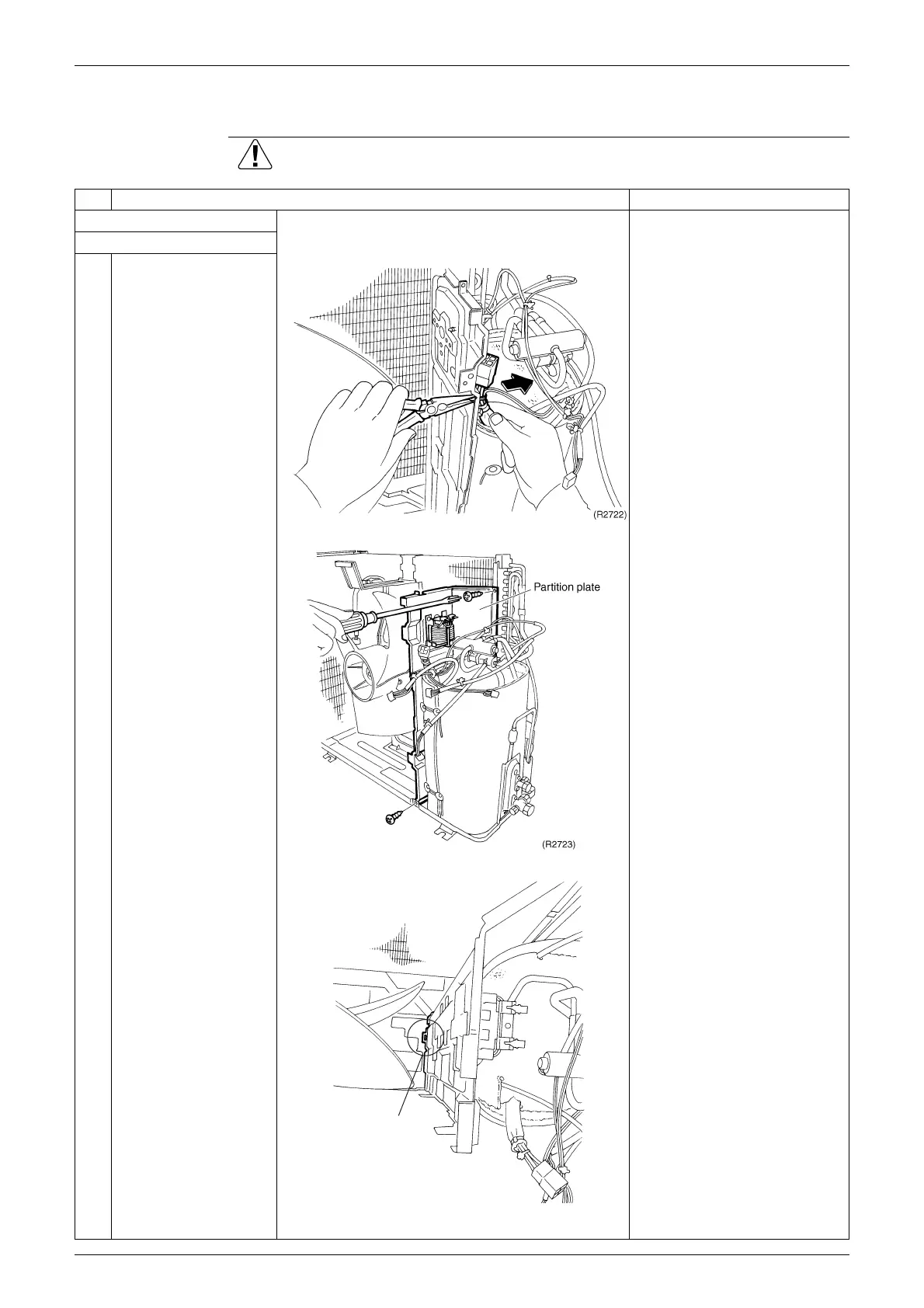

1. Removing the partition plate.
1
Release the clamp by
pliers.
2
Loosen the two screws
of the partition plate.
The partition plate is fixed to
the bottom frame with a
claw.
(R2724)
Claw
