R25/35DV1 Si01-501
200 Removal Procedure

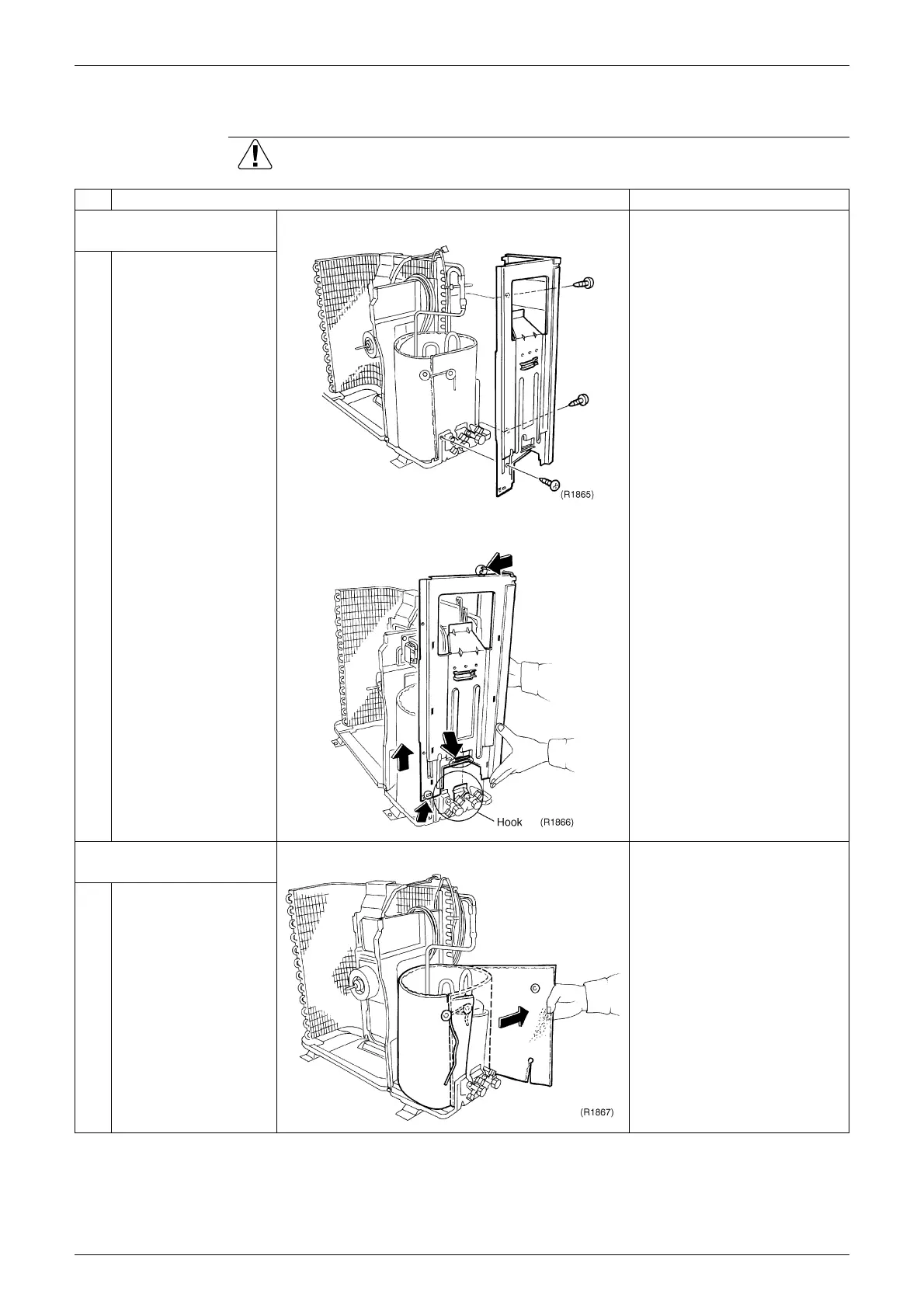

3.5 Removal of Sound Blanket
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Removing the right side
plate.
1
Remove the three
screws for removing the
right side plate.
2
Lift the right side plate
to disengage the hooks.
Insert the three hooks for the
restoration.
2. Removing the noise
absorber
Since the slit prepared for
the piping connection on the
sound blanket is torn easily,
remove it carefully.
When restoring, the sound
blanket should pass the
internal side of the piping.
1
Untie the string fixing
the body of the sound
blanket.
To Next Page
