Functions of FT60D Model Si01-501
32 Defails of Functions
2.2 Power-Airflow Dual Flaps, Wide Angle Louvers and
Auto-Swing
Power-airflow
Dual Flaps
The large flaps send a large volume of air downwards to the floor. The flap provides an optimum
control area in cooling and dry mode.
Cooling Mode
During cooling mode, the flap retracts into the indoor unit. Then, cool air can be blown far and
pervaded all over the room.
Wide-Angle
Louvres
The louvres, made of elastic synthetic resin, provide a wide range of airflow that guarantees a
comfortable air distribution.

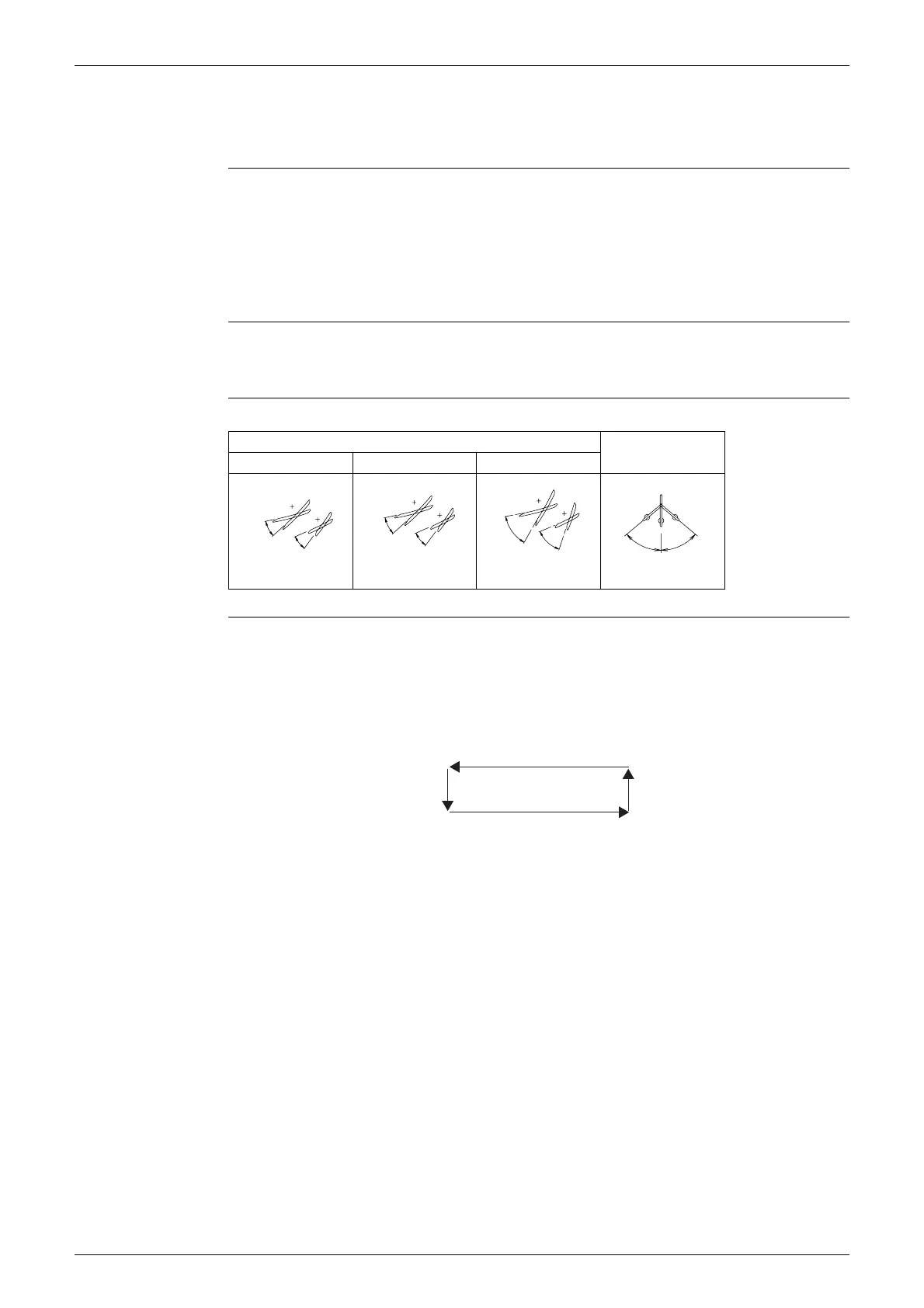

Auto-Swing The following table explains the auto-swing process for cooling, dry, and fan :
3-D Airflow
Alternative repetition of vertical and horizontal swing motions enables uniform air-
conditioning of the entire room. This function is effective for starting the air conditioner.
When the horizontal swing and vertical swing are both set to auto mode, the airflow become
3-D airflow and the horizontal swing and vertical swing motions are alternated. The order of
swing motion is such that it turns counterclockwise, starting from the right upper point as
viewed to the front side of the indoor unit.
Vertical Swing (up and down)
Horizontal Swing
(right and left)
Cooling Dry Fan
10˚
40˚
10˚
40˚
(R2814)
5˚
35˚
5˚
35˚
(R2815)
5˚
55˚
5
˚
55˚
(R2816)
50˚
50˚
(R2817)
(R1024)
To Next Page
