Si01-501 R25/35DV1
Removal Procedure 197

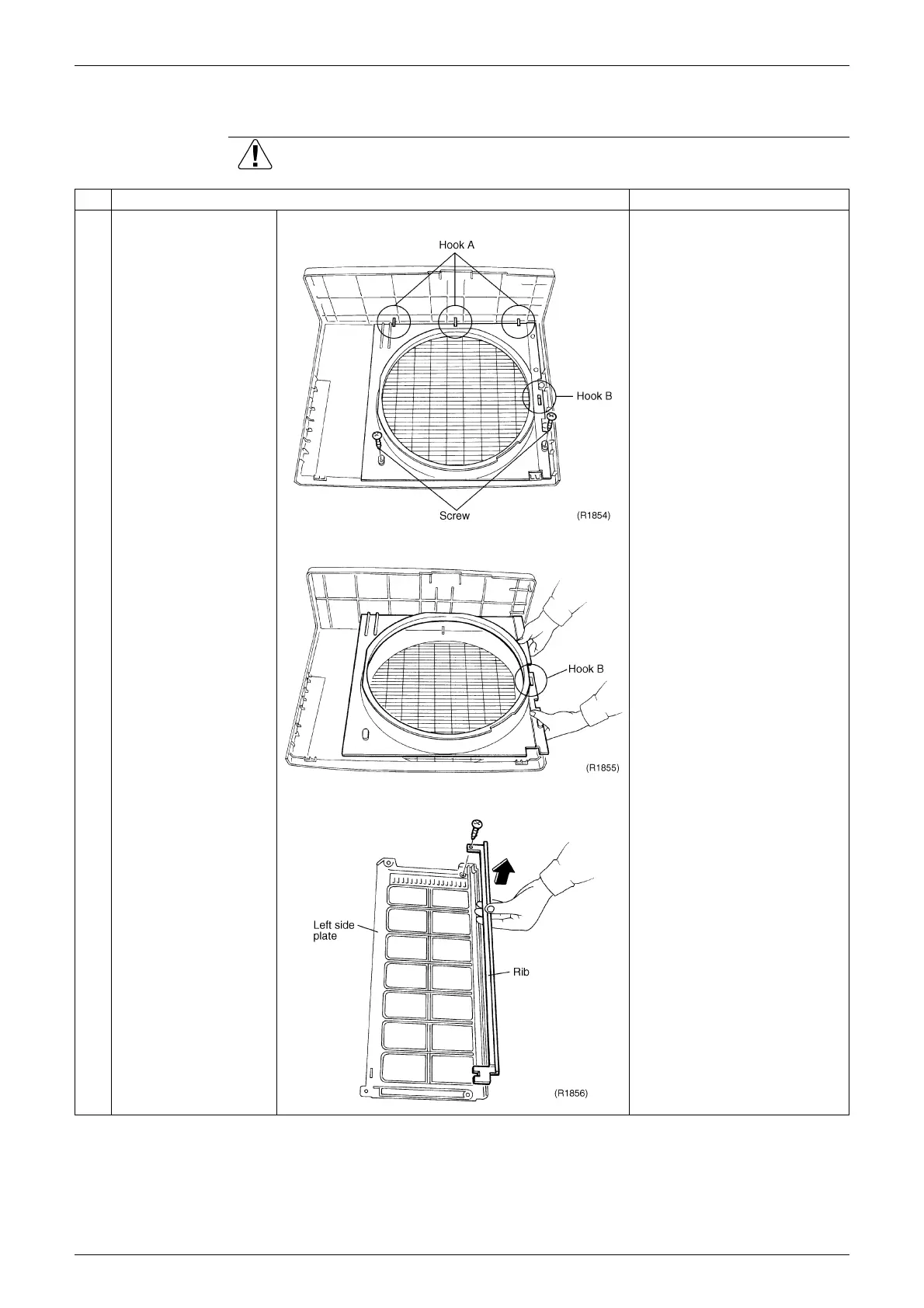

3.2 Removal of Bellmouth and Left Side Plate
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
The bellmouth is
attached with two
screws and four hooks.
Remove the bellmouth,
beginning the front plate
after removing the two
screws which are set below.
2
Remove the two screws
and pull the bellmouth
forward to remove, as
the four hooks are
provided.
Slide the bellmouth in the
arrow direction to disengage
the hook B.
3
The rib is equipped on
the left side plate and it
can be disengaged
when the one fixed
screw is removed.
To Next Page
