Si01-501 R50DSG
Removal Procedure 209
4.3 Removal of Compressor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
Make sure that there is no
refrigerant in the unit
before disassembling.
WARNING
If refrigerant gas leaks during
servicing work, ventilate the
area. (If refrigerant gas
contacts flames, hazardous
gas can generate.)
When removing sound
blanket, do not pull it with
excessive force, since it is
inserted between pipes.

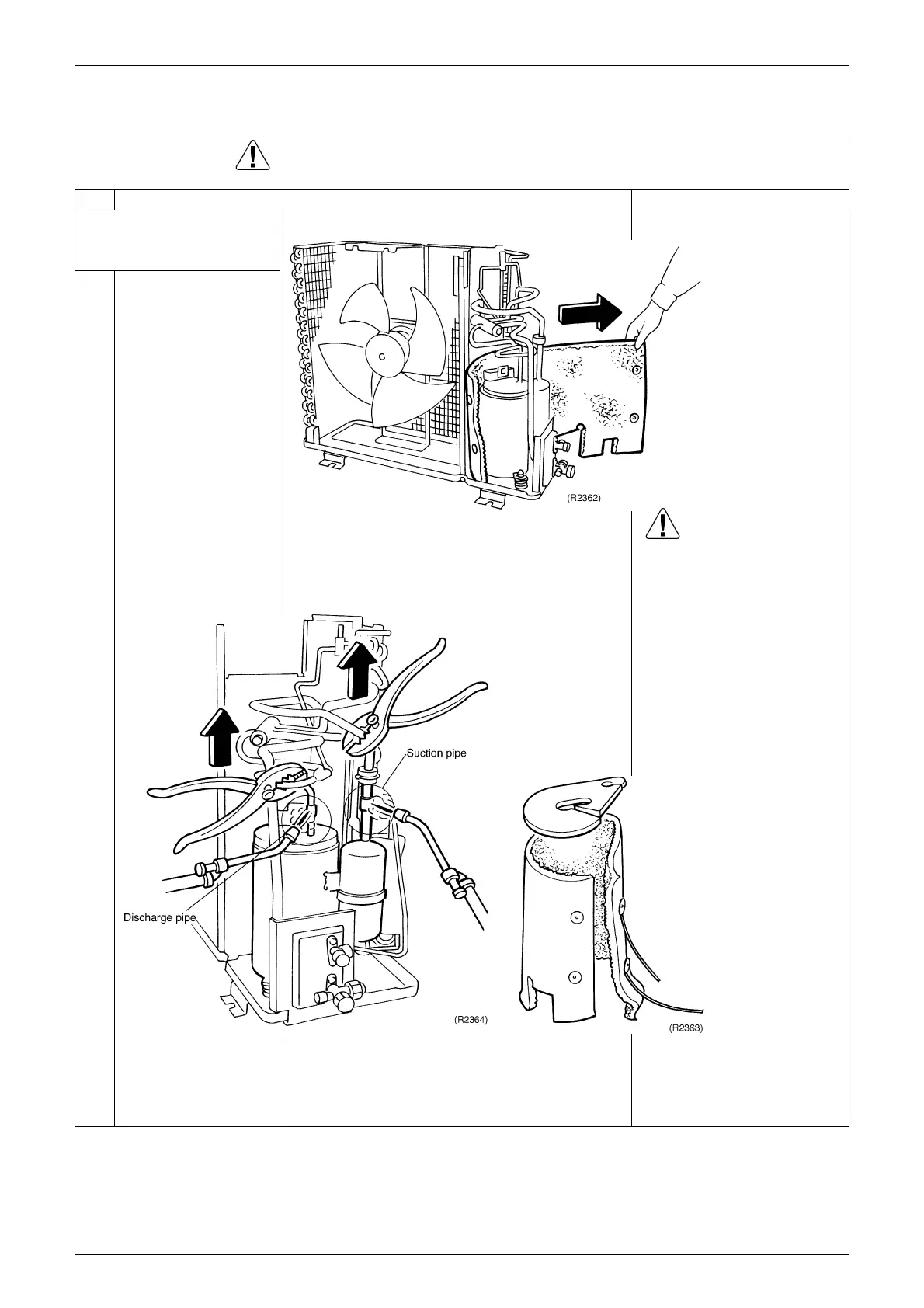

1
Pull out sound blanket
(side insulation) from
right side.
2
Disconnect suction pipe
and discharge pipe of
compressor at brazed
sections.
