Si01-501 R60DSG
Removal Procedure 219

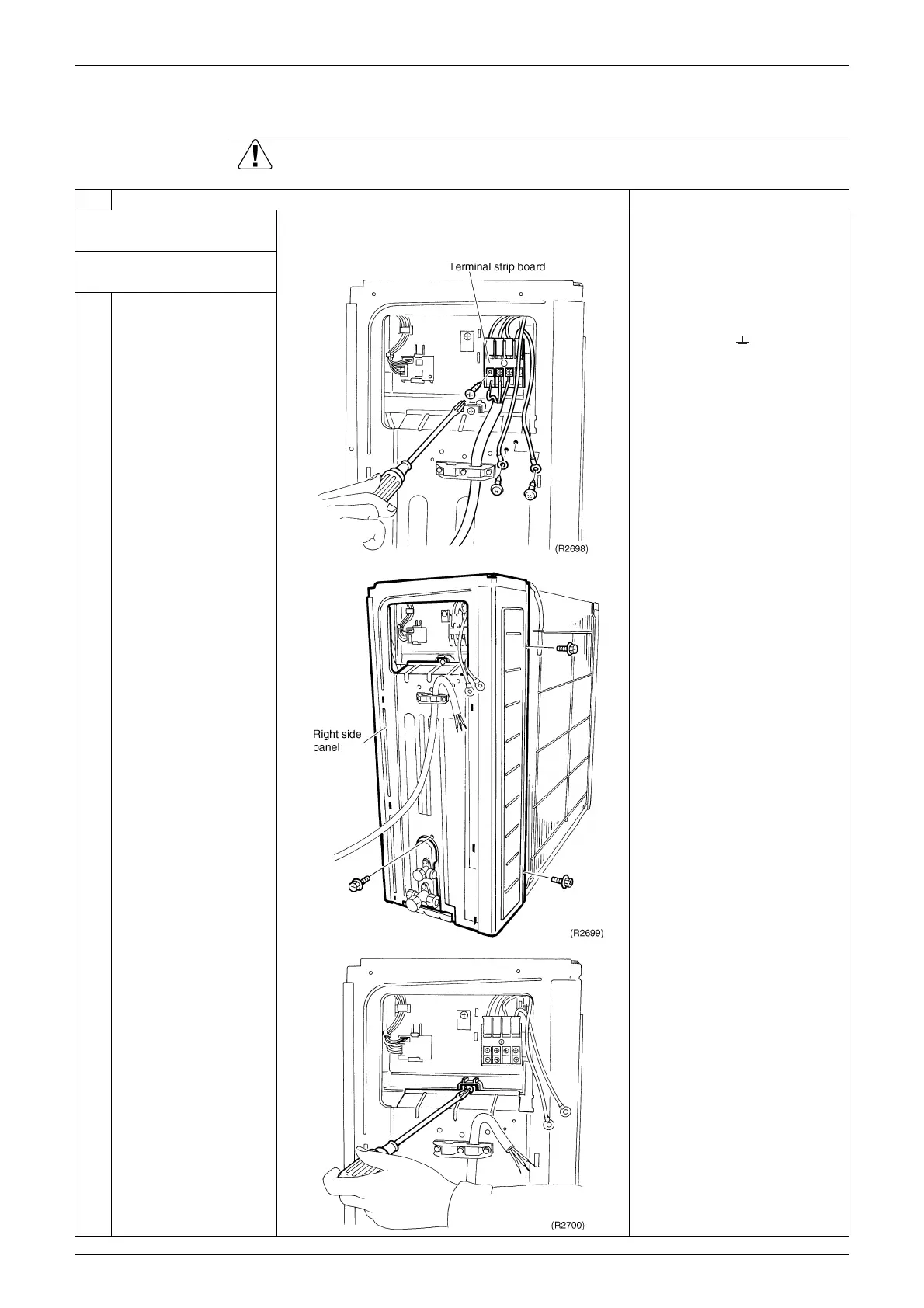

5.3 Removal of the PCB / Electrical Box
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
Removing the top panel
and the front panel.
1. Removing the right side
panel.
Terminal strip number
black (1) ----- power supply
white (2) ----- power supply
red (3) ----- transmission
yellow / green ( ) ----- earth
1
Disconnect the three
connection wirings and
the two earth wires.
2
Loosen the three
screws of the right side
panel.
3
Loosen the fixing screw
of the electrical box.
