FT09/13DV2S, FT25/35DVM, FT25/35DSG Si01-501
156 Removal Procedure

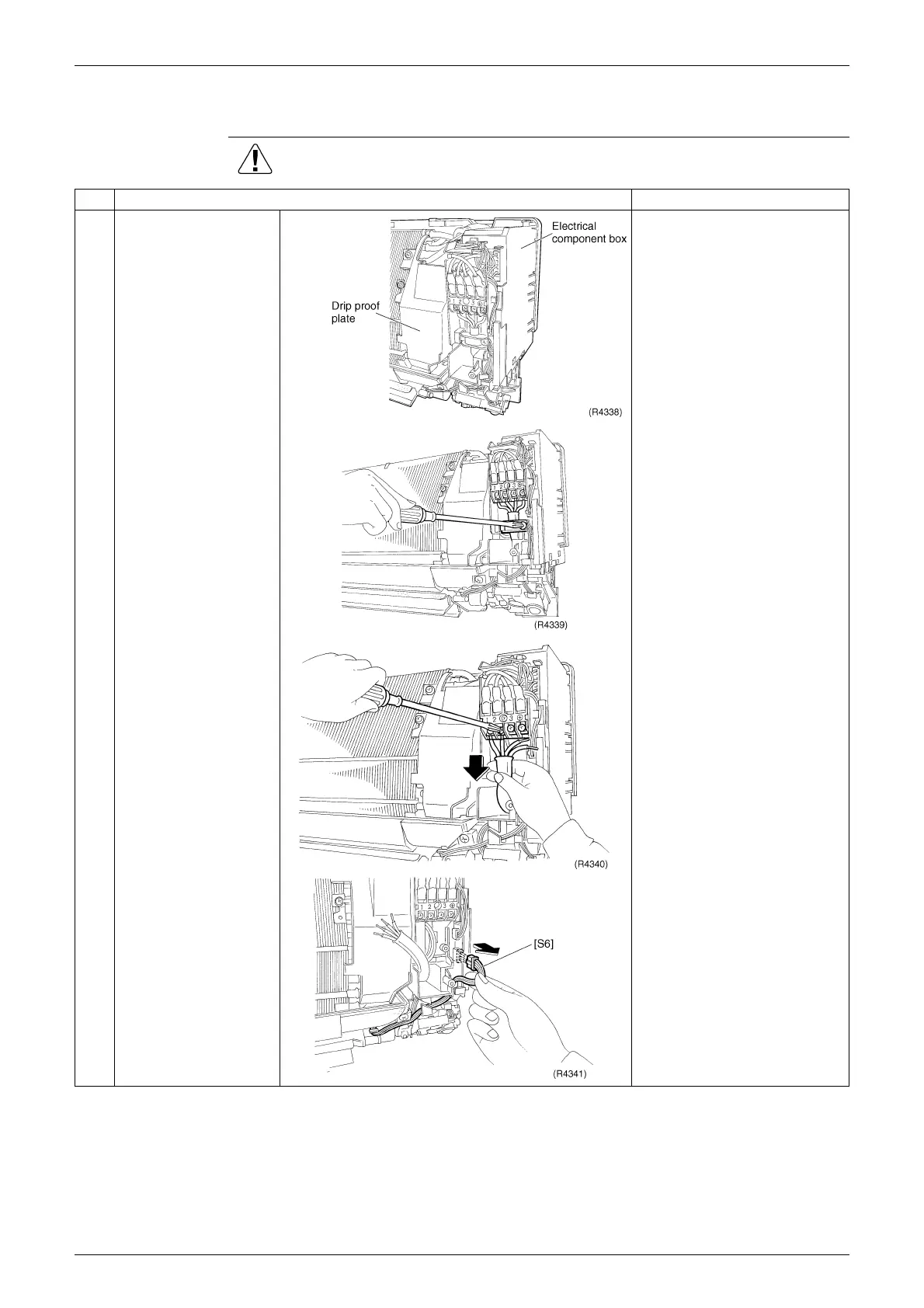

1.5 Removal of Electrical Box
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1
2
3
4
The figure shows the
connections of wire
harnesses.
Remove the screw of
the electric wire
retaining plate.
Loosen the screws of
the terminal board and
disconnect the
connecting wires.
Remove the connector
of the swing motor [S6].
Preparation
Remove the front grille
according to the “Removal
of Front Grille.”
To Next Page
