Daikin FT25DVM Service Manual

Si01-501 FT15DV2S, FT50/60DSG
Removal Procedure 185

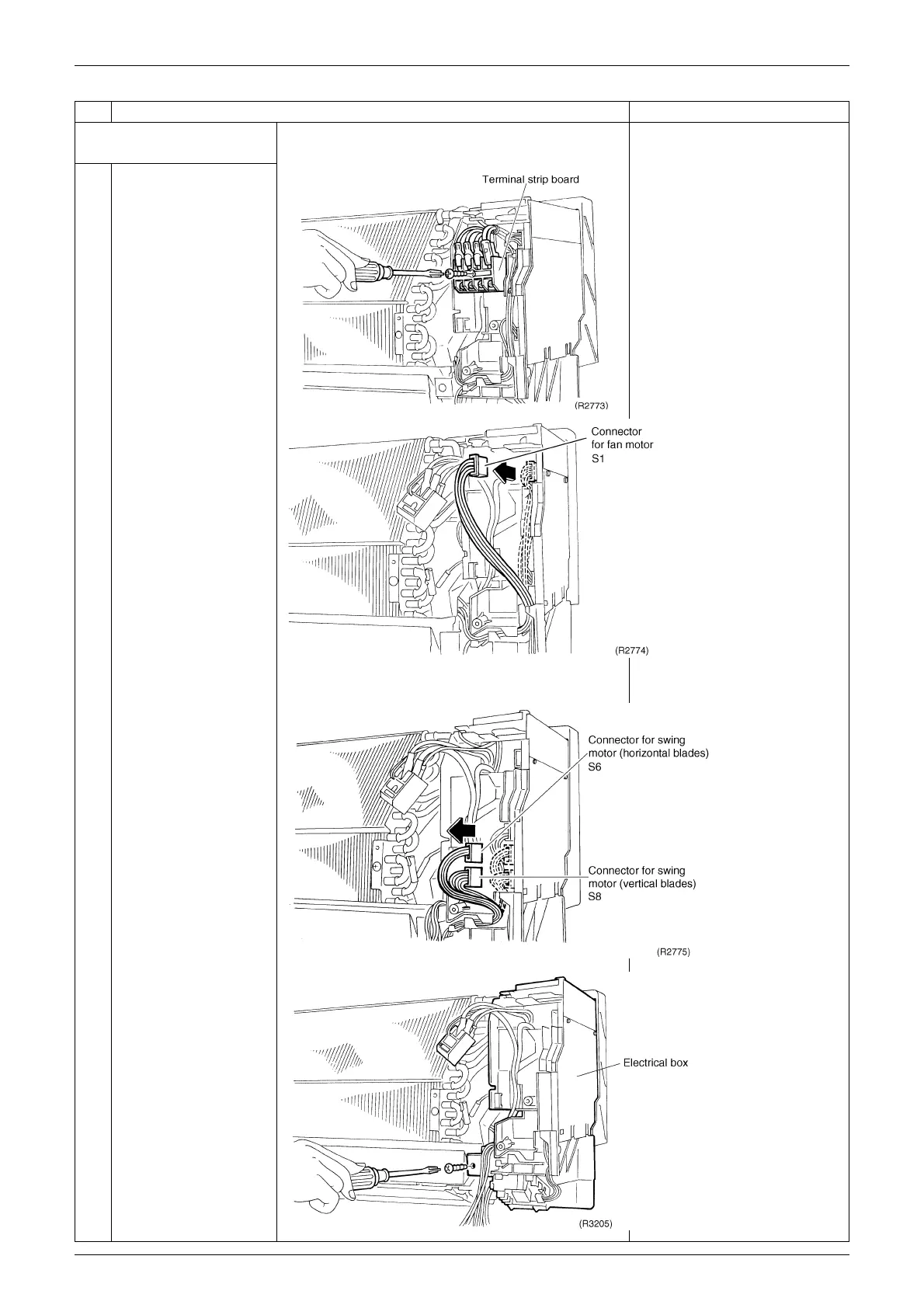

4. Removing the electrical
box.
1
Disconnect the four
connection wirings.
Loosen the screw and
remove the terminal
strip board.

You can remove the
electrical parts box without
detaching the terminal strip
board.

Screw: M4×25
2
Disconnect the
connectors for fan
motor (S1).
3
Disconnect the
connectors for swing
motor (S6, S8).

S8: for FT50/60DSG
models only
4
Loosen the fixing screw
of the electrical box.
Step
Procedure Points
