Si18-201 Outdoor Unit
Removal Procedure 329
2.3 Removal of Propeller Fans and Fan Motors
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
"
Detach the front panel,
front piping cover, etc.,
referring to the
instructions in "Removal
of Outer Panels".

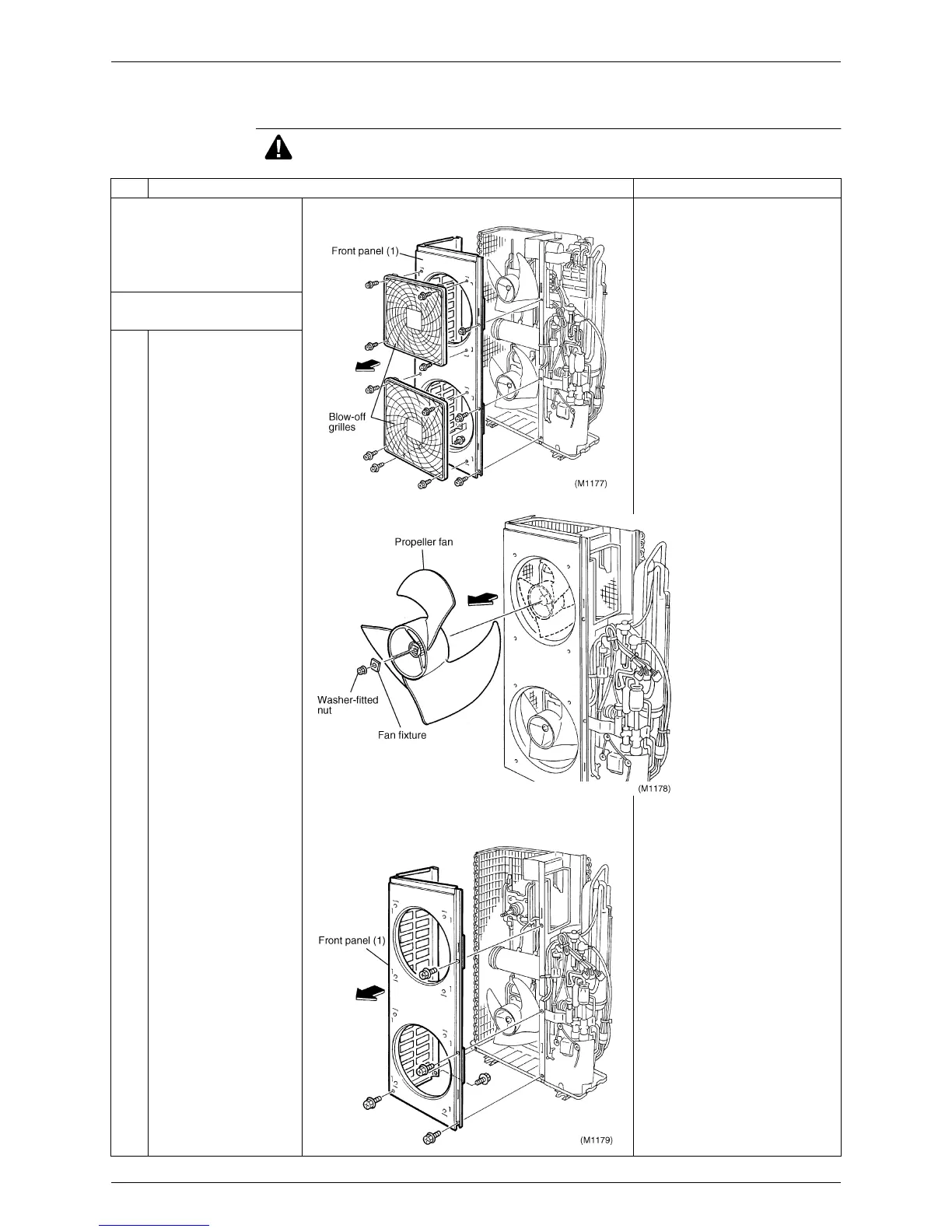

1. Detaching the propeller
fans
1
Remove the four blow-
off grille lock screws.
Undo the four top and
bottom hooks to take
out the blow-off grilles.
2
Remove the washer-
fitted nuts and fixtures
from the propeller fans.
3
Remove the five
screws from the front
panel (1). Push up the
panel out of position.
"
To disconnect the fan motor
leads, detach the front panel
(1) first.
