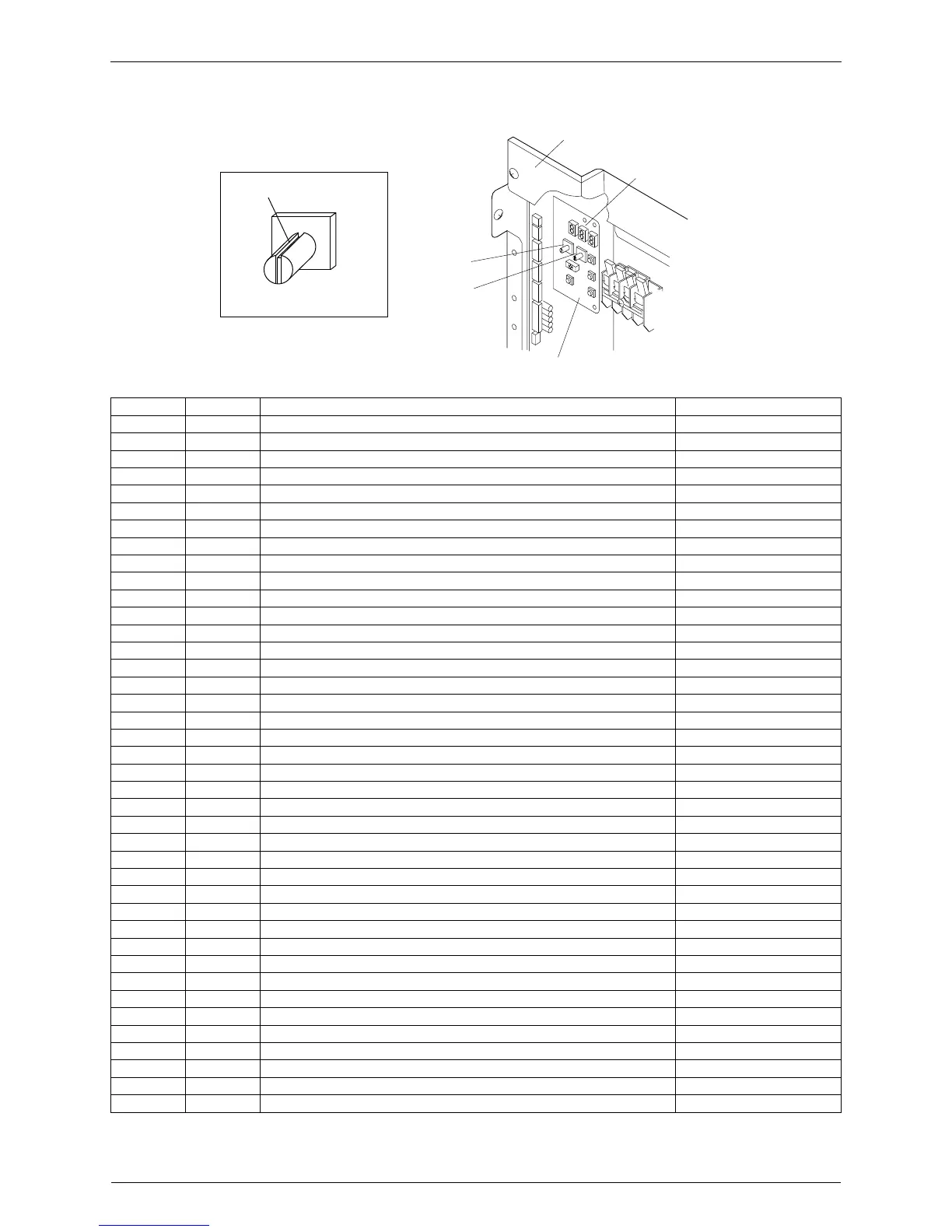

2.3 Outdoor Unit Rotary Switch Setting
* RAM View Monitor
RSW1 RSW2 Remarks Unit
0 0 Latest (status) error code Error code
0 1 Latest (status) error spot Standard
0 2 Current run mode Status
0 3 Current 4-way valve Status
0 4 Current operating frequency (Hz) Frequency
0 5 Current EVP EV openness
0 6 Current EVG EV openness
0 7 Current EVL EV openness
0 8 Current fan (upper) Fan rpm
0 9 Current fan (lower) Fan rpm
1 0 Current input current Ampere
1 1 Current total input current Ampere
1 2 Current high pressure (calculated) Pressure
1 3 Current suction pressure Pressure
1 4 Current outdoor temperature Temp. offset 40h
1 5 Current discharge temperature Temperature
1 6 Current suction temperature Temp. offset 40h
1 7 Current outdoor heat exchange temperature Temp. offset 40h
1 8 Current outdoor fluid pipe temperature Temp. offset 40h
1 9 Current fin temperature Temperature
2 0 Current box temperature Temp. offset 40h
2 1 Current BP 1 Room-A motorized valve openness EV openness
2 2 Current BP 1 Room-B motorized valve openness EV openness
2 3 Current BP 1 Room-C motorized valve openness EV openness
2 4 Current BP 2 Room-A motorized valve openness EV openness
2 5 Current BP 2 Room-B motorized valve openness EV openness
2 6 Current BP 2 Room-C motorized valve openness EV openness
2 7 Current BP 3 Room-A motorized valve openness EV openness
2 8 Current BP 3 Room-B motorized valve openness EV openness
2 9 Current BP 3 Room-C motorized valve openness EV openness
30
3 1 Current BP 1 Room-A fluid pipe temperature Temp. offset 40h
3 2 Current BP 1 Room-B fluid pipe temperature Temp. offset 40h
3 3 Current BP 1 Room-C fluid pipe temperature Temp. offset 40h
3 4 Current BP 2 Room-A fluid pipe temperature Temp. offset 40h
3 5 Current BP 2 Room-B fluid pipe temperature Temp. offset 40h
3 6 Current BP 2 Room-C fluid pipe temperature Temp. offset 40h
3 7 Current BP 3 Room-A fluid pipe temperature Temp. offset 40h
3 8 Current BP 3 Room-B fluid pipe temperature Temp. offset 40h
3 9 Current BP 3 Room-C fluid pipe temperature Temp. offset 40h
Switch Bo
Setting Position
x
Service Monitor
7 seg. display
SW1
SW1, SW2
SW2
(Q0008)
