10 Spyder 3 CL User's Manual
03-032-20008-00 DALSA

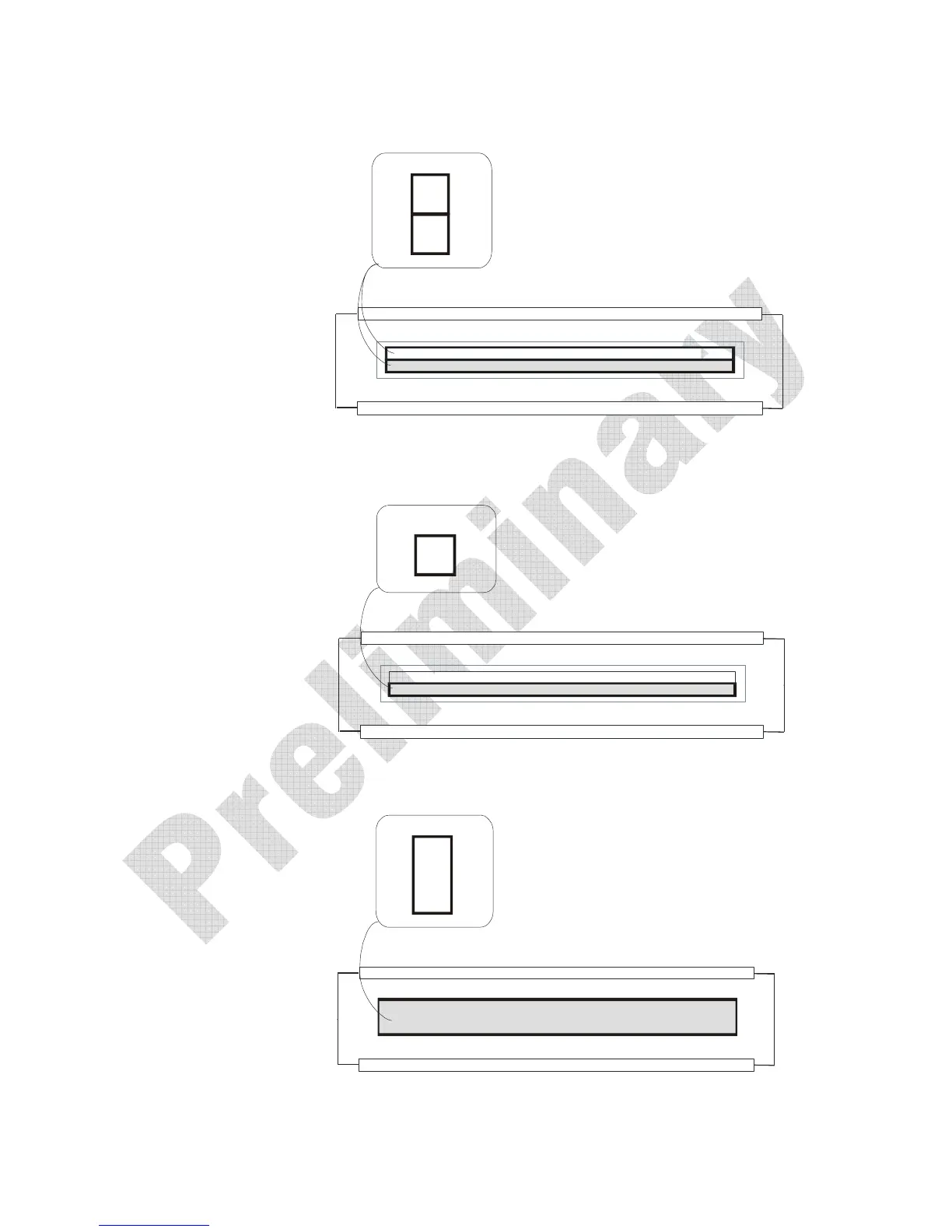

Figure 3: High Sensitivity Mode
In high sensitivity mode, the camera uses a 14μmx14μm pixel and captures the same image twice, creating a brighter image.
CCDReadoutShiftRegister
CCDReadoutShiftRegister
Sensor2(14μmx14μm)
Sensor1(14 μmx14 μm)
1
4
μ
m
14μm
1
4
μ
m
Pixel Detail
Figure 4: Low Sensitivity Mode
In low sensitivity mode, the camera uses a 14μmx14μm pixel and captures the image using one sensor (Sensor 1).
CCDReadoutShiftRegister
CCDReadoutShiftRegister
Sensor2(14μmx14μm)
Sensor1(14μmx14μm)
14μm
1
4
μ
m
Pixel DetailPixel Detail
Figure 5: Tall Pixel Mode
In tall pixel mode, the camera uses a 28μmx14μm pixel and captures an image two times taller than in high or low sensitivity
mode, creating a taller image.
CCDReadoutShiftRegister
CCDReadoutShiftRegister
Sensor1and2(28μmx14μm)
2
8
μ
m
14μm
Pixel Detail
To Next Page
