Spyder 3 CL User's Manual 31
DALSA 03-032-20008-00

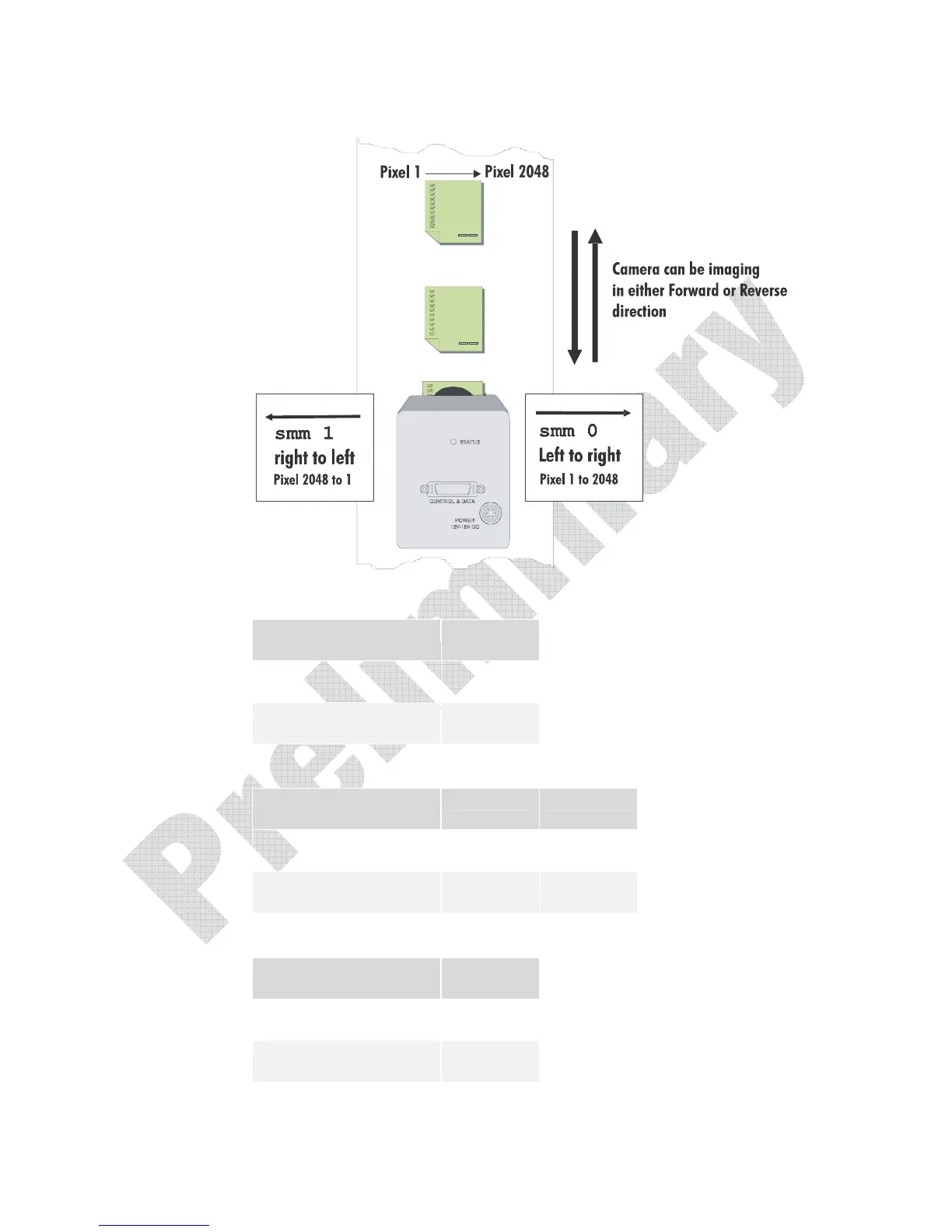

Figure 16: Camera Pixel Readout Direction Example using 4k Model with Inverting Lens
Table 10: S3-10-01K40 Forward or Reverse Pixel Readout
Camera Link Readout
Direction
Tap 1
Left to Right
Software command smm 0
1-1024
Right to Left
Software command smm 1
1024-1
Table 11: S3-20-01K40 Forward or Reverse Pixel Readout
Camera Link Readout
Direction
Tap 1 Tap 2
Left to Right
Software command smm 0
1-512 513-1024
Right to Left
Software command smm 1
1024-513 512-1
Table 12: S3-10-02K40 Forward or Reverse Pixel Readout
Camera Link Readout
Direction
Tap 1
Left to Right
Software command smm 0
1-2048
Right to Left
Software command smm 1
2048-1
