2. Torque the orifices to 4 N•m [2.95 lbf•ft].
C
Caution
Do not overtorque orifices
Assembly orientation
T3**
T1**
T2**
U5**
G90
S10
S20
S10*
(060, 080
110)
S10*
(160, 250)
J30
J10*
J20/S70
T7**
T8**
F324
F32
G30A
G30
G12
G12A
G30A
G30
G36
G42
G38
G42
G38
M22
P101 240
Legend for T7/T8
use a 2.5 mm hex wrench
for 60 cm³, 80 cm³, 110 cm³, 160 cm³, 250 cm³ motors 4 N•m [2.95 lbf•ft]

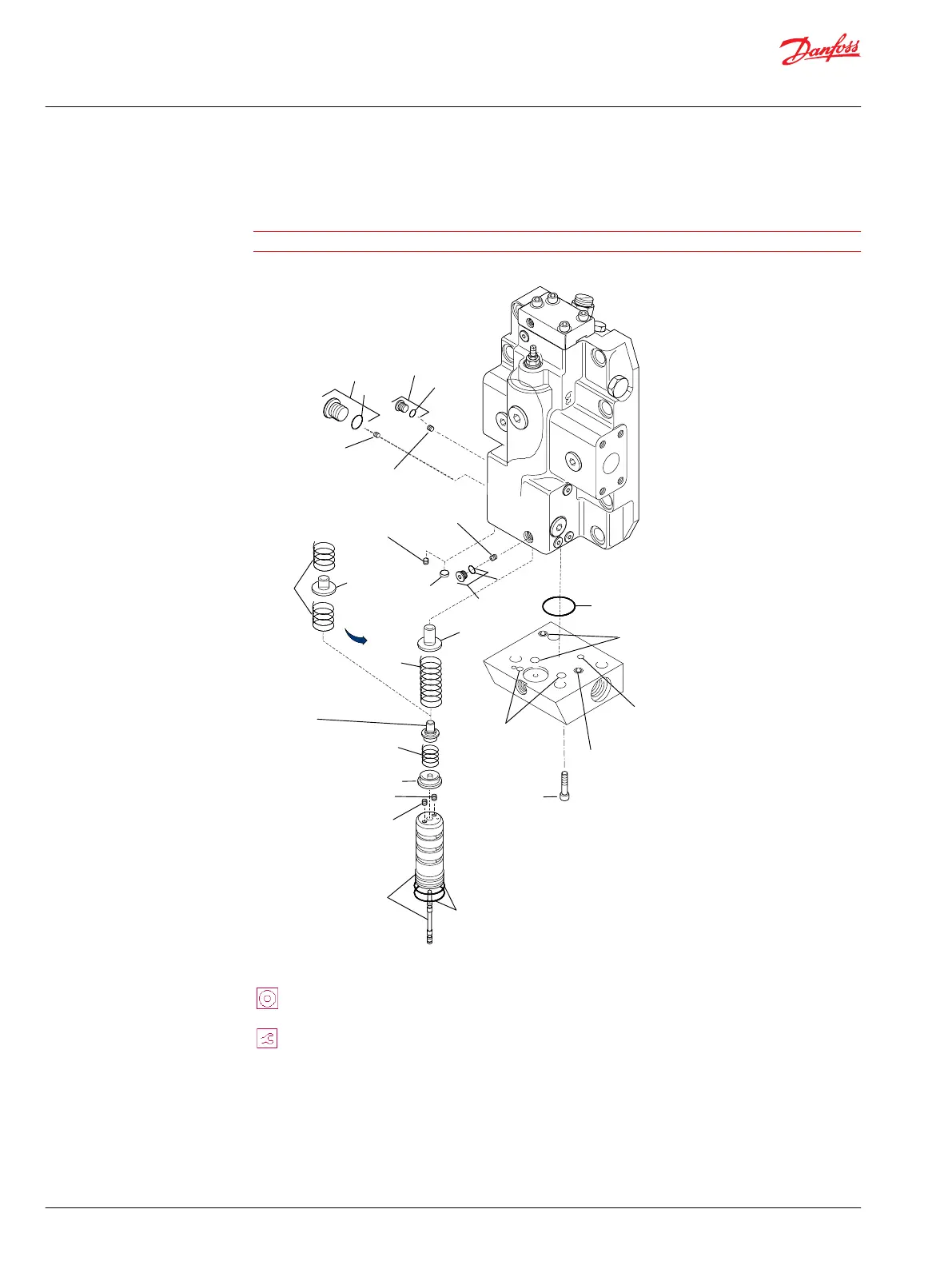

3. Install new O-rings (F324) on to the 4-way valve sleeve (F32).
Service Manual
Series 51 and 51-1 Motors
Minor repair
58 |
©
Danfoss | March 2016 11008567 | AX00000013en-US0202
