GENERAL INFORMATIONPRODUCT INFORMATIONSYSTEM DESIGNINTEGRATION INTO SYSTEMORDERING INFORMATION

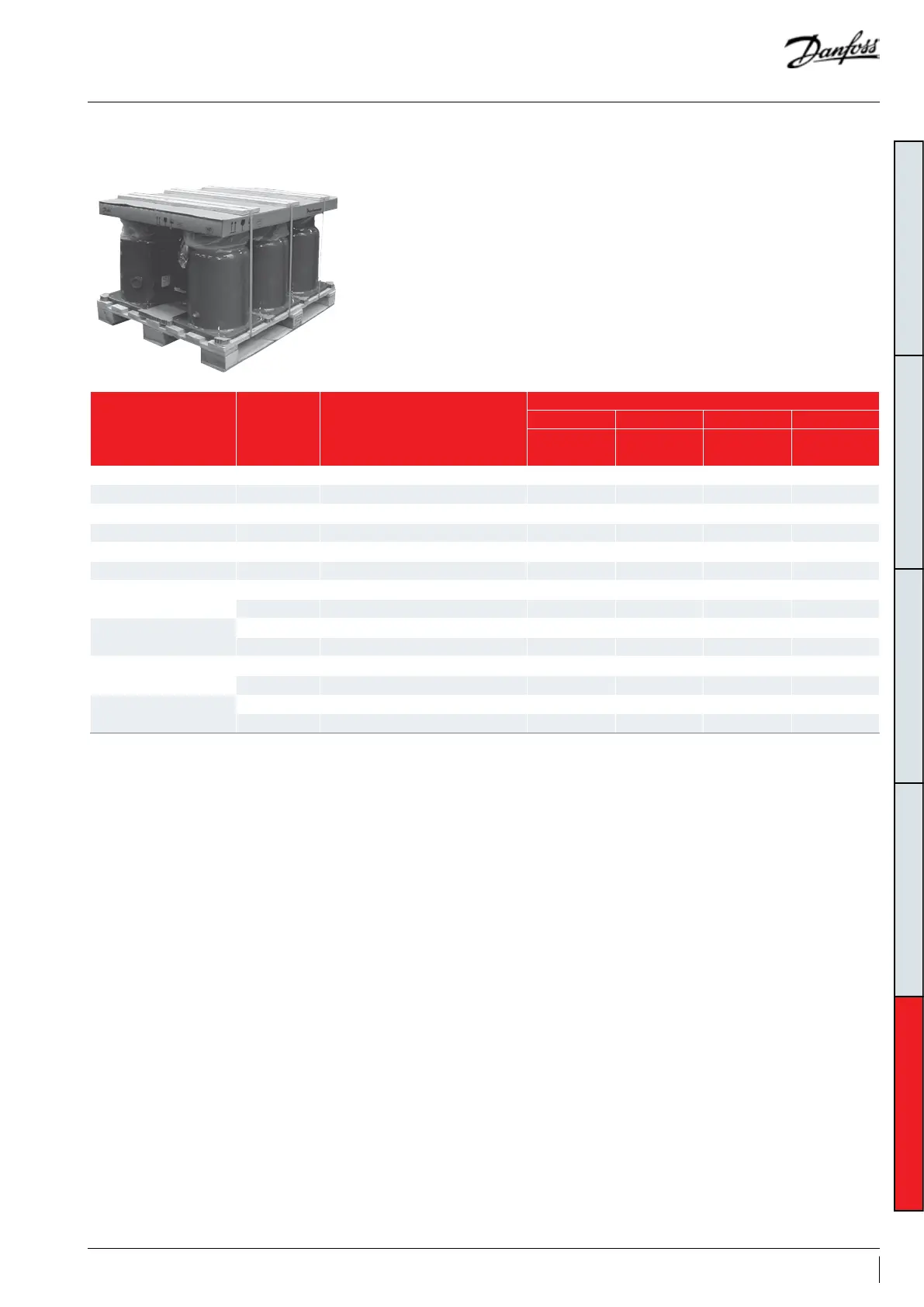

Ordering codes
Compressor model Connections
Motor
protection
Code no.
3 4 7 9
200-230/3/60
380-415/3/50
460/3/60
575/3/60 380-400/3/60
DSH090 Brazed Internal 120H1181 120H1183 120H1185 120H1187
DSH105 Brazed Internal 120H1189 120H1191 120H1193 120H1195
DSH120 Brazed Internal 120H1197 120H1199 120H1201 120H1203
DSH140 Brazed Internal 120H1205 120H1207 120H1209 120H1211
DSH161 Brazed Internal 120H1213 120H1215 120H1217 120H1219
DSH184 Brazed Internal 120H1221 120H1223 120H1225 120H1227
DSH240
Brazed Module 24V AC* 120H1160 120H1120 - 120H1136
Brazed Module 110-240V * 120 H1162 120H1122 - 120H1138
DSH295
Brazed Module 24V AC* 120H116 4 120H1124 - 120H114 0
Brazed Module 110-240V * 120H1166 120H1126 - 120H1142
DSH381
Brazed Module 24V AC* 120H1168 120H1128 - 120H114 4**
Brazed Module 110-240V * 120H1170 120H1130 - 120H114 6**
DSH485
Brazed Module 24V AC* 120H110 4* * 120H1132 - 120H114 8
Brazed Module 110-240V * - 120H1134 - 120H1150
* Electronic motor protection, module located in terminal box
** Soon to be released
Mounting kit for DSH240-295-381-485 manifold configurations (one kit per compressor):
Ref 7777045 for 50Hz applications
Ref 120Z0495 for 60Hz applications
Industrial pack
57FRCC.PC.045.A7.02
