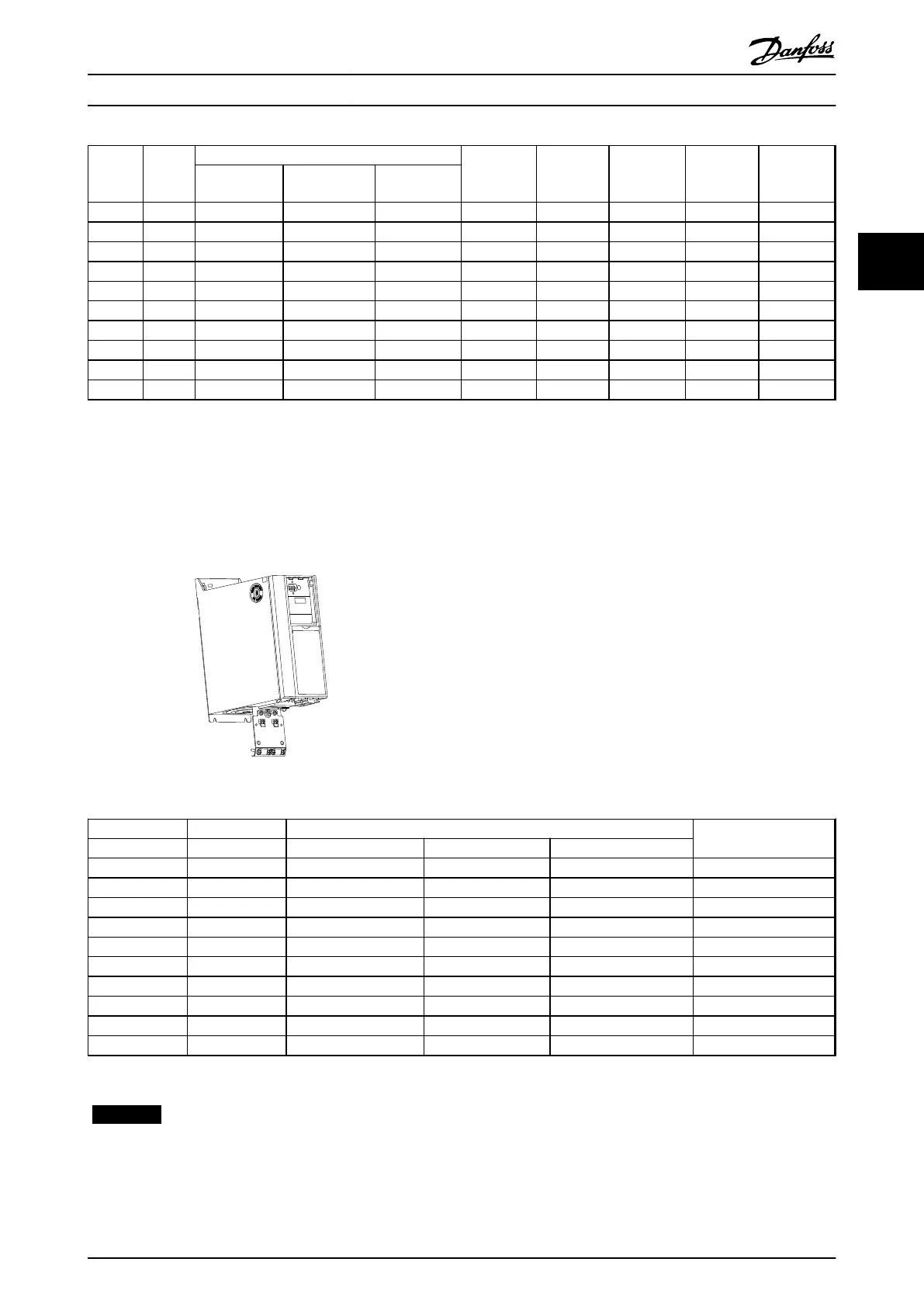

Danfoss FC 101 Design Guide

Frame IP class Power Height
[mm] A
Width
[mm] B
Depth [mm]
C
IP21 kit
ordering
no.
Type 1 kit
ordering no.
3 x 200-240 V 3 x 380-480 V 3 x 525-600 V
H1 IP20 0.25-1.5 kW 0.37-1.5 kW 293 81 173 132B0212 132B0222
H2 IP20 2.2 kW 2.2-4 kW 322 96 195 132B0213 132B0223
H3 IP20 3.7 kW 5.5-7.5 kW 346 106 210 132B0214 132B0224
H4 IP20 5.5-7,5 kW 11-15 kW 374 141 245 132B0215 132B0225
H5 IP20 11 kW 18.5-22 kW 418 161 260 132B0216 132B0226
H6 IP20 15-18.5 kW 30-45 kW 18.5-30 kW 663 260 242 132B0217 132B0217
H7 IP20 22-30 kW 55-75 kW 37-55 kW 807 329 335 132B0218 132B0218
H8 IP20 37-45 kW 90 kW 75-90 kW 943 390 335 132B0219 132B0219
H9 IP20 2.2-7.5 kW 372 130 205 132B0220 132B0220
H10 IP20 11-15 kW 475 165 249 132B0221 132B0221
Table 3.3 Enclosure Kit Specifications
3.1.4
Decoupling Plate
Use the decoupling plate for EMC correct installation.
Shown here on a H3 enclosure.
130BB793.10
99 99
Illustration 3.7 Decoupling Plate
Power [kW] Decoupling plate
Frame IP class 3 x 200-240 V 3 x 380-480 V 3 x 525-600 V
H1 IP20 0.25-1.5 0.37-1.5 132B0202
H2 IP20 2.2 2.2-4 132B0202
H3 IP20 3.7 5.5-7.5 132B0204
H4 IP20 5.5-7.5 11-15 132B0205
H5 IP20 11 18.5-22 130B0205
H6 IP20 15-18.5 30 18.5-30 132B0207
H6 IP20 37-45 132B0242
H7 IP20 22-30 55 37-55 132B0208
H7 IP20 75 132B0243
H8 IP20 37-45 90 75-90 132B0209
Table 3.4 Decoupling Plate Specifications
NOTICE
For H9 and H10 frequency converters, the decoupling plates are included in the accessory bag.
Selection
VLT
®
HVAC Basic Drive FC 101 Design Guide
MG18C502 - Rev. 2013-09-06 43
3 3

Danfoss FC 101 Specifications

General

Model	FC 101
Manufacturer	Danfoss
Protection Class	IP20
Relative Humidity	95% (non-condensing)
Communication Interface	RS-485
