6.3 Menus
6.3.1 Status Menu
In the Status menu the selection options are:
•
Motor Frequency [Hz], 16-13 Frequency
•
Motor Current [A], 16-14 Motor current
•
Motor Speed Reference in Percentage [%],
16-02 Reference [%]
•
Feedback, 16-52 Feedback[Unit]
•
Motor Power [kW] (if 0-03 Regional Settings is set
to [1] North America, Motor Power is shown in the
unit of hp instead of kW), 16-10 Power [kW] for
kW, 16-11 Power [hp] for hp
•
Custom Readout 16-09 Custom Readout
6.3.2
Quick Menu
Use the Quick Menu to programme the most common
VLT
®
HVAC Basic Drive functions. The Quick Menu consists
of:
•
Wizard for open loop applications
•
Closed loop set-up wizard
•
Motor set-up
•
Changes made
6.3.3
Start-up Wizard for Open Loop
Applications
The built-in wizard menu guides the installer through the
set-up of the frequency converter to an open loop
application. An open loop application is here an
application with a start signal, analog reference (voltage or
current) and optionally also relay signals (but no feed back
signal from the process applied).
FC
+24V
DIG IN
DIG IN
DIG IN
DIG IN
COM DIG IN
A OUT / D OUT
A OUT / D OUT
18
19
27
29
42
55
50
53
54
20
12
01
02
03
04
05
06
R2
R1
+
-
0-10V
Start
+10V
A IN
A IN
COM
130BB674.10
45
Reference

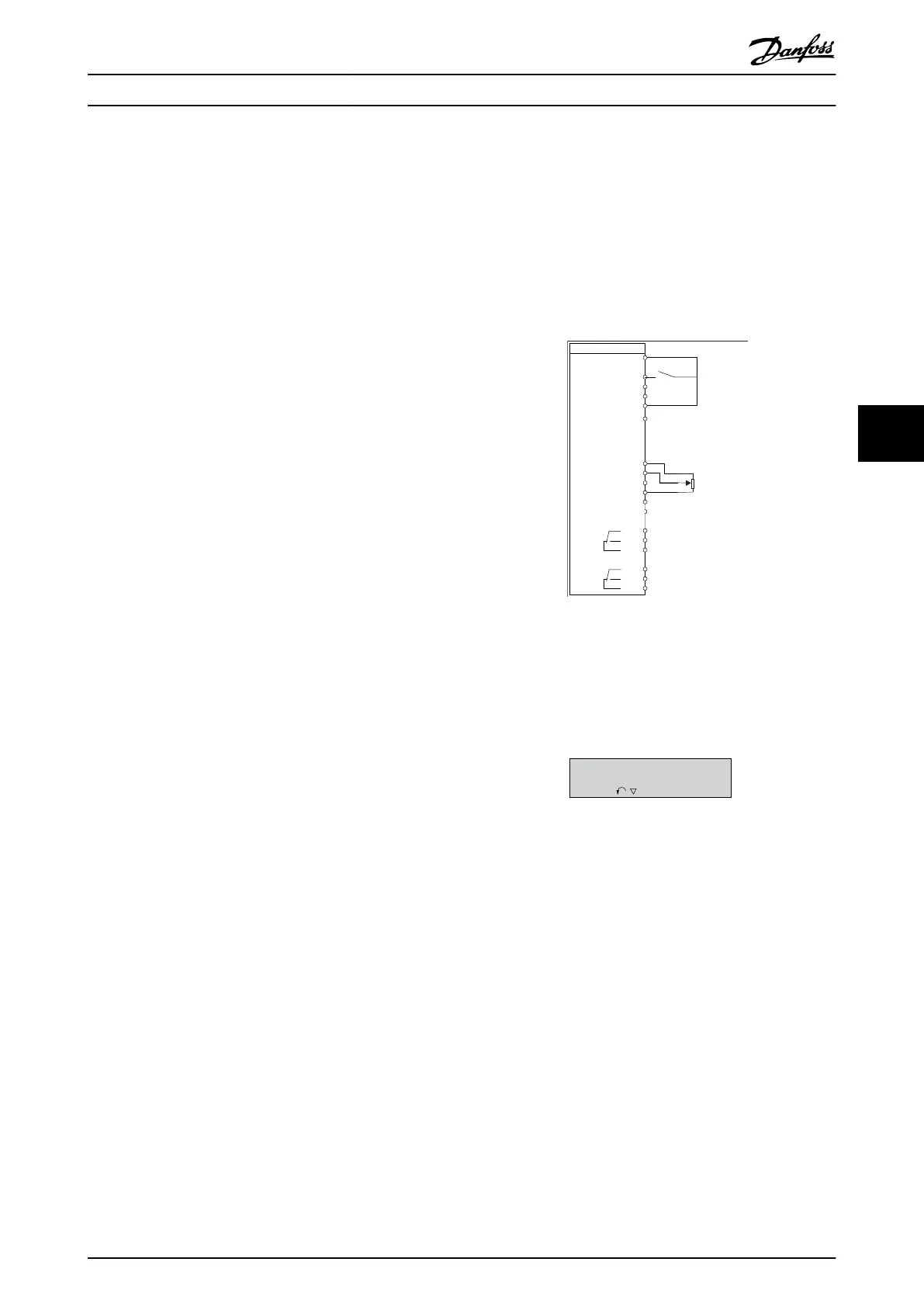

Illustration 6.2 Set-up of the Frequency Converter
The wizard is initially shown after power up until any
parameter has been changed. The wizard can always be
accessed again through the Quick Menu. Press [OK] to start
the wizard. Press [Back] to return to the status screen.
130BB629.10
Press OK to start Wizard
Push Back to skip it
Setup 1
Illustration 6.3 Wizard
How to Programme
VLT
®
HVAC Basic Drive FC 101 Design Guide
MG18C502 - Rev. 2013-09-06 69
6 6
