3.1.13 IP21/IP41/ TYPE1 Enclosure Kit
IP21/IP41 top/ TYPE 1 is an optional enclosure element
available for IP20 compact units, enclosure size A2-A3,
B3+B4 and C3+C4.
If the enclosure kit is used, an IP20 unit is upgraded to
comply with enclosure IP21/41 top/TYPE 1.
The IP41 top can be applied to all standard IP20 VLT
®
HVAC Drive variants.
3.1.14 IP21/Type 1 Enclosure Kit
A
B
C
D
E

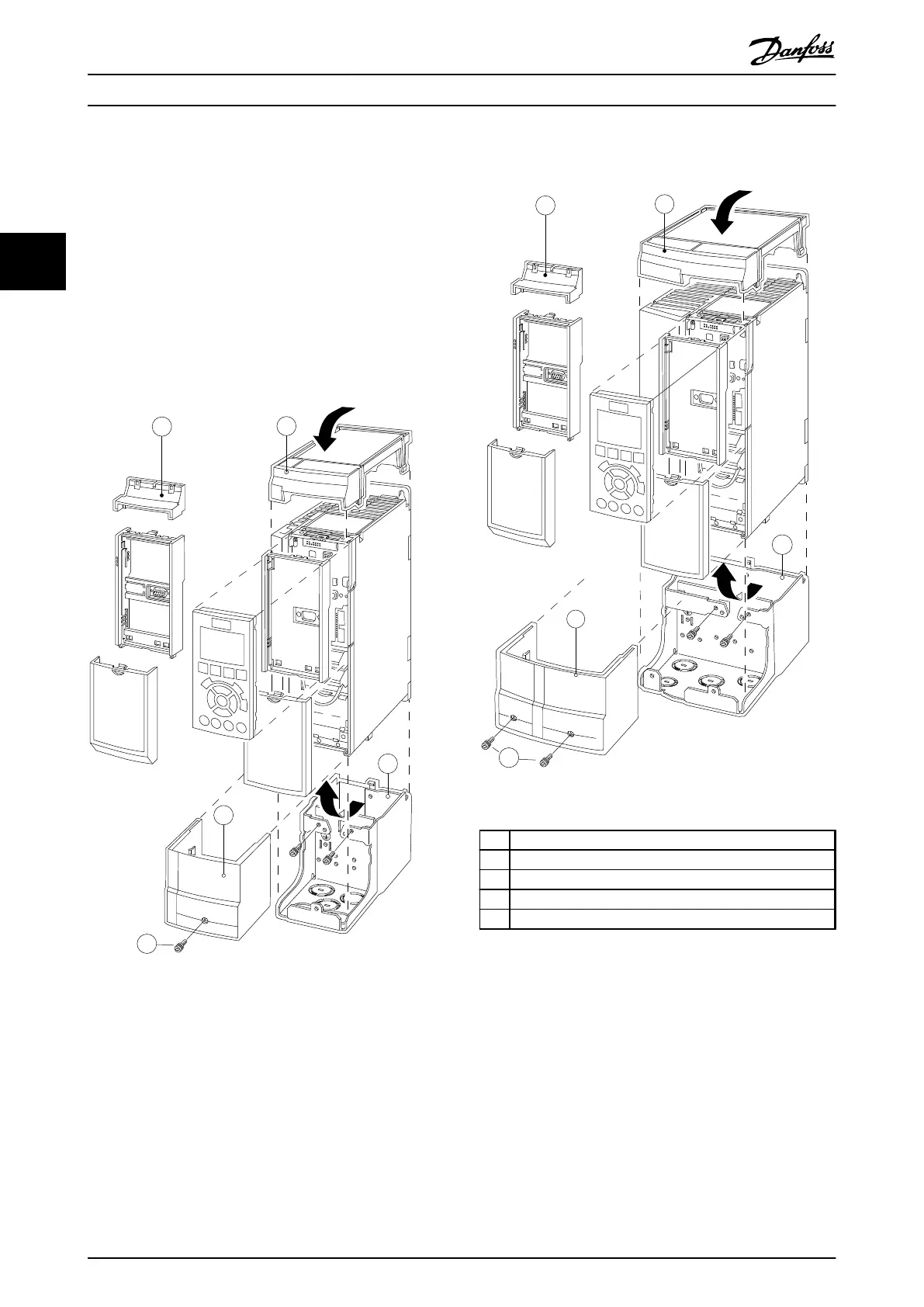

130BT323.10
Illustration 3.19 Enclosure Type A2
B
A
E
C
D
130BT324.10
Illustration 3.20 Enclosure Type A3
A
Top cover
B Brim
C Base part
D Base cover
E Screw(s)
Table 3.12 Legend to Illustration 3.19 and Illustration 3.20
Place the top cover as shown. If an A or B option is used
the brim must be fitted to cover the top inlet. Place the
base part C at the bottom of the frequency converter and
use the clamps from the accessory bag to correctly fasten
the cables. Holes for cable glands:
Size A2: 2x M25 and 3xM32
Size A3: 3xM25 and 3xM32
Selection
Design Guide
62 Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02
