Danfoss FC 102 Design Guide

7 Application Examples
7.1 Application Examples

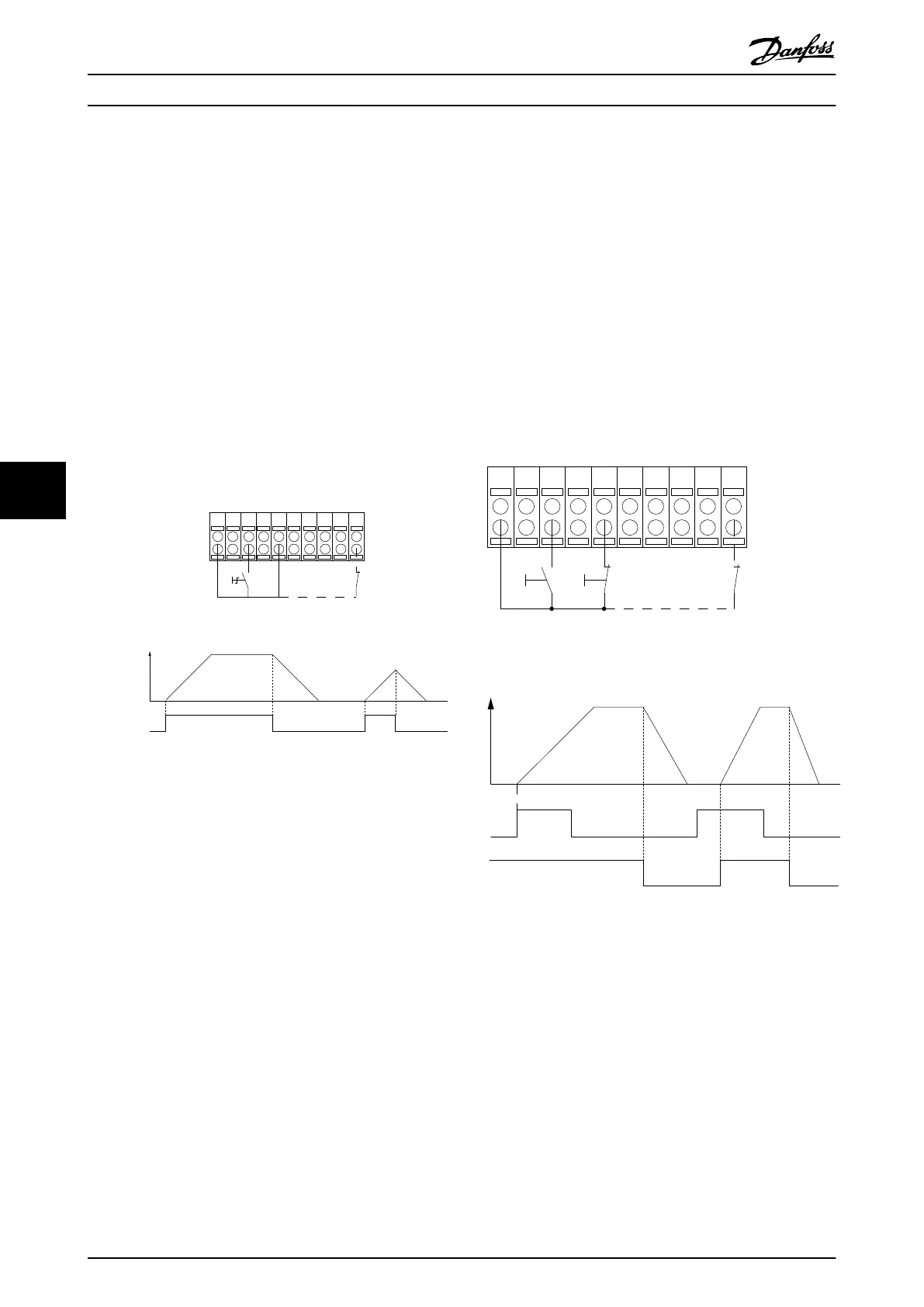

7.1.1 Start/Stop
Terminal 18 = start/stop 5-10 Terminal 18 Digital Input [8]
Start
Terminal 27 = No operation 5-12 Terminal 27 Digital Input
[0] No operation (Default coast inverse
5-10 Terminal 18 Digital Input = Start (default)
5-12 Terminal 27 Digital Input = coast inverse
(default)
12 13 18 37
130BA155.12
322719 29 33 20
P 5-12 [0] P 5-10 [8]
Start/Stop
+24V
Speed
Safe Stop
Start/Stop
[18]
Illustration 7.1 Terminal 37: Available only with Safe Stop
Function
7.1.2
Pulse Start/Stop
Terminal 18 = start/stop 5-10 Terminal 18 Digital Input [9]
Latched start
Terminal 27= Stop 5-12 Terminal 27 Digital Input [6] Stop
inverse
5-10 Terminal 18 Digital Input = Latched start
5-12 Terminal 27 Digital Input = Stop inverse
12 13 18 37
130BA156.12
322719 29 33 20
P 5 - 12 [6] P 5 - 10[9]
+24V
Speed
Start Stop inverse Safe Stop
Start (18)
Start (27)
Illustration 7.2 Terminal 37: Available Only with Safe Torque
Off Function
Application Examples Design Guide
122 Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02
77
