Danfoss PVED-CLS User Manual

© Danfoss | August 2018 AQ00000211 | 79
ENGINEERING TOMORROW

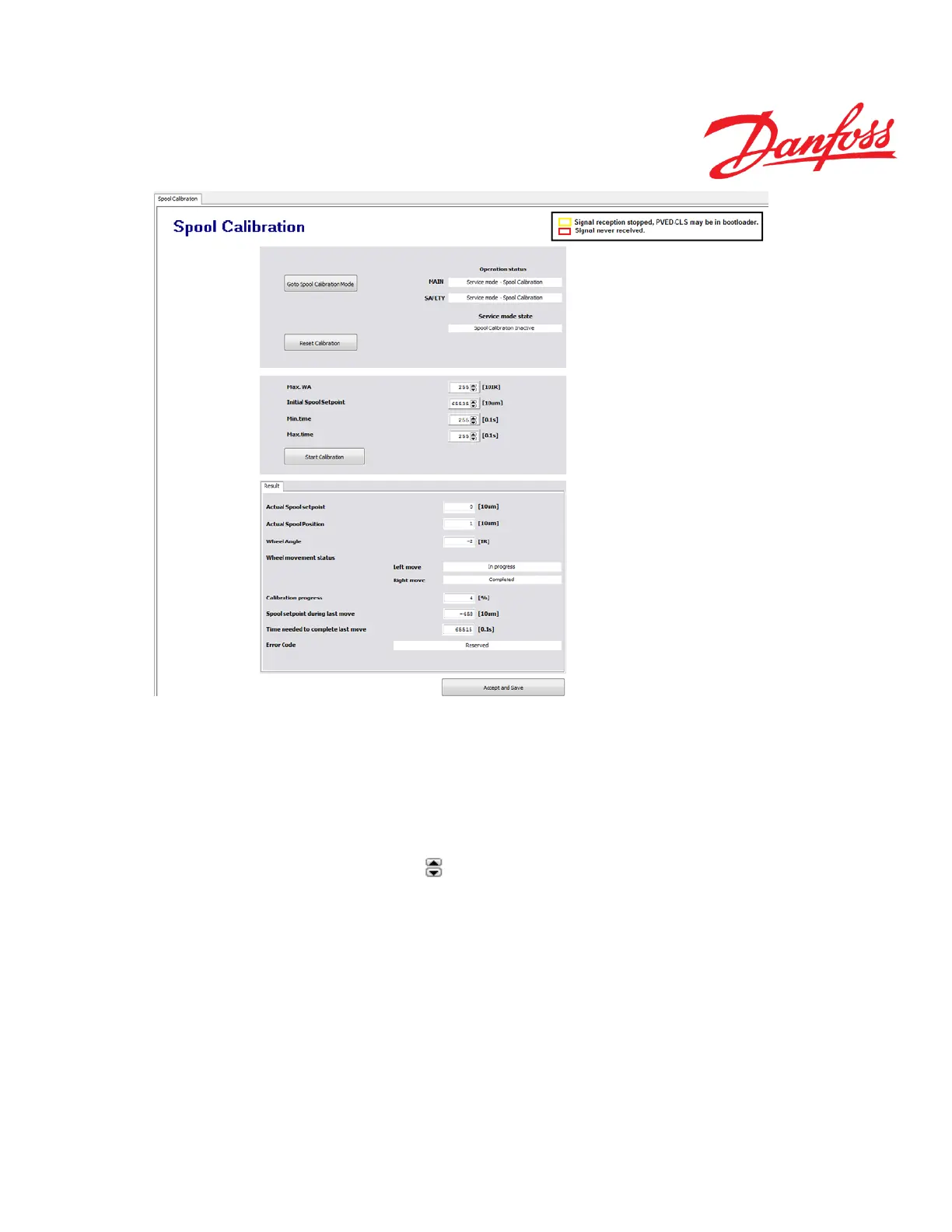

Figure 37
The 4 parameters listed below have the following values per default (in hex 0xFF, 0xFFFF, 0xFF, 0xFF):
• “Max. WA” = 255 [10IR]
• “Initial Spool Set-point” = 65535 [10µm]
• “Min. time” = 255 [0.1s]
• “Max. time” = 255 [0.1s]
The above only means that the default values from the EEPROM are used. If these 4 parameters are changed (by typing a
different value or using the increase/decrease-buttons “ ”), the new values will be used for the auto-calibration function.
