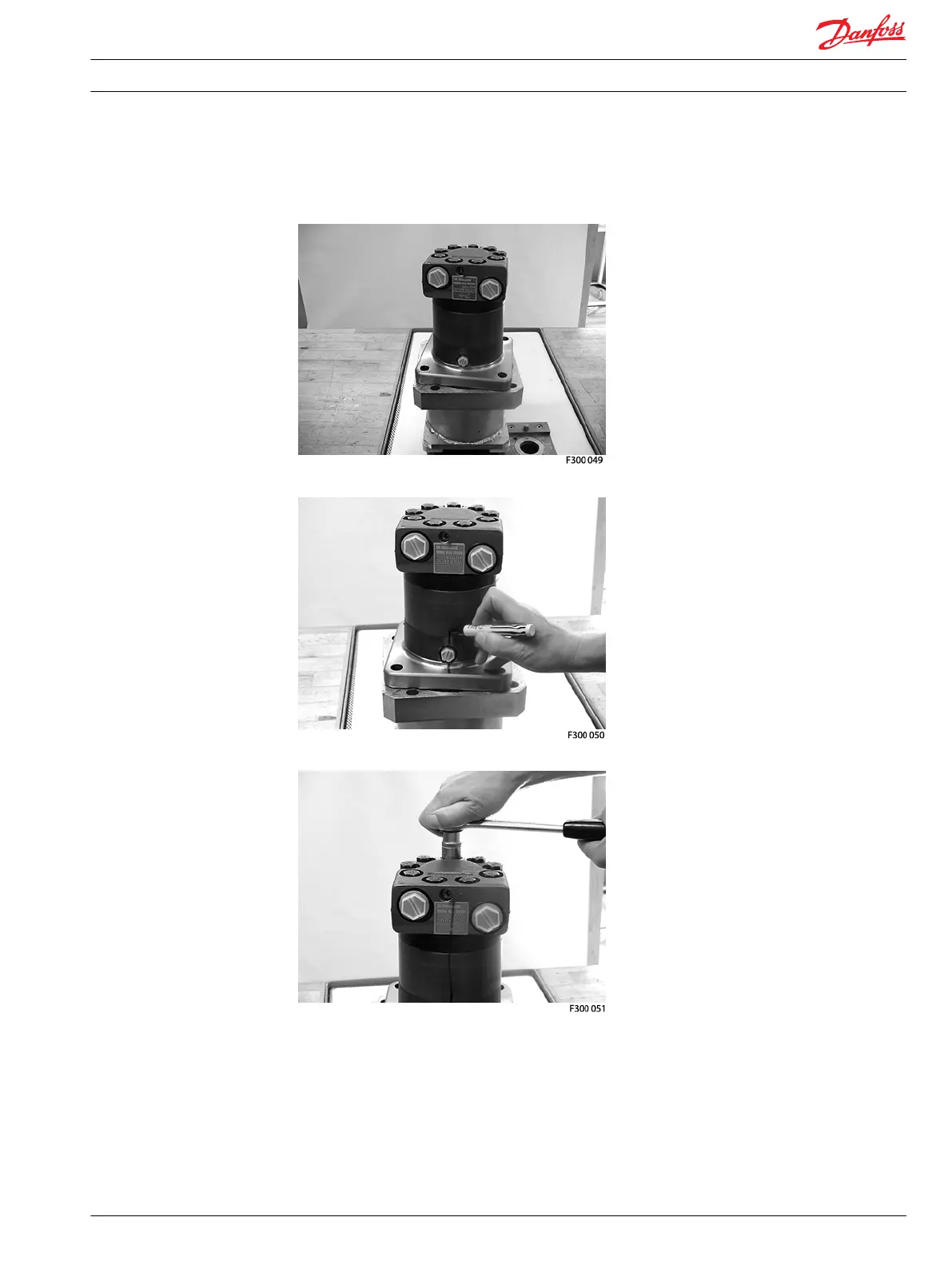

TMT disassembly
1. Fix motor in holding tool SJ 150B9000-2.
2. To ensure correct assembly/location of motor parts, provide identification marks.
3. With an 18 mm key, loosen the nine bolts (37 and 38) in end cover.
4. In standard TMT, the bolts have different lengths: three short ones and six long ones. The three short
bolts keep the motor part assembled, whereas the six long bolts keep the motor part fixed to the
bearing housing.
Repair Instruction
Orbital Motors TMT, TMT FL and TMT W FL
TMT Disassembly
520L0351 • Rev EA • Feb 2014 31
