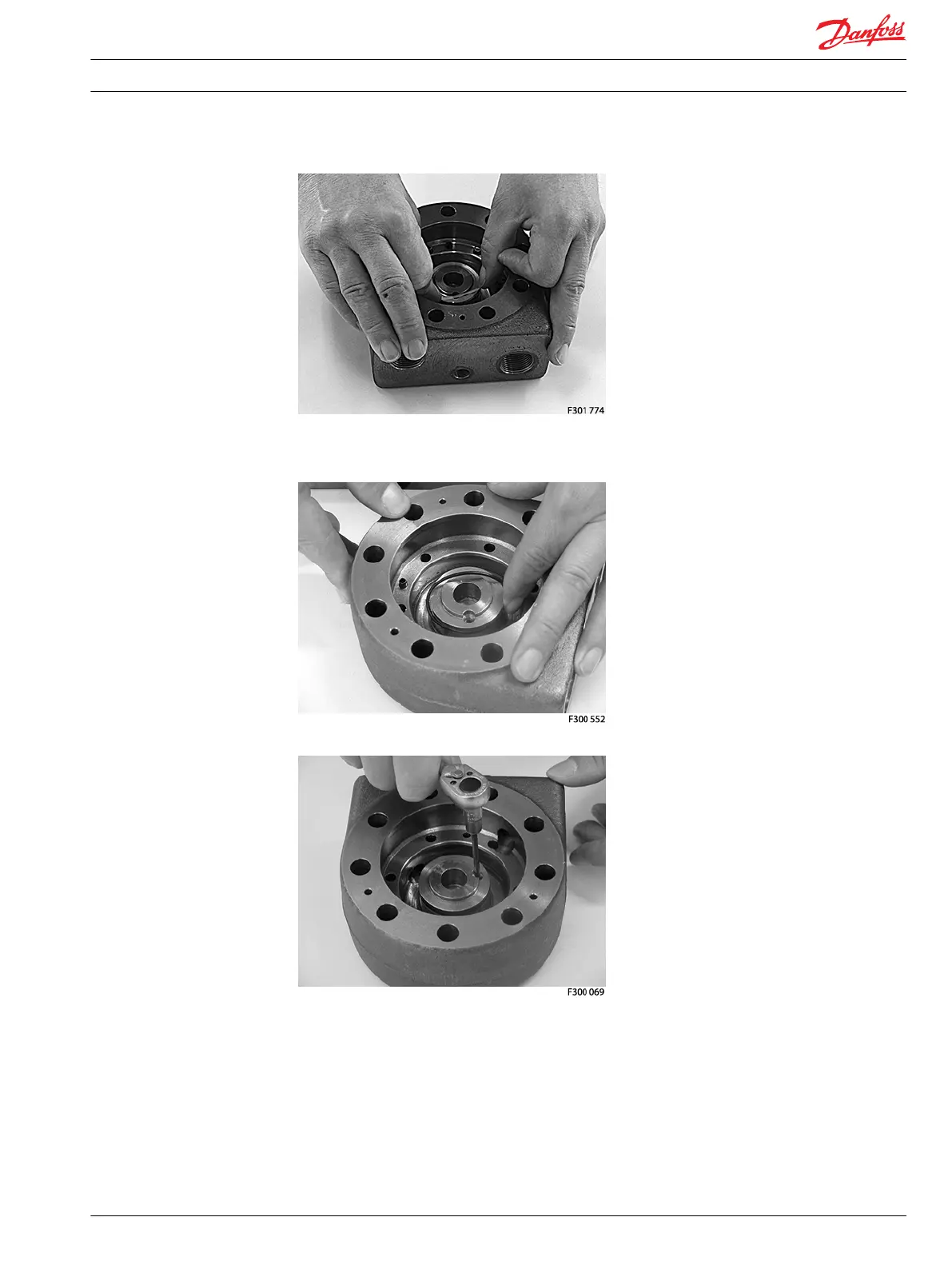

Assembly of end cover
1. Mount O-ring (25) beneath the backup ring.
2. Mount orifice (39) in end cover and tighten with a torque of 6 ±1.5 Nm [53.10 ±13.28 lbf·in]
3. Install the six springs (26) in end cover.
Repair Instruction
Orbital Motors TMT, TMT FL and TMT W FL
Disassembly and Assembly of the End Cover
520L0351 • Rev EA • Feb 2014 41
