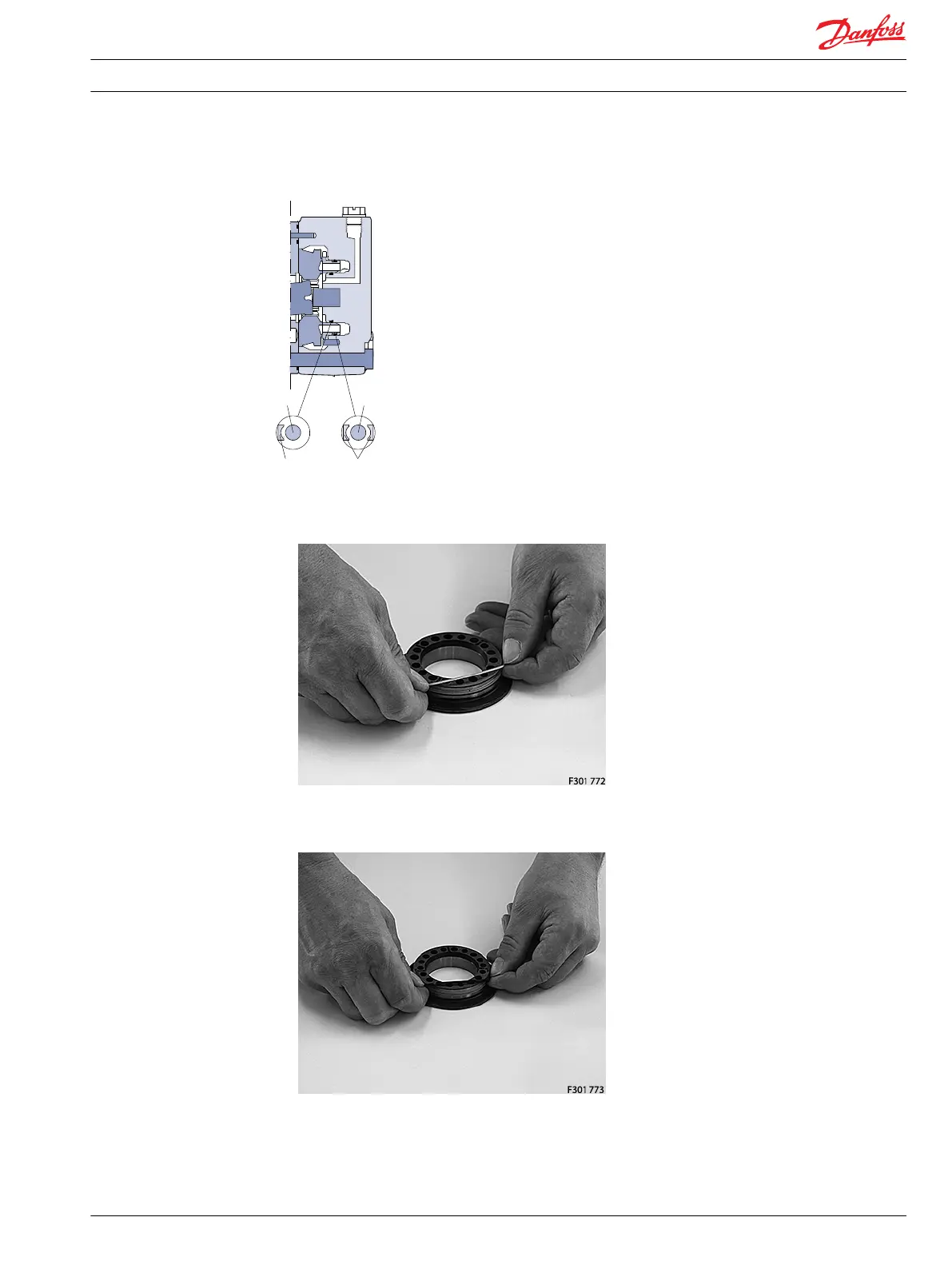

Installation of Seals on Balance Plate
Mount the two backup rings (22). Note that the backup rings are moulded and must therefore be
correctly positioned. Be sure to make the radius of both backup rings face the O-ring.
Disassembly of Seals in End Cover
1. After installing the backup rings, mount the O-ring (23) in between these.
2. Remove O-ring (25) from end cover.
Repair Instruction
Orbital Motors TMT, TMT FL and TMT W FL
Disassembly and Assembly of the End Cover
520L0351 • Rev EA • Feb 2014 39
