Disassembly of TMT FL (Brake Motor)
To disassemble TMT FL follow the same instructions as for TMT until you get to the brake part.
Fix TMT FL motor in holding tool SJ 151B9000-2 and holding plate SJ 151B5000-4.
Fix TMTW FL motor in holding tool 151Z9002.
Note that in the brake motor, all bolts are equally long.

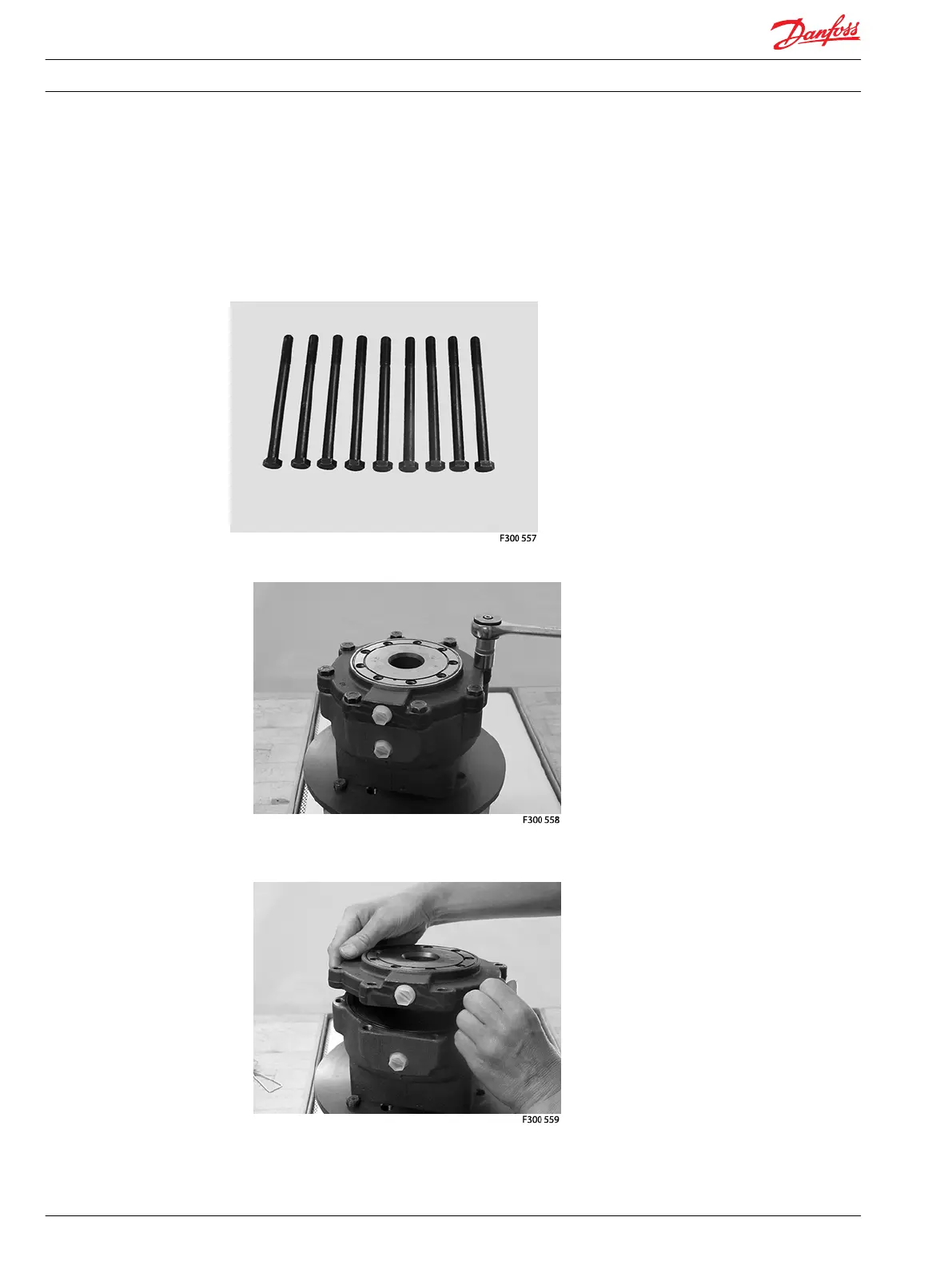

1. With a 17 mm key, untighten the eight bolts (61).
Note that the disc spring is compressed against the motor flange.
2. Remove motor flange (59).
3. Remove disc spring (54).
Repair Instruction
Orbital Motors TMT, TMT FL and TMT W FL
Disassembly of TMT FL (Brake Motor)
48 520L0351 • Rev EA • Feb 2014
