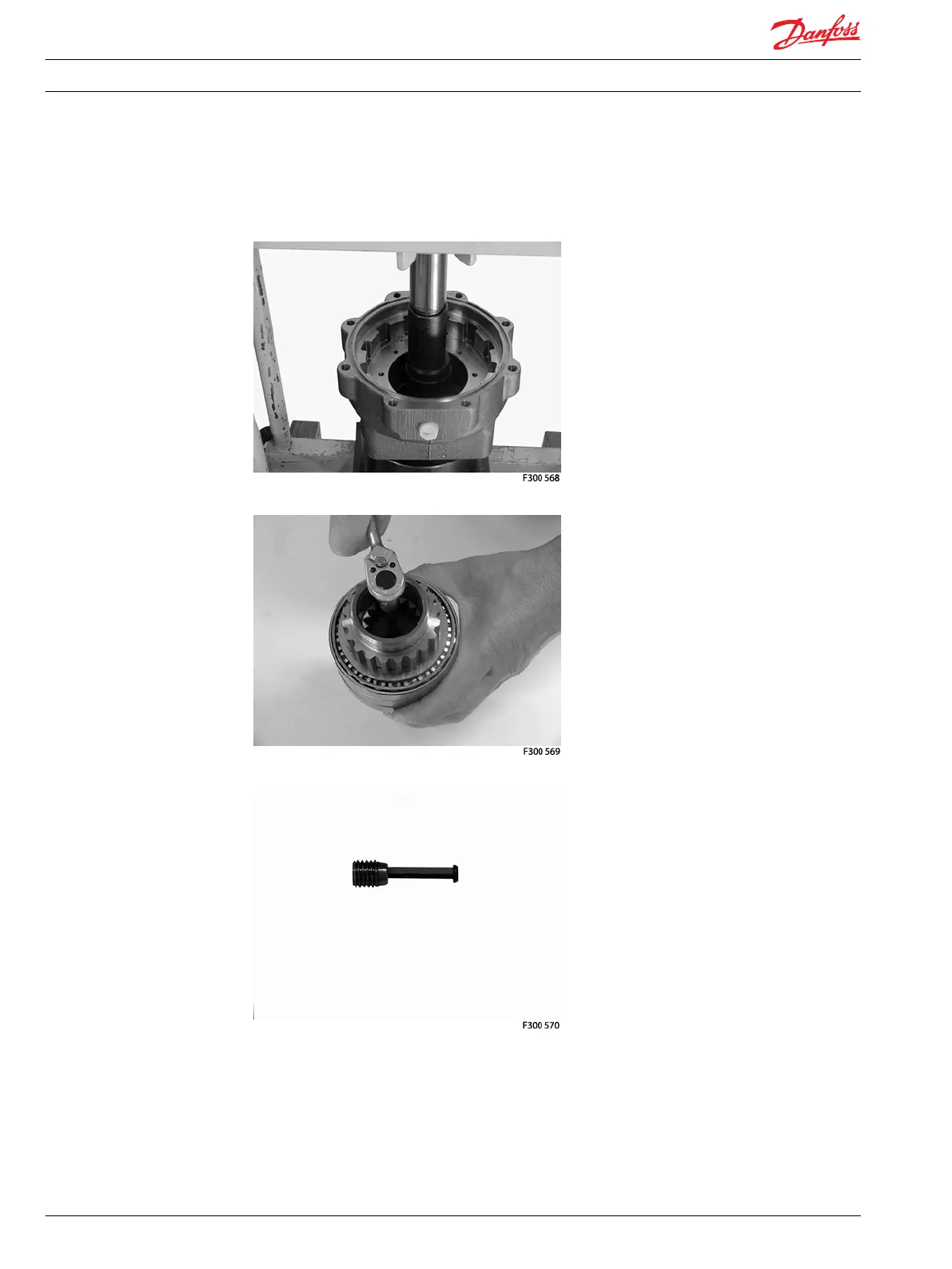

Assembly of TMT FL
1. With tool SJ 151B5000-1, press a new shaft seal into bearing housing. Grease shaft seal with fat before
installation.
2. Remove filter (48) from output shaft.
3. Clean filter, refit onto the shaft and tighten with a torque of 30 ±5 Nm [265.52 ±44.25 lbf·in].
4. Fix the bearing housing in the hydraulic press and use tool SJ 151B9000-11/13 to press output shaft
with bearings into the housing.
Repair Instruction
Orbital Motors TMT, TMT FL and TMT W FL
Assembly of TMT FL (Brake Motor)
52 520L0351 • Rev EA • Feb 2014
