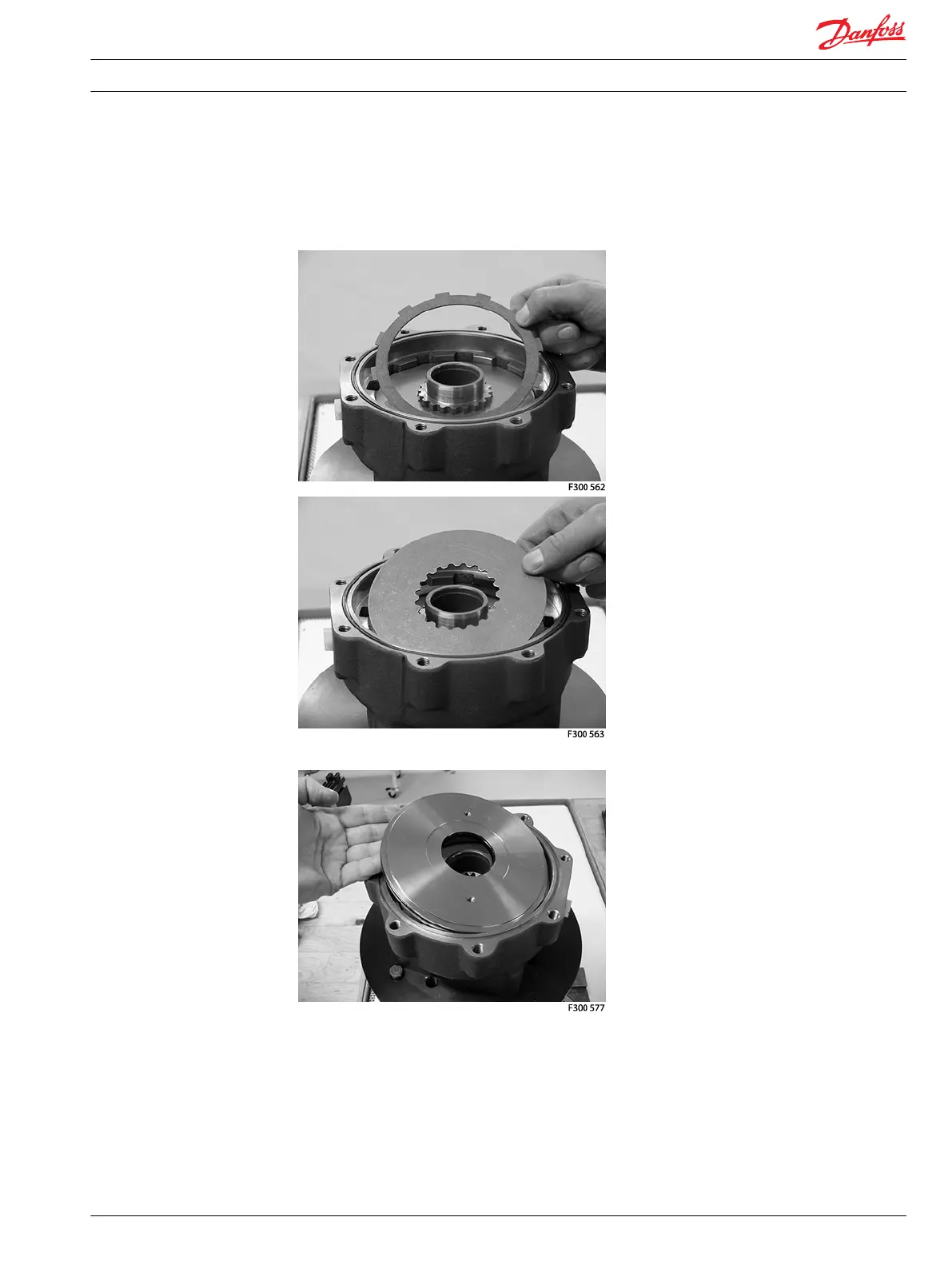

Installation of braking part
1. Install the multiple disc brake, starting with the external multiple discs.
Install seven external (51) and six internal (50) multiple discs.
2. Install the brake piston and remember a new O-ring (52).
3. Install the disc spring (54).
Repair Instruction
Orbital Motors TMT, TMT FL and TMT W FL
Installation of Braking Part
520L0351 • Rev EA • Feb 2014 57
