Danfoss TMT W FL - Disassembly and Assembly of the End Cover; Disassembly of the end cover

Disassembly of the end cover

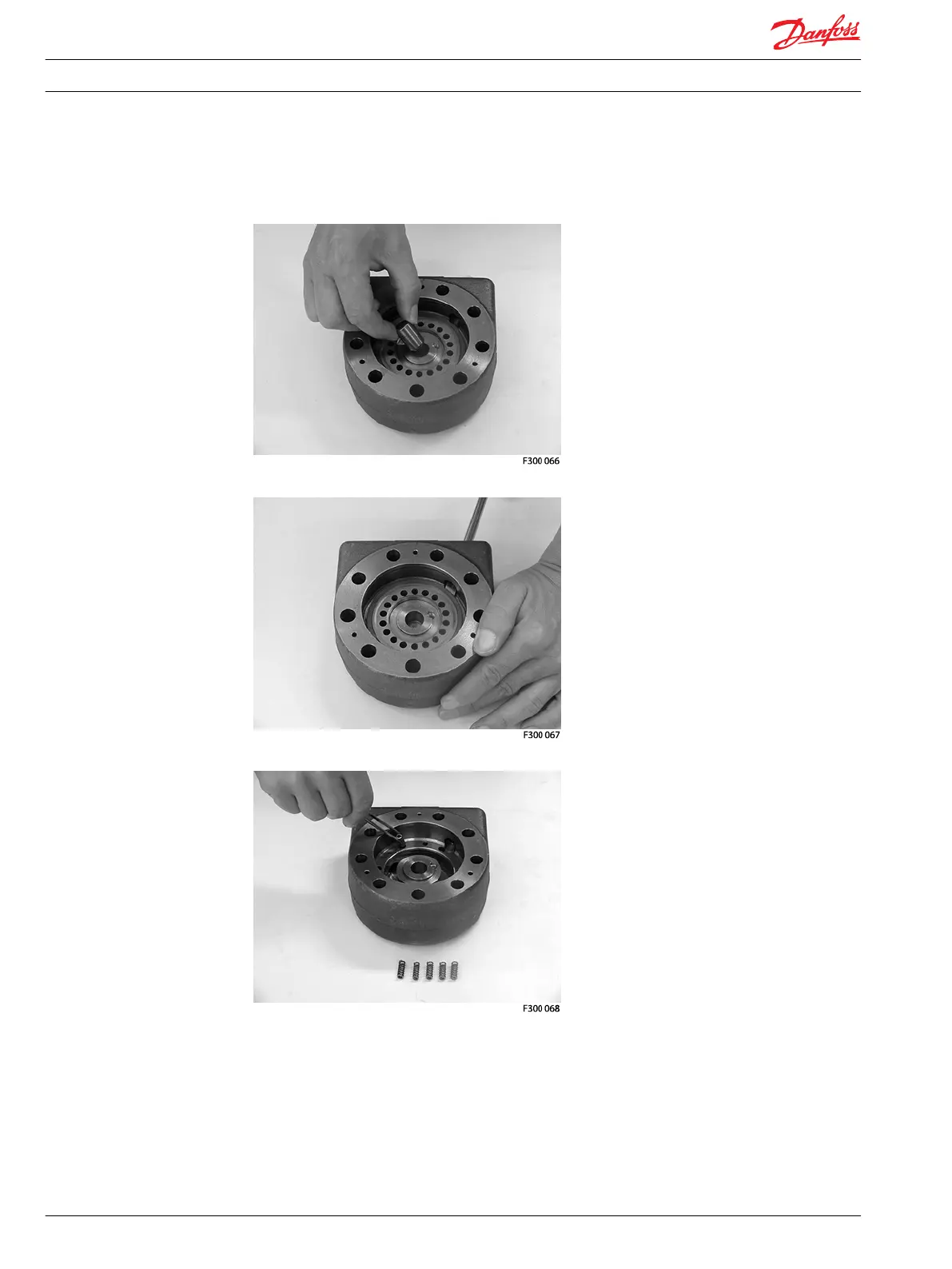

1. Remove spacer (28) from end cover.
2. With a screwdriver through the connection port, separate balance plate (21) from end cover.
3. Remove springs (26).
4. With an Allen key (3 mm), remove orifice (39).
Repair Instruction
Orbital Motors TMT, TMT FL and TMT W FL
Disassembly and Assembly of the End Cover
