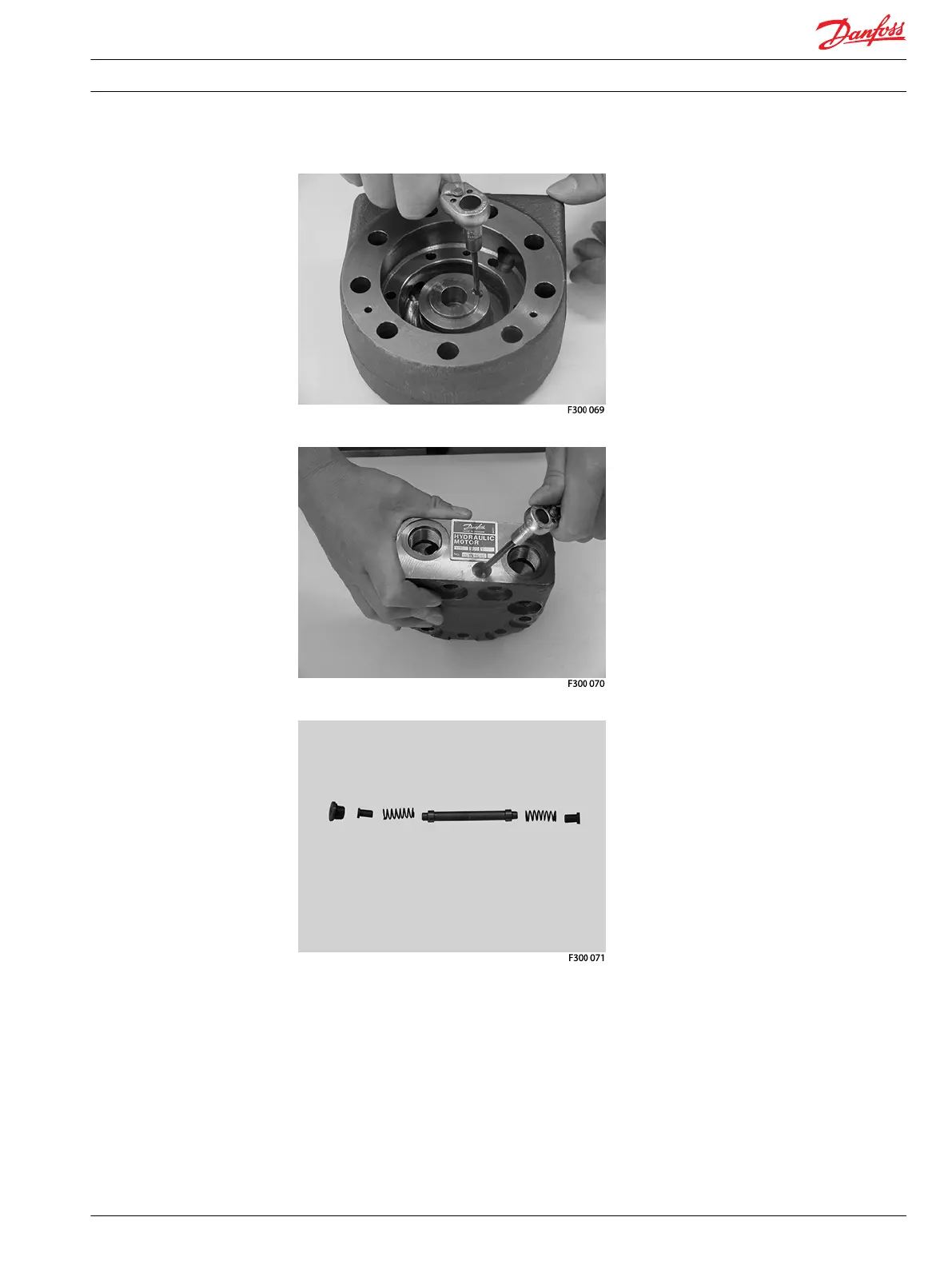

5. With an Allen key (5 mm), remove plug (36) and flushing valve parts from flushing valve.
6. Flushing valve parts:
7. Install flushing valve and tighten plug with a torque of
12.5 ±1.5 Nm [110.63 ±13.28 lbf·in].
Repair Instruction
Orbital Motors TMT, TMT FL and TMT W FL
Disassembly and Assembly of the End Cover
